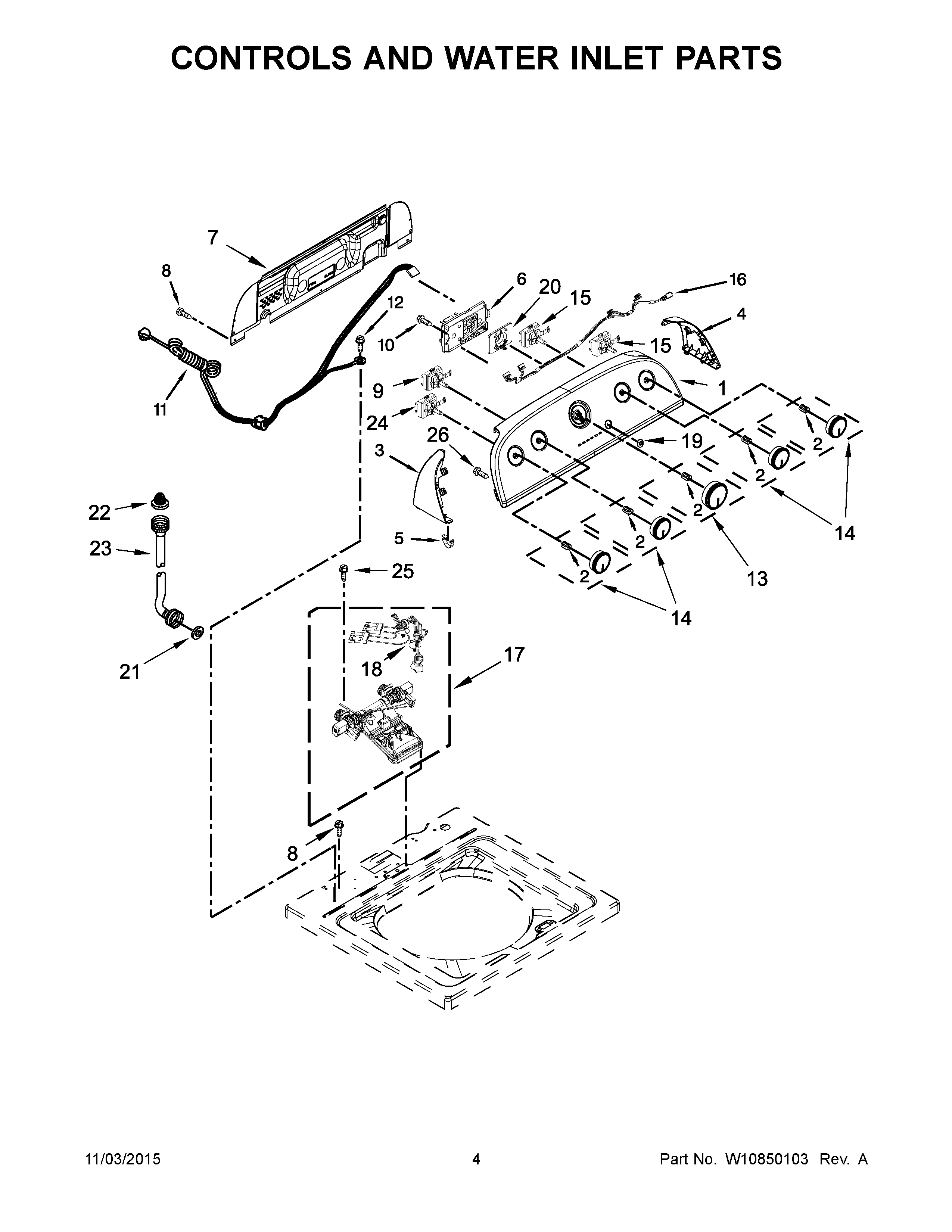

7MWTW1935DW1 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WPW10520782 Whirlpool Panel
4	WPW10520780 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W10723771 Whirlpool Electronic Control Board
7	W10552335 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10285512 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	WPW10576635 Whirlpool Knob Assembly
14	WPW10576637 Whirlpool Knob
15	WPW10285511 Whirlpool Cycle Switch
16	W10579238 Whirlpool Wire Harness
17	WPW10683653 Whirlpool Valve Assembly
18	W10876654 Whirlpool Wire Harness
19	W11084340 Whirlpool Push Button
20	WPW10596298 Whirlpool Push Button
22	WP16123 Whirlpool Washer
23	WP89503 Whirlpool Washer Fill Hose
24	WPW10285518 Whirlpool Cycle Switch
25	WPW10213953 Whirlpool Screw
26	WP3400818 Whirlpool Screw
