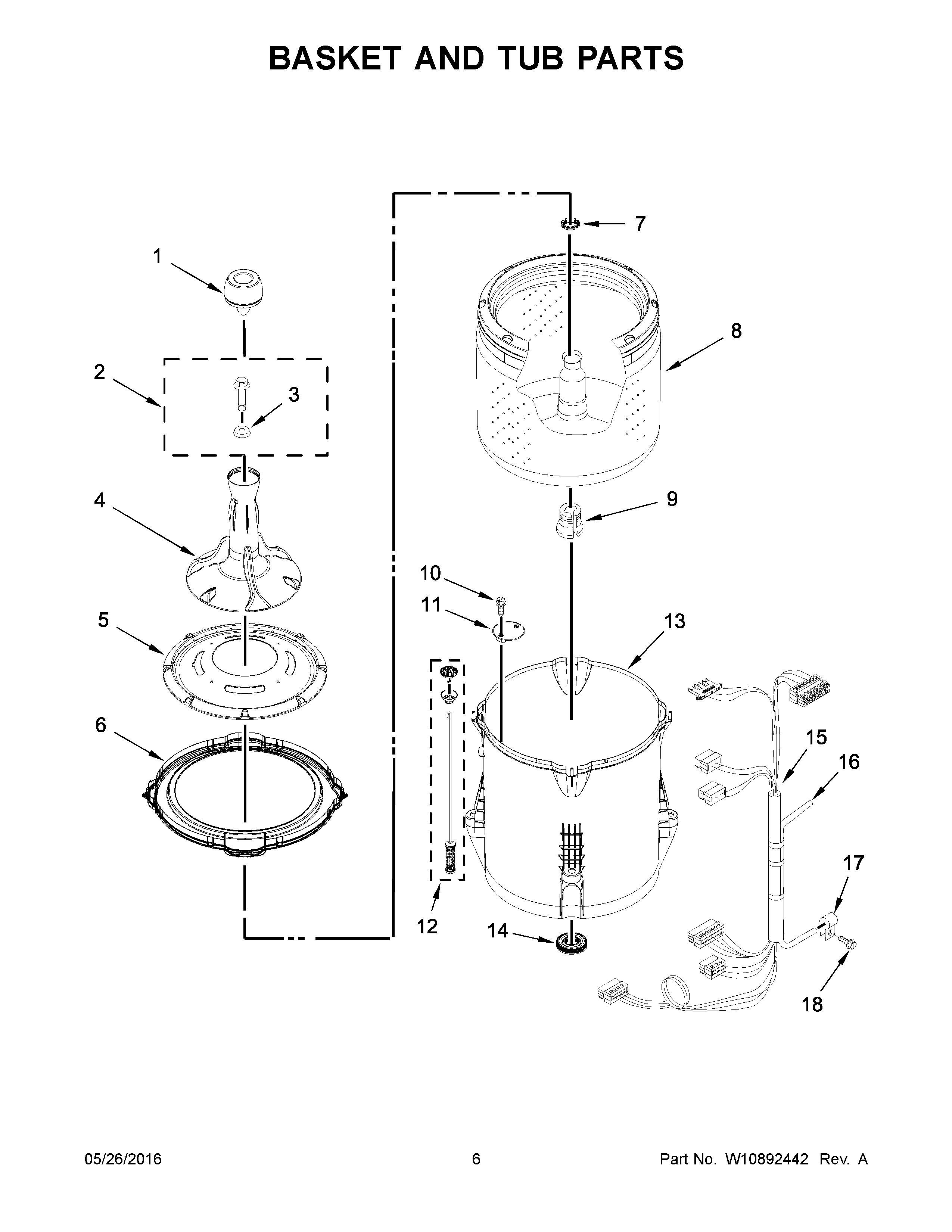

7MWTW1950EW1 04 – BASKET AND TUB PARTS

7MWTW1950EW1 04 – BASKET AND TUB PARTS

Written by

in

7MWTW1950EW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11027964 Whirlpool Dispenser
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4W11205049 Whirlpool Agitator
5W11085570 Whirlpool Shield
6WPW10531289 Whirlpool Tub Ring
7WP21366 Whirlpool Spanner Nut
8W10554251 Whirlpool Basket
9WP389140 Whirlpool Drive Block or Bell
10WP8533928 Whirlpool Refrigerator Screw
11WPW10215093 Whirlpool Filter
12W10780045 Whirlpool Suspension Rod
13W10371566 Whirlpool Outer Tub
14W10324647 Whirlpool Seal Tub
15W10678684 Whirlpool Wire Harness
16WP353244 Whirlpool Hose
17W10005430 Whirlpool Clamp
18WPW10109200 Whirlpool Screw
