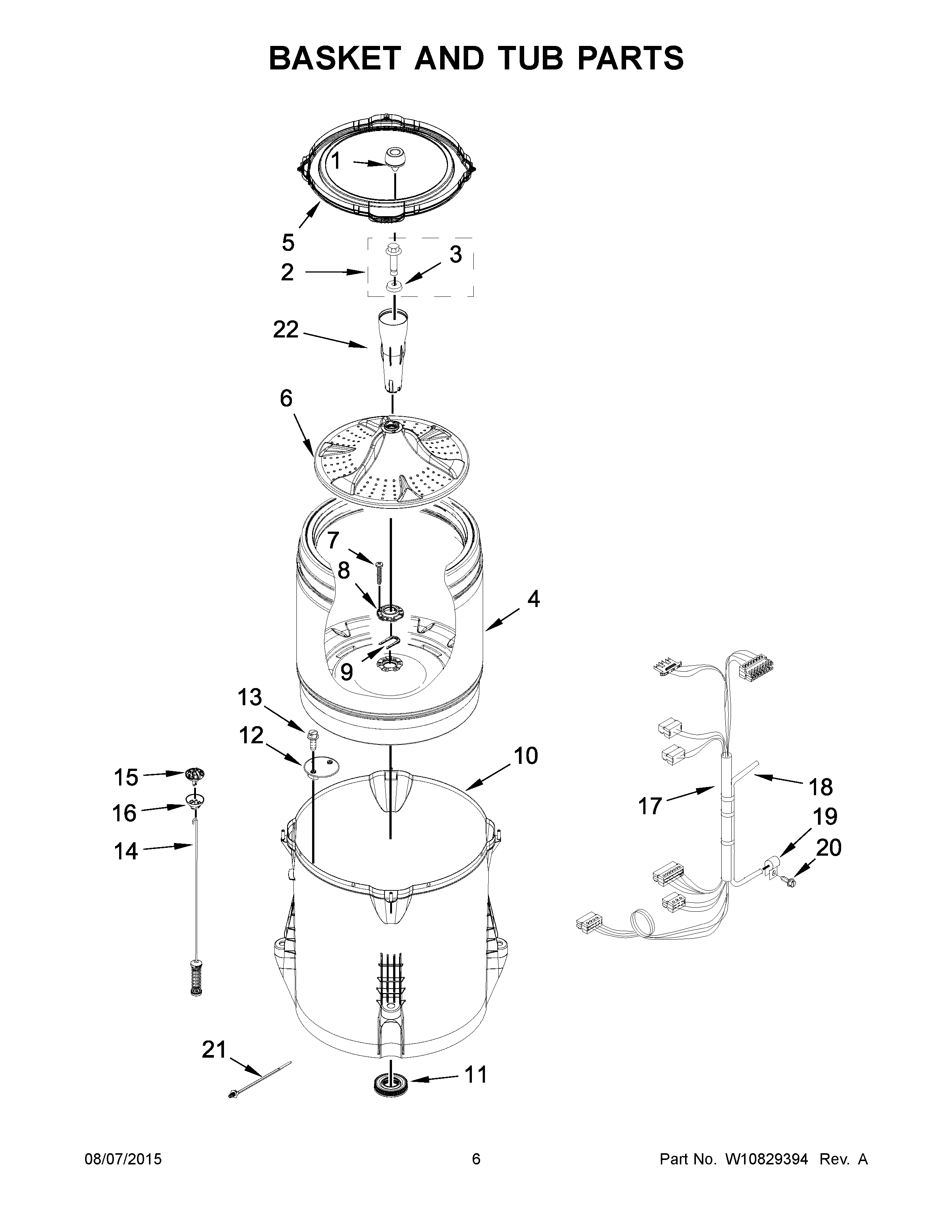

7MWTW4915EW0 04 – BASKET AND TUB PARTS

7MWTW4915EW0 04 – BASKET AND TUB PARTS

Written by

in

7MWTW4915EW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4W10521298 Whirlpool Basket
5WPW10556325 Whirlpool Tub Ring
6W10919191 Whirlpool Washer Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10W10324648 Whirlpool Outer Tub
11W10324647 Whirlpool Seal Tub
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14W10780044 Whirlpool Suspension Assembly
15W10780046 Whirlpool Suspension Rod Kit
16W10440729 Whirlpool Suspension
17W10858334 Whirlpool Wire Harness
18WP353244 Whirlpool Hose
19W10005430 Whirlpool Clamp
20WPW10109200 Whirlpool Screw
21WPW10298887 Whirlpool Wire Tie Assembly
22W10836692 Whirlpool Agitator Upper
