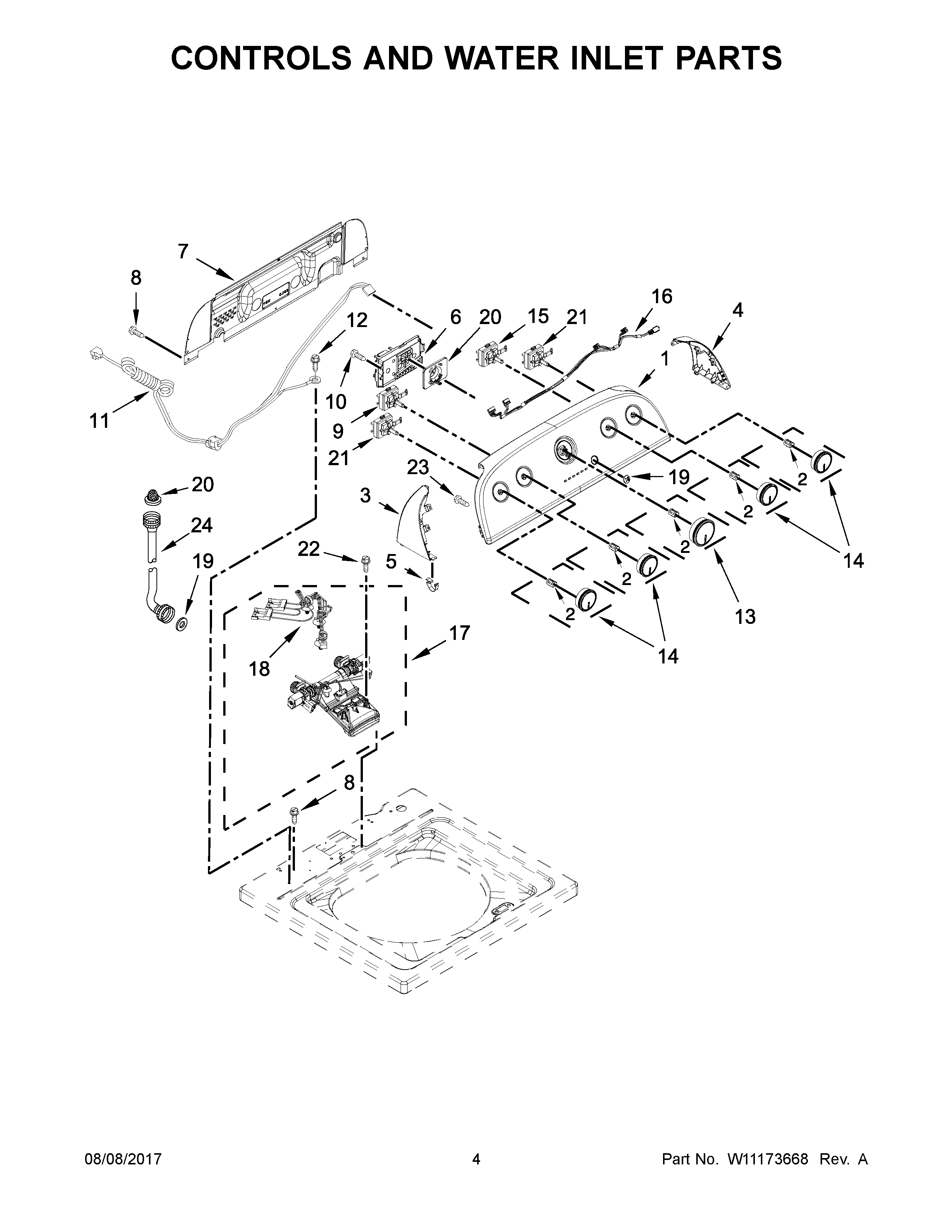

7MWTW4915EW1 03 – CONTROLS AND WATER INLET PARTS

7MWTW4915EW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

7MWTW4915EW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10802387 Whirlpool Electronic Control Board
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10285518 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18W10876654 Whirlpool Wire Harness
19WP16123 Whirlpool Washer
20285452A Whirlpool Hose Seal and Screen
21WPW10285511 Whirlpool Cycle Switch
22WPW10213953 Whirlpool Screw
23WP3400818 Whirlpool Screw
24WP89503 Whirlpool Washer Fill Hose
