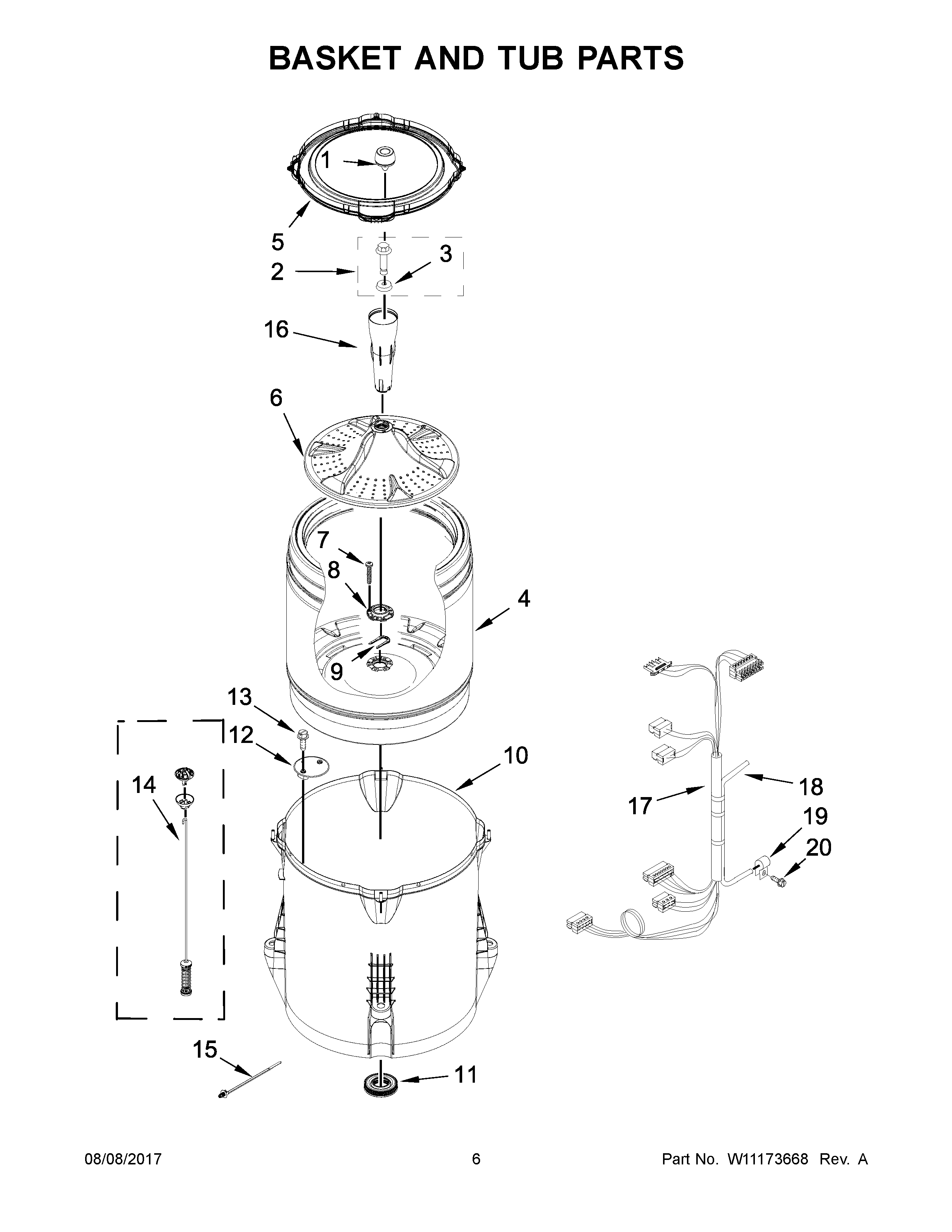

7MWTW4915EW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER, FABRIC SOFTENER
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	W10521298 Whirlpool Basket
5	WPW10556325 Whirlpool Tub Ring
6	W10919191 Whirlpool Washer Washplate
7	WP8533953 Whirlpool Screw
8	W10528947 Whirlpool Washer Drive Hub Assembly
9	RETAINER
10	W10324648 Whirlpool Outer Tub
11	W10324647 Whirlpool Seal Tub
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
14	W11682068 Whirlpool Suspension Assembly
15	WPW10298887 Whirlpool Wire Tie Assembly
16	W10836692 Whirlpool Agitator Upper
17	W10858334 Whirlpool Wire Harness
18	WP353244 Whirlpool Hose
19	W10005430 Whirlpool Clamp
20	WPW10109200 Whirlpool Screw
