7MWTW4925EW1 02 – TOP AND CABINET PARTS

7MWTW4925EW1 02 – TOP AND CABINET PARTS

Written by

in

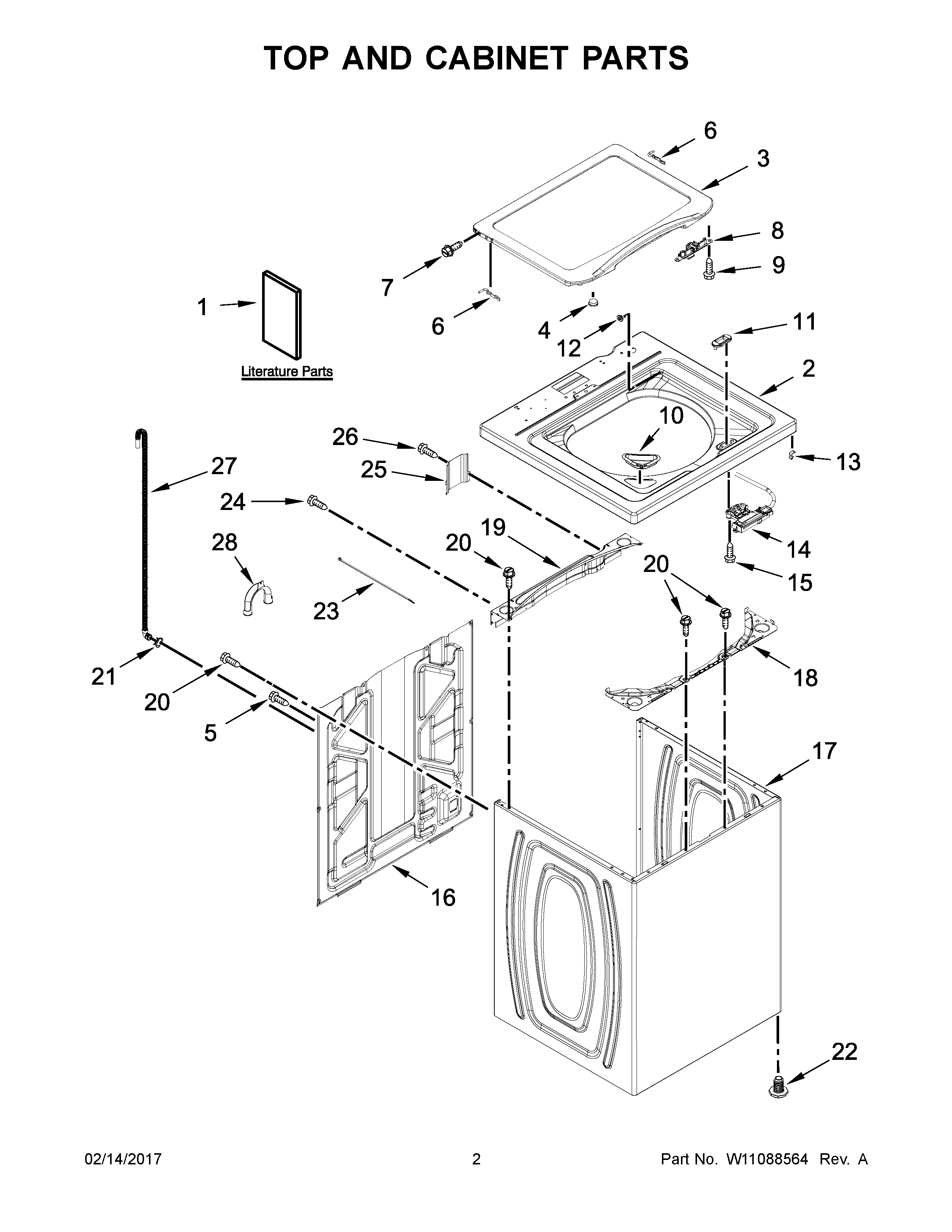

7MWTW4925EW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AOWNERS MANUAL
1CENERGY GUIDE
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
2TOP (WHITE)
3W10551267 Whirlpool Lid
4W10181289 Whirlpool Bumper Assembly
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8W10581478 Whirlpool Strike Assembly
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15WP8281163 Whirlpool Refrigerator Screw
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WP356138 Whirlpool Hose Clamp
22W11213957 Whirlpool Dishwasher Leveling Leg
23WPW10339879 Whirlpool Wire Tie
24WP489128 Whirlpool Refrigerator Screw
25W10676061 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27W11244231 Whirlpool Hose
28WPW10280024 Whirlpool Retainer
