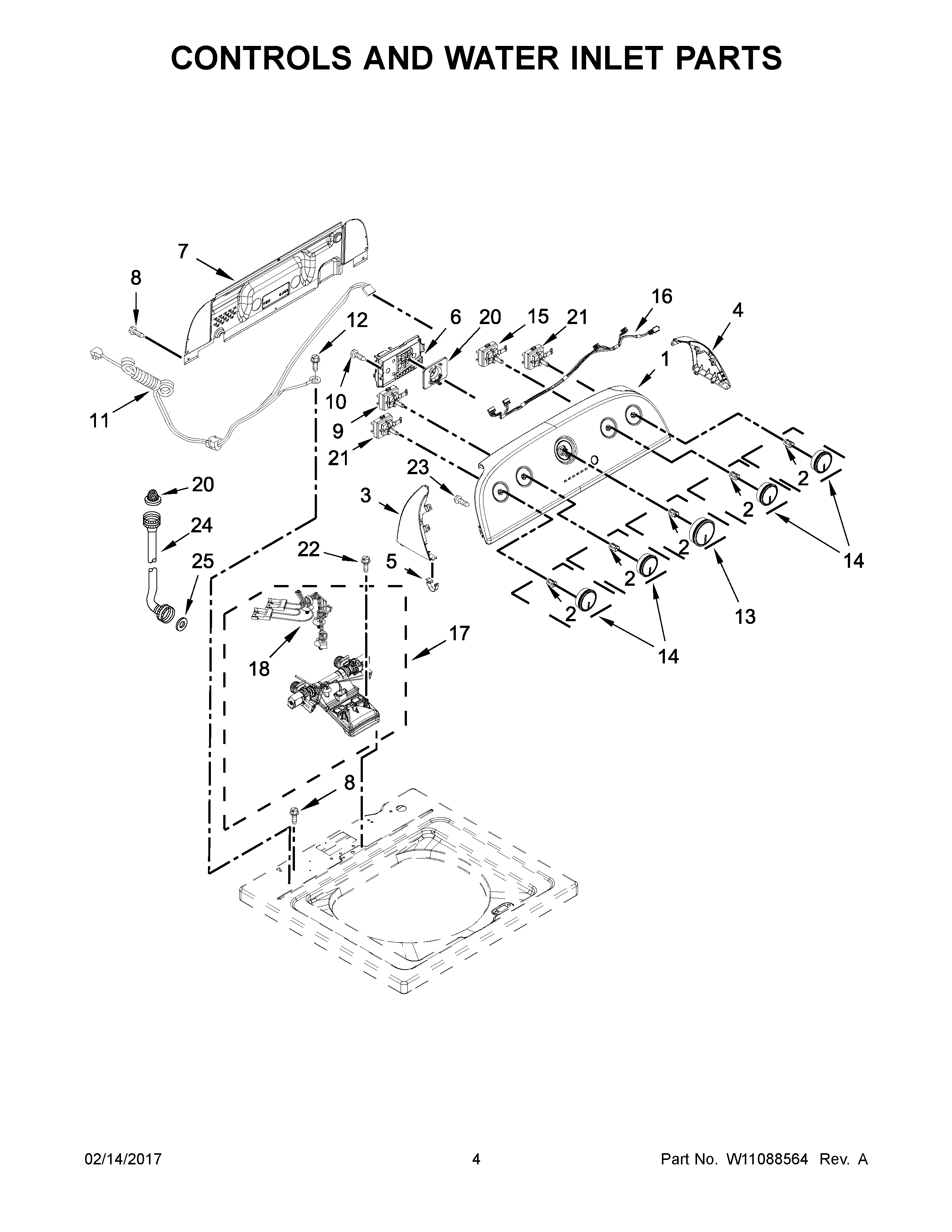

7MWTW4925EW1 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WPW10520782 Whirlpool Panel
4	WPW10520780 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W10802387 Whirlpool Electronic Control Board
7	W10552335 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10285518 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W10756270 Whirlpool Dryer Timer Knob
15	WPW10285512 Whirlpool Cycle Switch
16	W11211519 Whirlpool Wire Harness
17	WPW10683653 Whirlpool Valve Assembly
18	W10876654 Whirlpool Wire Harness
19	W11084340 Whirlpool Push Button
20	285452A Whirlpool Hose Seal and Screen
21	WPW10285511 Whirlpool Cycle Switch
22	WPW10213953 Whirlpool Screw
23	WP3400818 Whirlpool Screw
24	WP89503 Whirlpool Washer Fill Hose
25	WP16123 Whirlpool Washer
