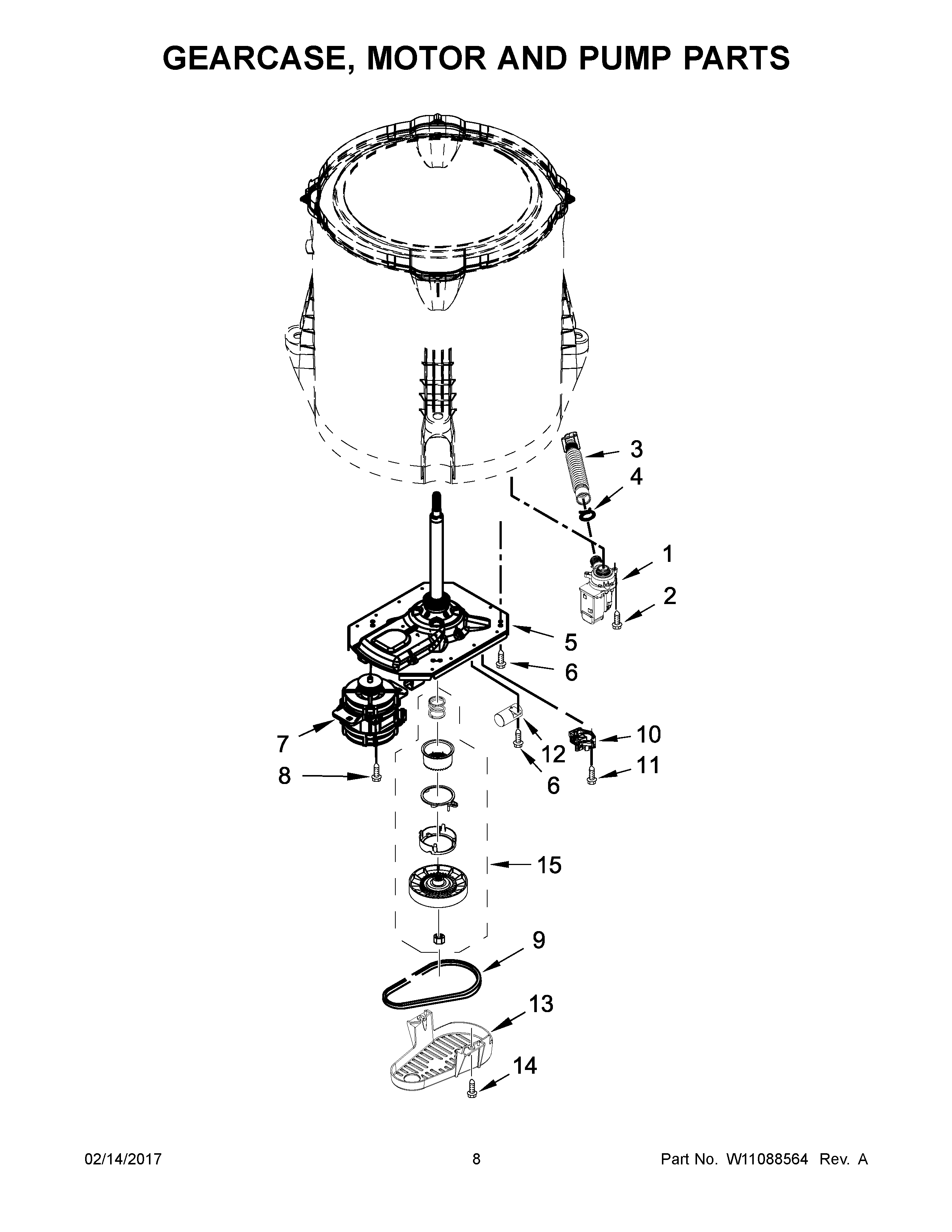

7MWTW4925EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

7MWTW4925EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

7MWTW4925EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10465543 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10832724 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9W11239857 Whirlpool Washer Belt
10W10913953 Whirlpool Washer Shift Actuator
11W11596033 Whirlpool Microwave Screw
12CAPACITOR (WASHER)
13WPW10550173 Whirlpool Shield Assembly
14W11573574 Whirlpool Screw
15W10721967 Whirlpool Washer Cam Kit
