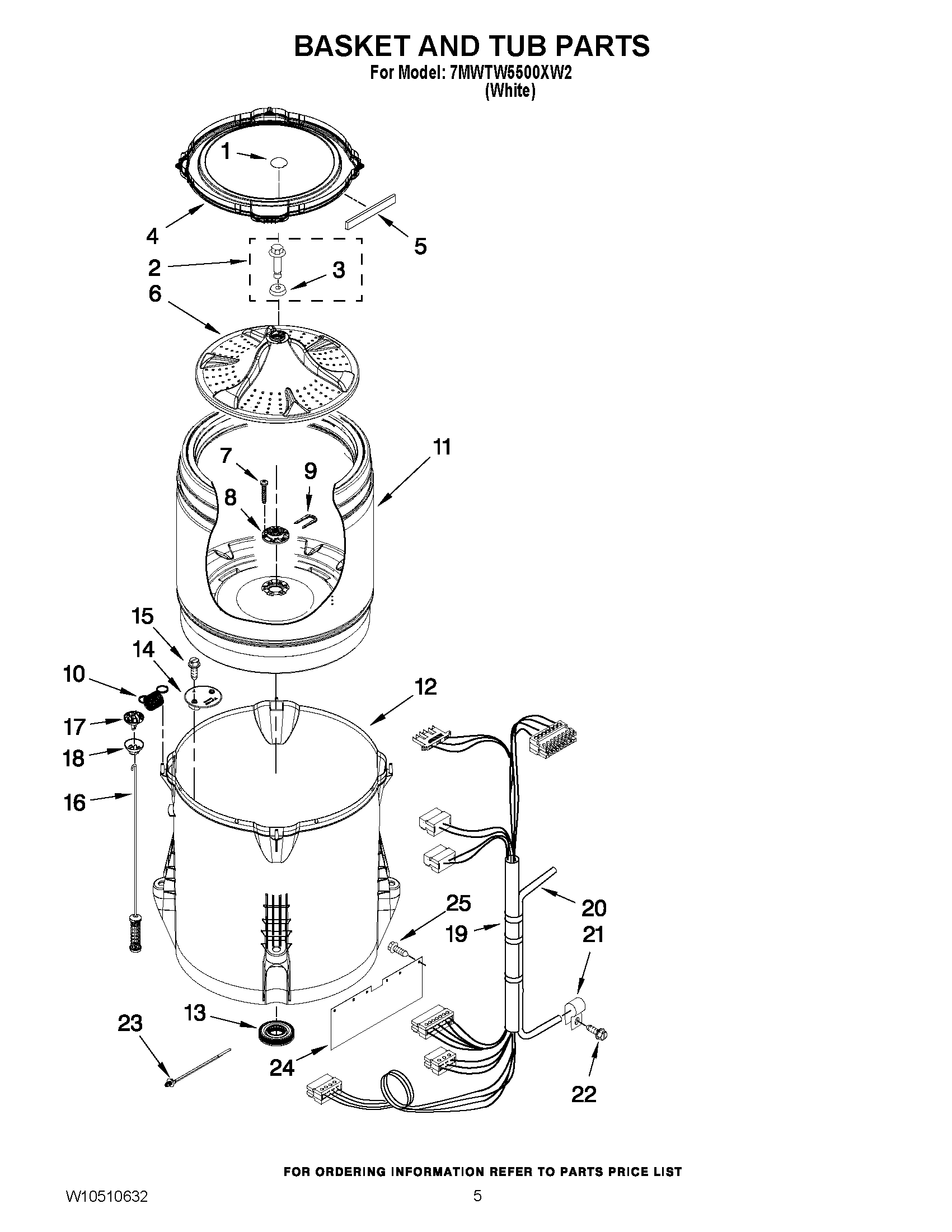

7MWTW5500XW2 03 – BASKET AND TUB PARTS

Products

Position	Product
1	WPW10305259 Whirlpool Cap
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	TUB RING (INCLUDES ITEM 5)
5	W10205824 Whirlpool Absorber
6	WPW10215115 Whirlpool Washplate
7	WP8533953 Whirlpool Screw
8	W10528947 Whirlpool Washer Drive Hub Assembly
9	RETAINER
10	W10400895 Whirlpool Spring Assembly
11	WPW10521297 Whirlpool Basket
12	W10324648 Whirlpool Outer Tub
13	W10324647 Whirlpool Seal Tub
14	WPW10215093 Whirlpool Filter
15	WP8533928 Whirlpool Refrigerator Screw
16	W10780051 Whirlpool Suspension Rod
17	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
18	W10440729 Whirlpool Suspension
19	WPW10383573 Whirlpool Wire Harness
20	WP353244 Whirlpool Hose
21	W10005430 Whirlpool Clamp
22	WPW10109200 Whirlpool Screw
23	WPW10339879 Whirlpool Wire Tie
24	SHIELD, SPLASH
25	W10429200 Whirlpool Retainer
