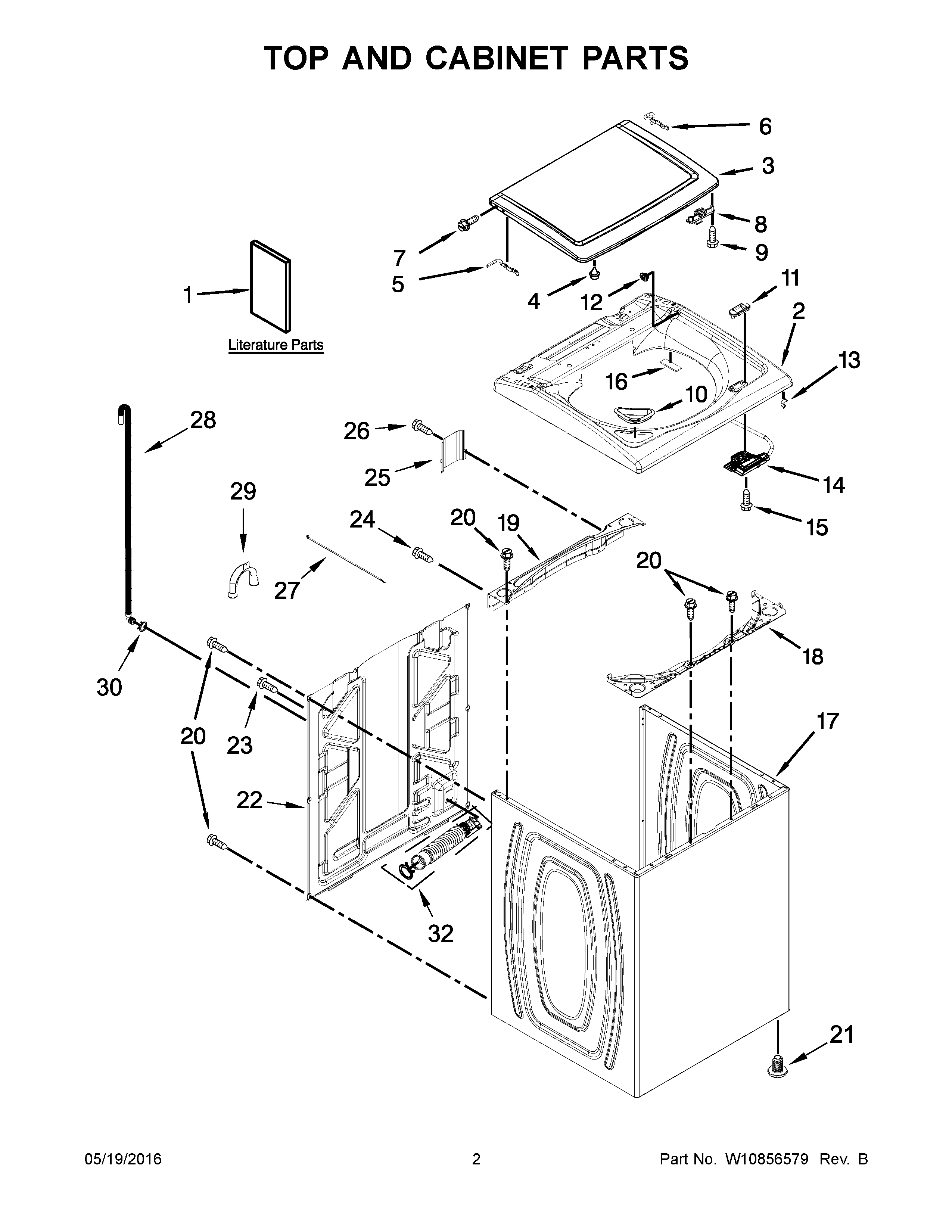

7MWTW5521BW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1BTECH SHEET
1DENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1CQUICK START GUIDE
2WPW10246376 Whirlpool Top Assembly
3LID (INCLUDES ITEM 4)
4WP9724509 Whirlpool Bumper
5W10295775 Whirlpool Hinge
6W10569655 Whirlpool Hinge
7SCREW
8WPW10240513 Whirlpool Strike
9WPW10273971 Whirlpool Screw
10W10874836 Whirlpool Endcap Assembly Left Hand and Right
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12AW10293230 Whirlpool Bearing
12BEARING, LID HINGE (LEFT)
13WP90016 Whirlpool Clip
14W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15WP8281163 Whirlpool Refrigerator Screw
16W10684258 Whirlpool Pad
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WPW10687506 Whirlpool Washer Leveling Leg
22W11486091 Whirlpool Rear Panel
23WP9740848 Whirlpool Dishwasher Screw
24W11568617 Whirlpool Screw
25W10676061 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27WPW10339879 Whirlpool Wire Tie
28W11244231 Whirlpool Hose
29WPW10280024 Whirlpool Retainer
30WP356138 Whirlpool Hose Clamp
31WP16123 Whirlpool Washer
32W10899966 Whirlpool Hose Assembly
