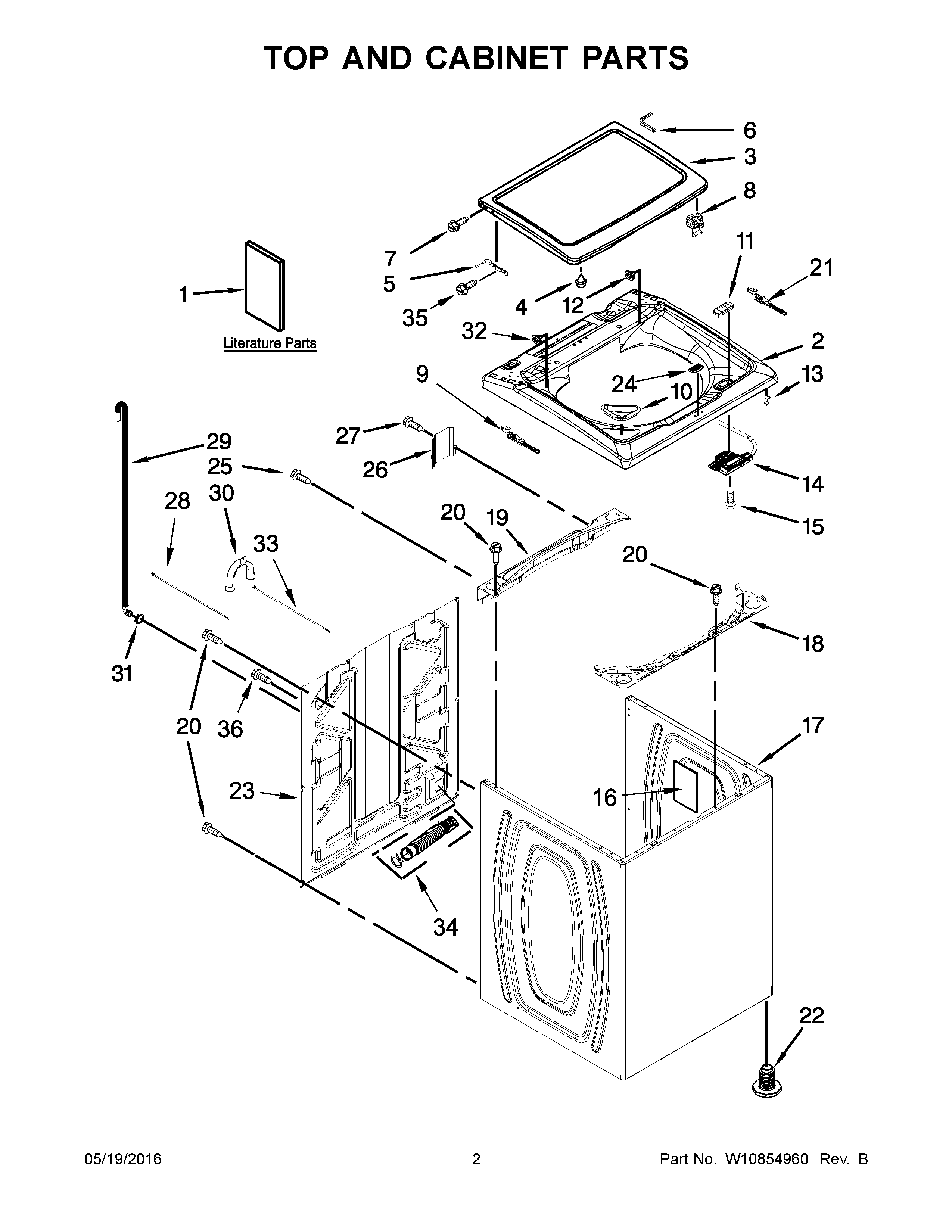

7MWTW5622BW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1D	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
1B	TECH SHEET
1C	QUICK START GUIDE
1A	USE & CARE GUIDE
2	WPW10246376 Whirlpool Top Assembly
3	WPW10427116 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP8563965 Whirlpool Hinge Assembly
6	WP8572974 Whirlpool Hinge
7	W11404293 Whirlpool Screw
8	WPW10239968 Whirlpool Strike Assembly
9	W10270398 Whirlpool Hinge Assembly
10	W10874836 Whirlpool Endcap Assembly Left Hand and Right
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	W10293293 Whirlpool Bearing
13	WP90016 Whirlpool Clip
14	W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15	WP8281163 Whirlpool Refrigerator Screw
16	W11096159 Whirlpool Sound ABS Assembly
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	W10270399 Whirlpool Hinge
22	WPW10687506 Whirlpool Washer Leveling Leg
23	W11486091 Whirlpool Rear Panel
24	WP9740848 Whirlpool Dishwasher Screw
25	WP313808 Whirlpool Screw
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
29	W11244231 Whirlpool Hose
30	WPW10280024 Whirlpool Retainer
31	WP356138 Whirlpool Hose Clamp
32	W10293653 Whirlpool Bearing
33	WPW10339879 Whirlpool Wire Tie
34	W10899966 Whirlpool Hose Assembly
35	WP693995 Whirlpool Screw
36	W11568617 Whirlpool Screw
