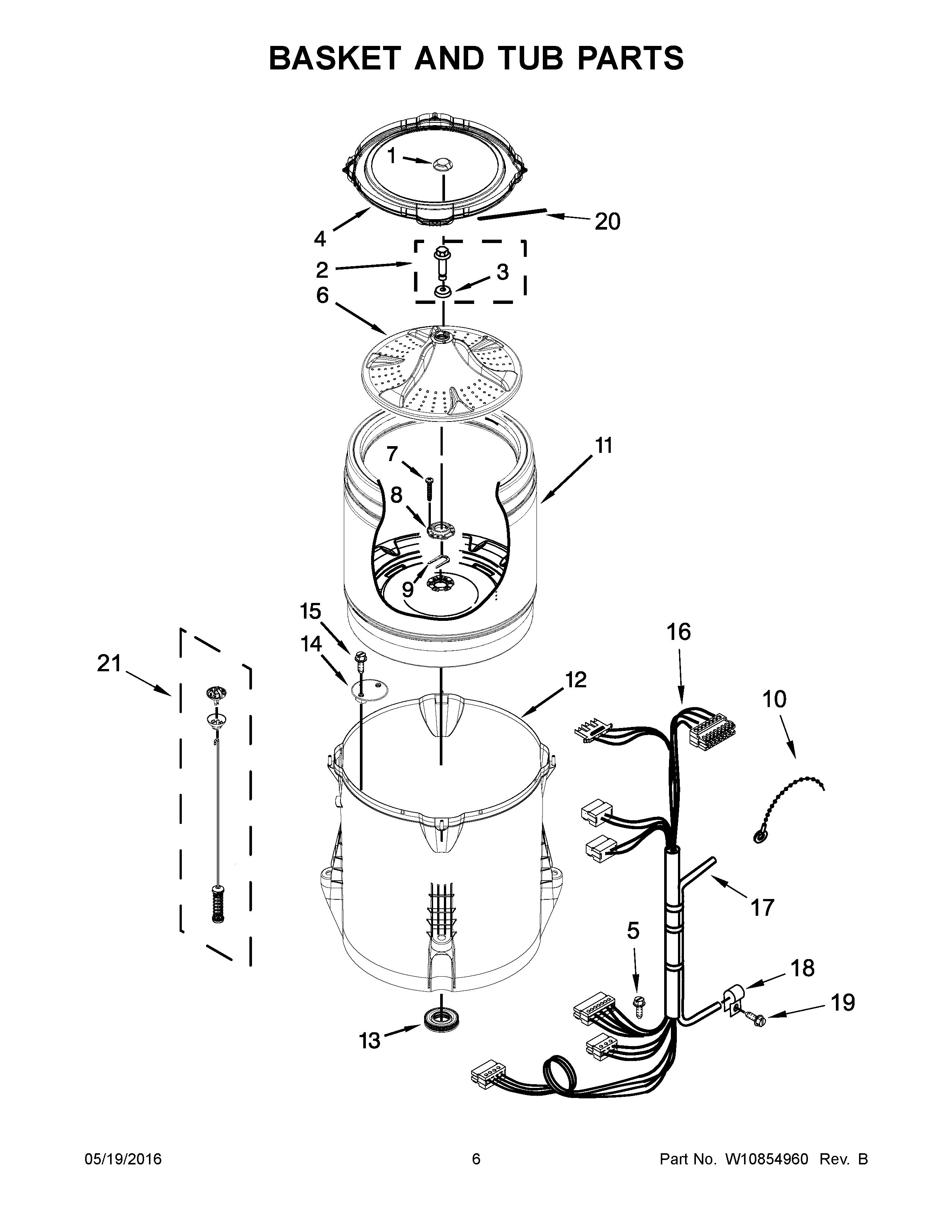

7MWTW5622BW1 04 – BASKET AND TUB PARTS

7MWTW5622BW1 04 – BASKET AND TUB PARTS

Written by

in

7MWTW5622BW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1WPW10305259 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4TUB RING (INCLUDES ITEM 5)
5WP488729 Whirlpool Refrigerator Door Screw
6WPW10215115 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10WPW10339879 Whirlpool Wire Tie
11WPW10521297 Whirlpool Basket
12W10324648 Whirlpool Outer Tub
13W10324647 Whirlpool Seal Tub
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16HARNESS, LOWER, INCLUDES HOSE PRESSURE SWITCH
17WP353244 Whirlpool Hose
18W10005430 Whirlpool Clamp
19WPW10109200 Whirlpool Screw
20W10205824 Whirlpool Absorber
21W10780051 Whirlpool Suspension Rod
