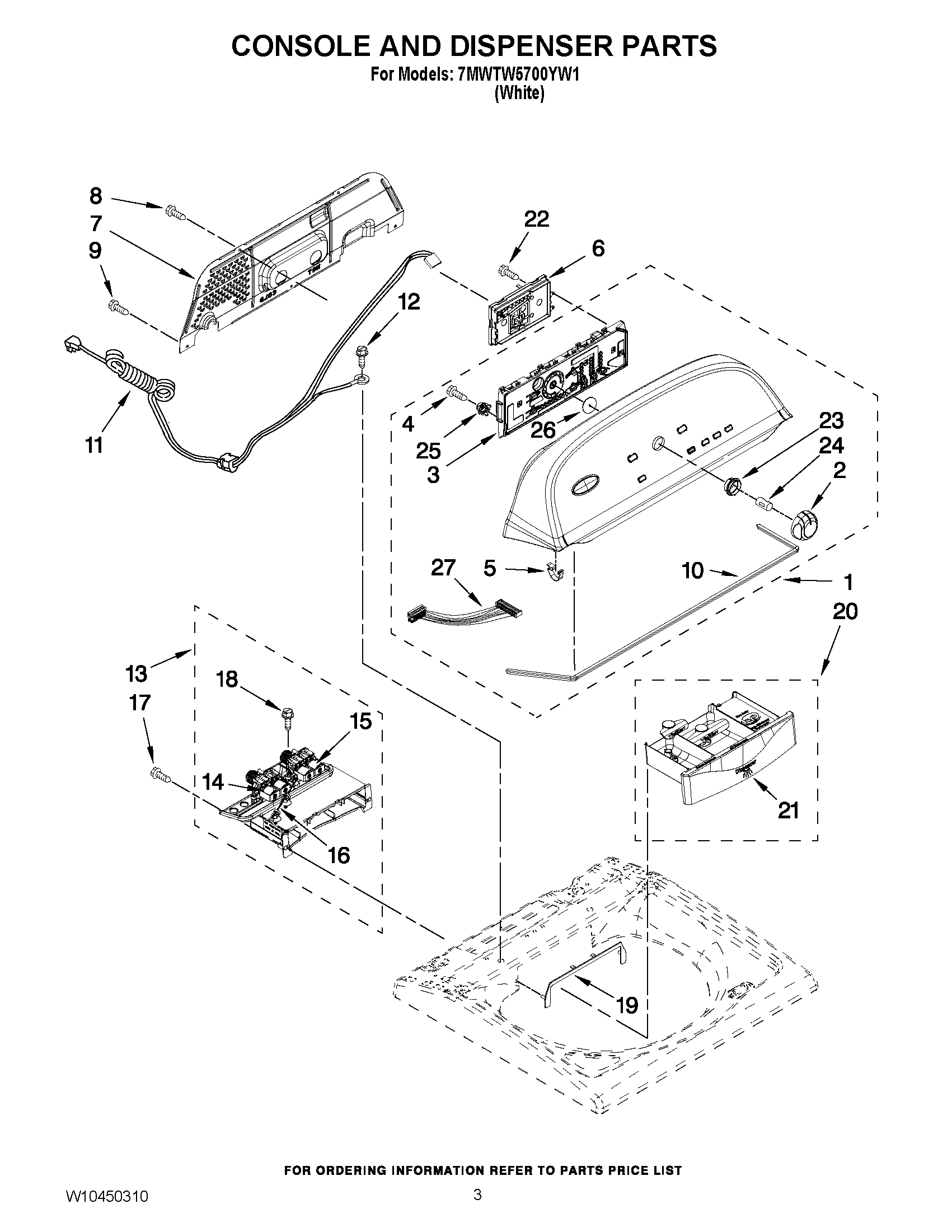

7MWTW5700YW1 02 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	CONSOLE
2	WPW10251392 Whirlpool Knob
3	WPW10269599 Whirlpool Electronic Control Board + Core
4	W10853898 Whirlpool Screw
5	WP8312709 Whirlpool Endcap Clip
6	W10480318-includeCORE Whirlpool W10480318 Electronic Control Board
7	W10420984 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP489069 Whirlpool Compactor Screw
10	W10280079 Whirlpool Seal
11	WPW10525195 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W11158805 Whirlpool Housing
14	W11168740 Whirlpool Valve
15	W11168743 Whirlpool Valve
16	W10240967 Whirlpool Wire Harness
17	WP8281163 Whirlpool Refrigerator Screw
18	WPW10109200 Whirlpool Screw
19	BEZEL, DISPENSER
20	WPW10658443 Whirlpool Drawer
21	WPW10287476 Whirlpool Handle
22	WP9740848 Whirlpool Dishwasher Screw
23	W10325119 Whirlpool Spacer
24	WP8536939 Whirlpool Spring Clip
25	W10274524 Whirlpool Grommet
26	W10323092 Whirlpool Seal
27	W10285492 Whirlpool Wire Harness
