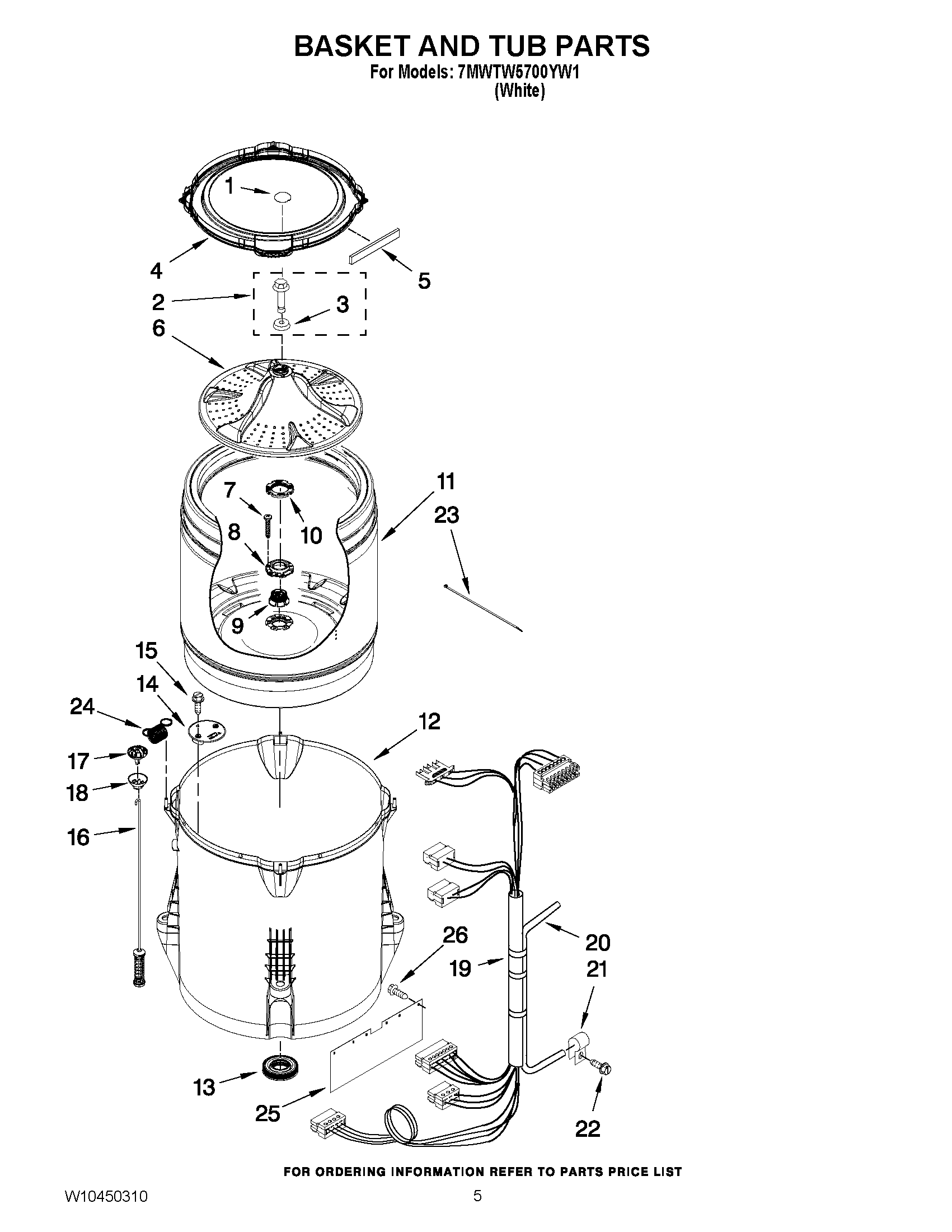

7MWTW5700YW1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	WPW10305259 Whirlpool Cap
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	TUB RING (INCLUDES ITEM 5)
5	W10205824 Whirlpool Absorber
6	WPW10215115 Whirlpool Washplate
7	WP8533953 Whirlpool Screw
8	W10324651 Whirlpool Hub
11	W10324650 Whirlpool Basket
12	W10324648 Whirlpool Outer Tub
13	W10324647 Whirlpool Seal Tub
14	WPW10215093 Whirlpool Filter
15	WP8533928 Whirlpool Refrigerator Screw
16	W10780051 Whirlpool Suspension Rod
17	BALL, SUSPENSION (SET OF 4 – INCLUDES ITEM 24)
18	W10440729 Whirlpool Suspension
19	WPW10297443 Whirlpool Wire Harness
20	WP353244 Whirlpool Hose
21	W10005430 Whirlpool Clamp
22	WPW10109200 Whirlpool Screw
23	WPW10339879 Whirlpool Wire Tie
24	W10400895 Whirlpool Spring Assembly
25	SHIELD, SPLASH
26	W10429200 Whirlpool Retainer
