7MWTW5722BC0 01 – TOP AND CABINET PARTS
Written by
in

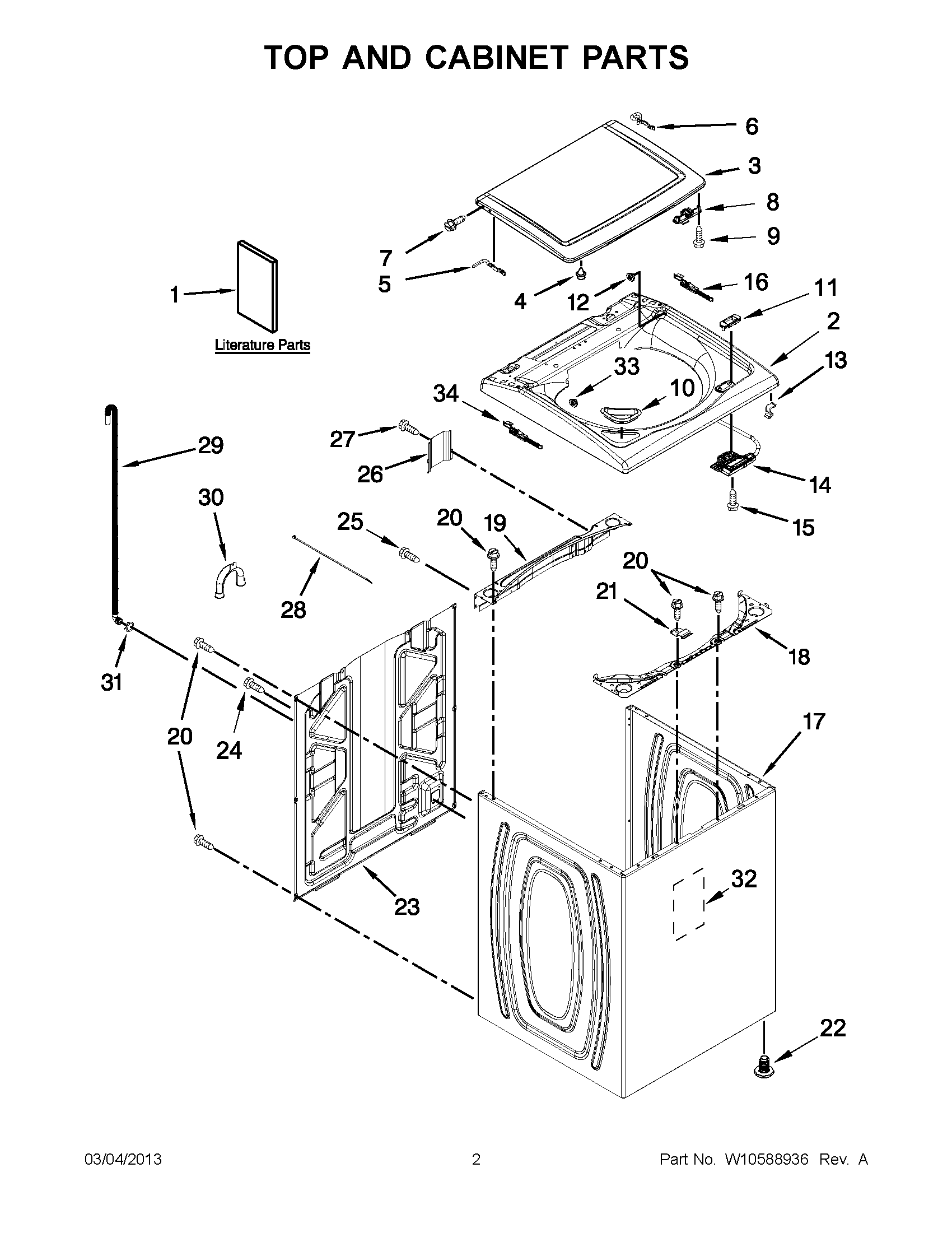

7MWTW5722BC0 01 – TOP AND CABINET PARTS
Products
Position
Product
1
ENERGY GUIDE
1
INSTALLATION INSTRUCTIONS
1
QUICK START GUIDE
1
TECH SHEET
1
USE & CARE GUIDE
2
TOP
3
LID, GLASS ASSEMBLY
4
WP9724509 Whirlpool Bumper
5
WP8563965 Whirlpool Hinge Assembly
6
WP8572974 Whirlpool Hinge
7
WP313808 Whirlpool Screw
8
WPW10239968 Whirlpool Strike Assembly
9
W11404293 Whirlpool Screw
10
W10468332 Whirlpool Dispenser
11
W10420458 Whirlpool Bezel
12
W10293293 Whirlpool Bearing
13
WP90016 Whirlpool Clip
14
W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15
WP8281163 Whirlpool Refrigerator Screw
16
W10270399 Whirlpool Hinge
17
CABINET
18
W11695476 Whirlpool Brace Support
19
W11712680 Whirlpool Commercial Part Brace
20
WP489069 Whirlpool Compactor Screw
21
WPW10248088 Whirlpool Lock
22
WPW10687506 Whirlpool Washer Leveling Leg
23
W11486091 Whirlpool Rear Panel
24
WP9740848 Whirlpool Dishwasher Screw
25
WP489128 Whirlpool Refrigerator Screw
26
W10676061 Whirlpool Cover Assembly
27
W10846509 Whirlpool Screw
28
WPW10339879 Whirlpool Wire Tie
29
W11244231 Whirlpool Hose
30
WPW10280024 Whirlpool Retainer
31
WP356138 Whirlpool Hose Clamp
32
W11096159 Whirlpool Sound ABS Assembly
33
W10293653 Whirlpool Bearing
34
W10270398 Whirlpool Hinge Assembly
←
