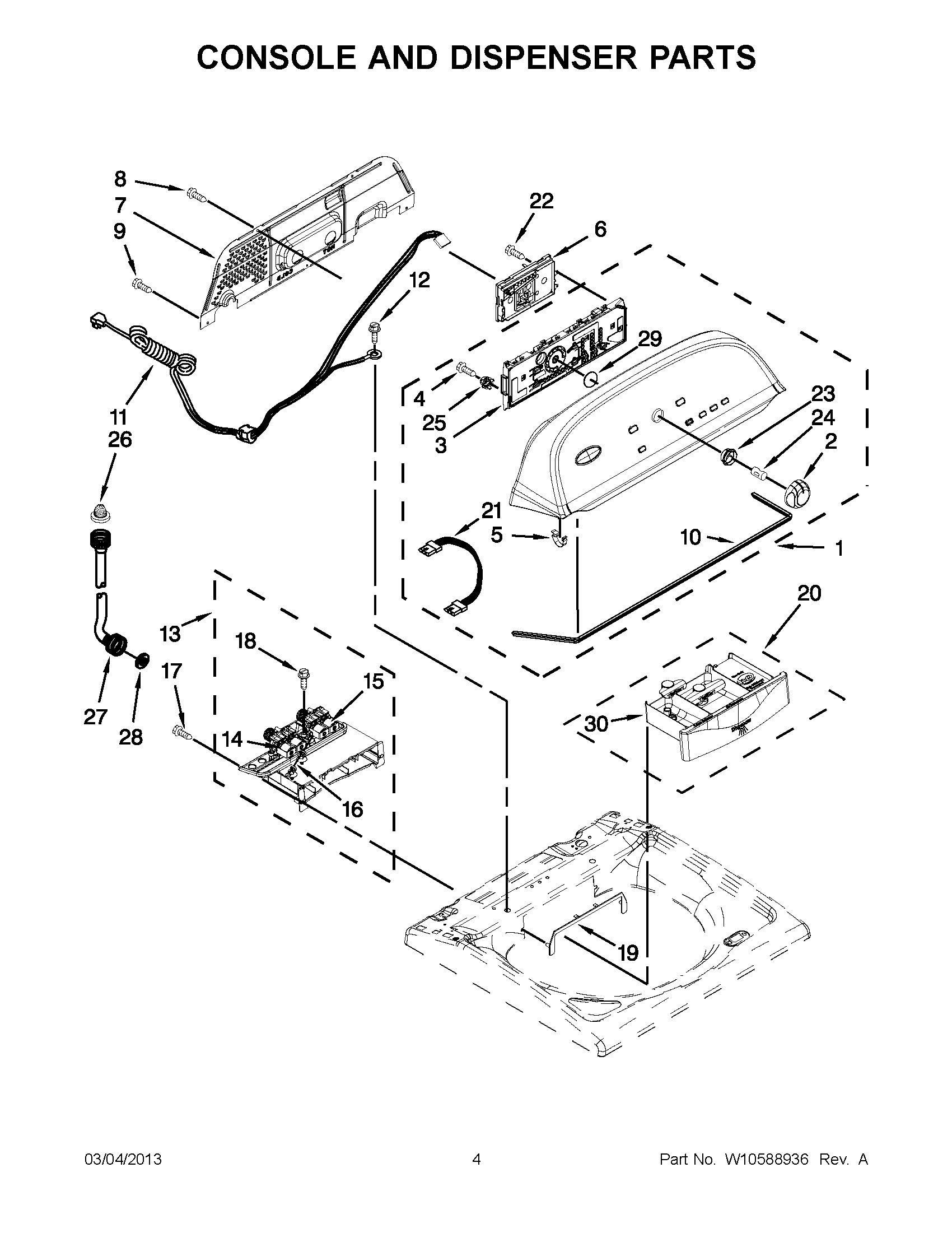

7MWTW5722BC0 02 – CONSOLE AND DISPENSER PARTS

7MWTW5722BC0 02 – CONSOLE AND DISPENSER PARTS

Written by

in

7MWTW5722BC0 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY KNOB, CONTROL
2WPW10251394 Whirlpool Knob
3WPW10269599 Whirlpool Electronic Control Board + Core
4W10853898 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W10571578 Whirlpool Electronic Control Board + Core
7W10420984 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP489069 Whirlpool Compactor Screw
10W10280079 Whirlpool Seal
11WPW10525195 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11158805 Whirlpool Housing
14W11158818 Whirlpool Valve
15VALVE, HOT WATER INLET
16W10240967 Whirlpool Wire Harness
17W11700520 Whirlpool Screw
18WPW10109200 Whirlpool Screw
19BEZEL, DISPENSER
20WPW10658443 Whirlpool Drawer
21W10285492 Whirlpool Wire Harness
22WP9740848 Whirlpool Dishwasher Screw
23W10325119 Whirlpool Spacer
24WP8536939 Whirlpool Spring Clip
25W10274524 Whirlpool Grommet
26285452A Whirlpool Hose Seal and Screen
27WP89503 Whirlpool Washer Fill Hose
28WP16123 Whirlpool Washer
29W10323092 Whirlpool Seal
30WPW10287476 Whirlpool Handle
