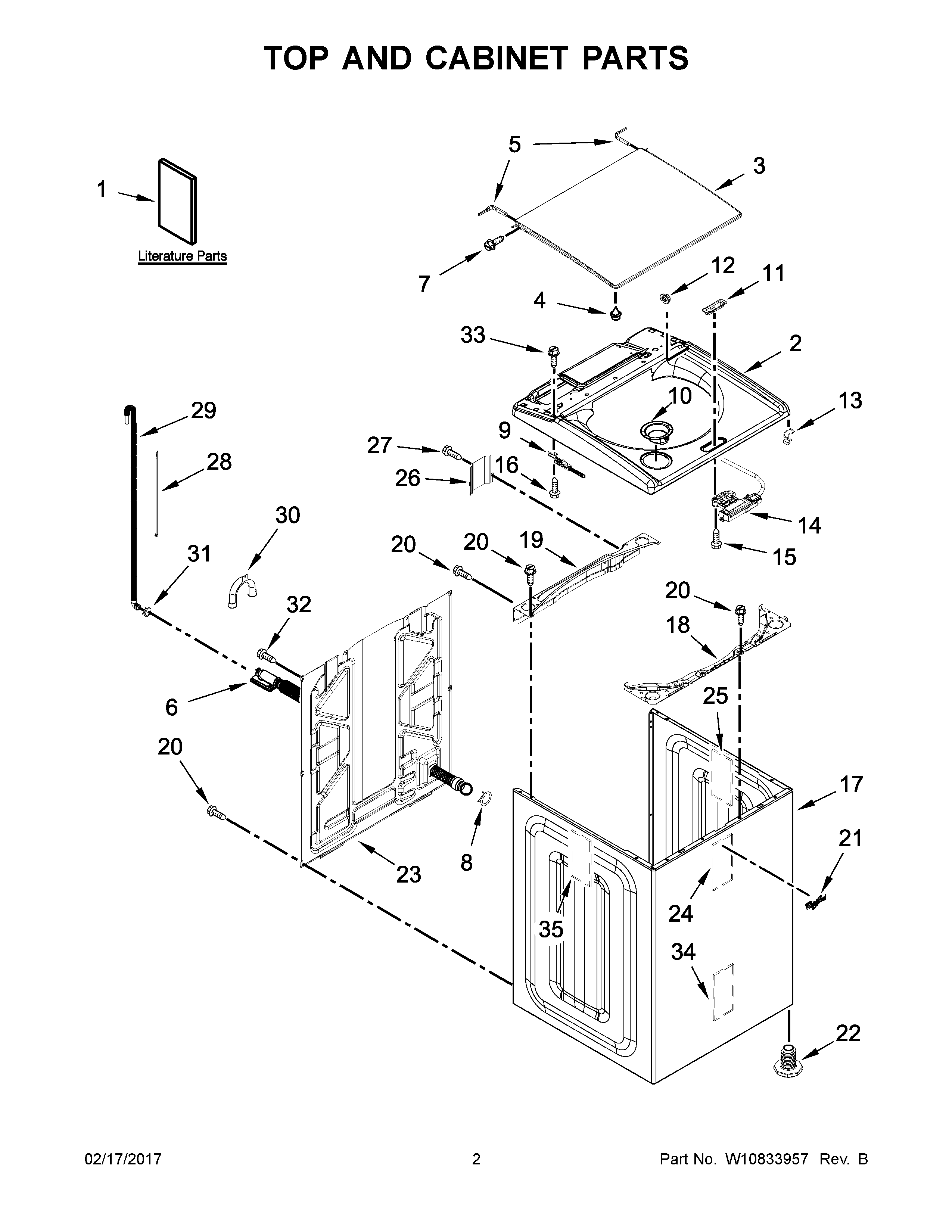

7MWTW7000EW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	OWNERS MANUAL
1B	TECH SHEET
1C	ENERGY GUIDE
1D	QUICK START GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11097645 Whirlpool Top
3	W11098825 Whirlpool Lid Assembly
4	WP9724509 Whirlpool Bumper
5	WP8563964 Whirlpool Hinge
6	W11035296 Whirlpool Hose
7	SCREW
8	WP285655 Whirlpool Hose Clamp
9A	W10594148 Whirlpool Hinge
9	W10594147 Whirlpool Hinge
10	W11234069 Whirlpool Dispenser
11	W11237157 Whirlpool Washer Lid Lock Bezel
12	W11168238 Whirlpool Bearing
13	WP90016 Whirlpool Clip
14	W10810403 Whirlpool Washer Lid Lock Assembly
15	W10001240 Whirlpool Refrigerator Screw
16	WP693995 Whirlpool Screw
17	W10676680 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	W11178521 Whirlpool Dishwasher Nameplate
22	WPW10687506 Whirlpool Washer Leveling Leg
23	W11417171 Whirlpool Rear Panel
24	W11096159 Whirlpool Sound ABS Assembly
25	WP8564458 Whirlpool Absorber
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
28	WPW10339879 Whirlpool Wire Tie
29	W11244231 Whirlpool Hose
30	WPW10280024 Whirlpool Retainer
31	WP356138 Whirlpool Hose Clamp
32	WP9740848 Whirlpool Dishwasher Screw
33	WP313808 Whirlpool Screw
34	W11197416 Whirlpool Absorber
