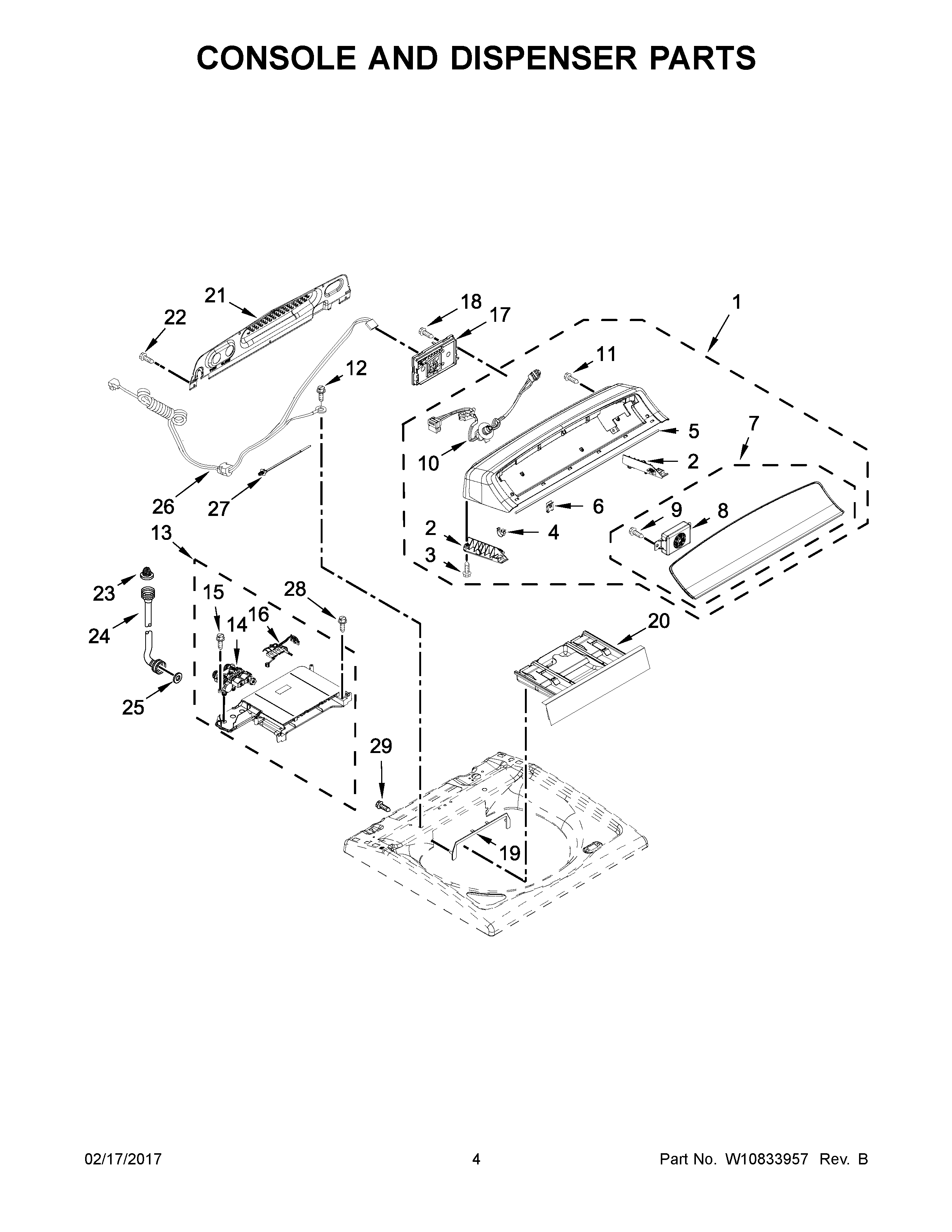

7MWTW7000EW0 03 – CONSOLE AND DISPENSER PARTS

7MWTW7000EW0 03 – CONSOLE AND DISPENSER PARTS

Written by

in

7MWTW7000EW0 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1W10908064 Whirlpool Console
2W10631630 Whirlpool Bracket Assembly
2AW10631629 Whirlpool Bracket
3W10853898 Whirlpool Screw
4WP8312709 Whirlpool Endcap Clip
5W10726624 Whirlpool Seal
6W11213336 Whirlpool Nut
7ASSEMBLY, CONSOLE FASCIA
8W11123146 Whirlpool Speaker
9W10728156 Whirlpool Screw
10W10915405 Whirlpool Wire Harness
11W11311945 Whirlpool Refrigerator Screw
12W10846509 Whirlpool Screw
13W11173597 Whirlpool Housing
14W11220230 Whirlpool Washer Water Inlet Valve
15WPW10109200 Whirlpool Screw
16W11458657 Whirlpool Wire Harness
17W11033189 Whirlpool Electronic Control Board + Core
18WP9740848 Whirlpool Dishwasher Screw
19W10601845 Whirlpool Bezel
20W10861667 Whirlpool Washer Dispenser Drawer
21W10611544 Whirlpool Rear Panel
22WP489069 Whirlpool Compactor Screw
23285452A Whirlpool Hose Seal and Screen
24WP89503 Whirlpool Washer Fill Hose
25WP16123 Whirlpool Washer
26W10859955 Whirlpool Power Cord
27WPW10298887 Whirlpool Wire Tie Assembly
28W11700520 Whirlpool Screw
29WPW10273971 Whirlpool Screw
