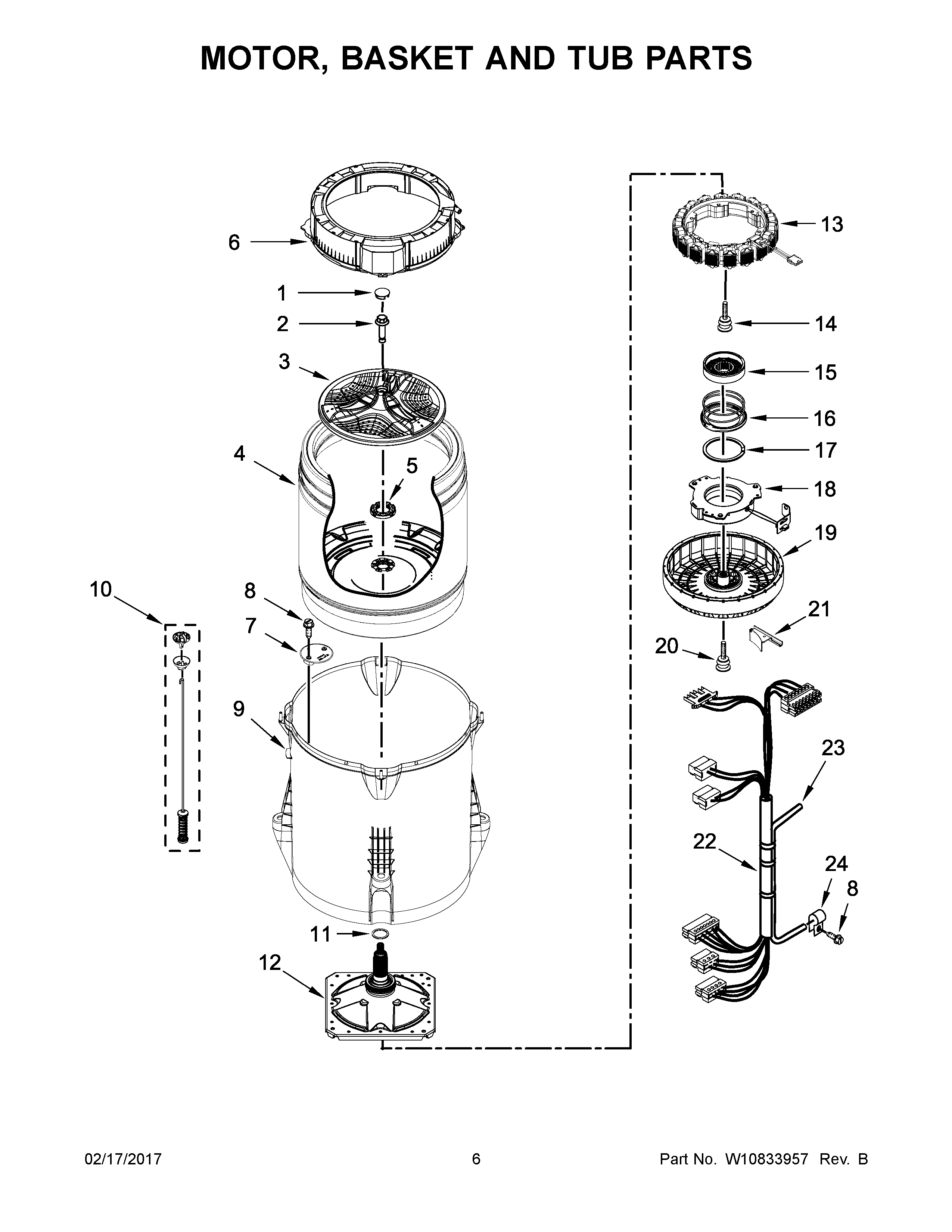

7MWTW7000EW0 04 – MOTOR, BASKET AND TUB PARTS

7MWTW7000EW0 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

7MWTW7000EW0 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3W10752283 Whirlpool Washer Washplate
4W10811957 Whirlpool Basket Assembly
5W10909670 Whirlpool Washer Spanner Nut
6W11190826 Whirlpool Tub Ring
7WPW10215093 Whirlpool Filter
8WPW10109200 Whirlpool Screw
9W11219115 Whirlpool Outer Tub
10SUSPENSION KIT 4
11W11032711 Whirlpool Washer
12GEARCASE
13W10754158 Whirlpool Stator
14SCREW
16SLIDER
18CLUTCH
19ROTOR
20W10752189 Whirlpool Screw
21SHIELD
22HARNESS, LOWER
23WP353244 Whirlpool Hose
24W10005430 Whirlpool Clamp
