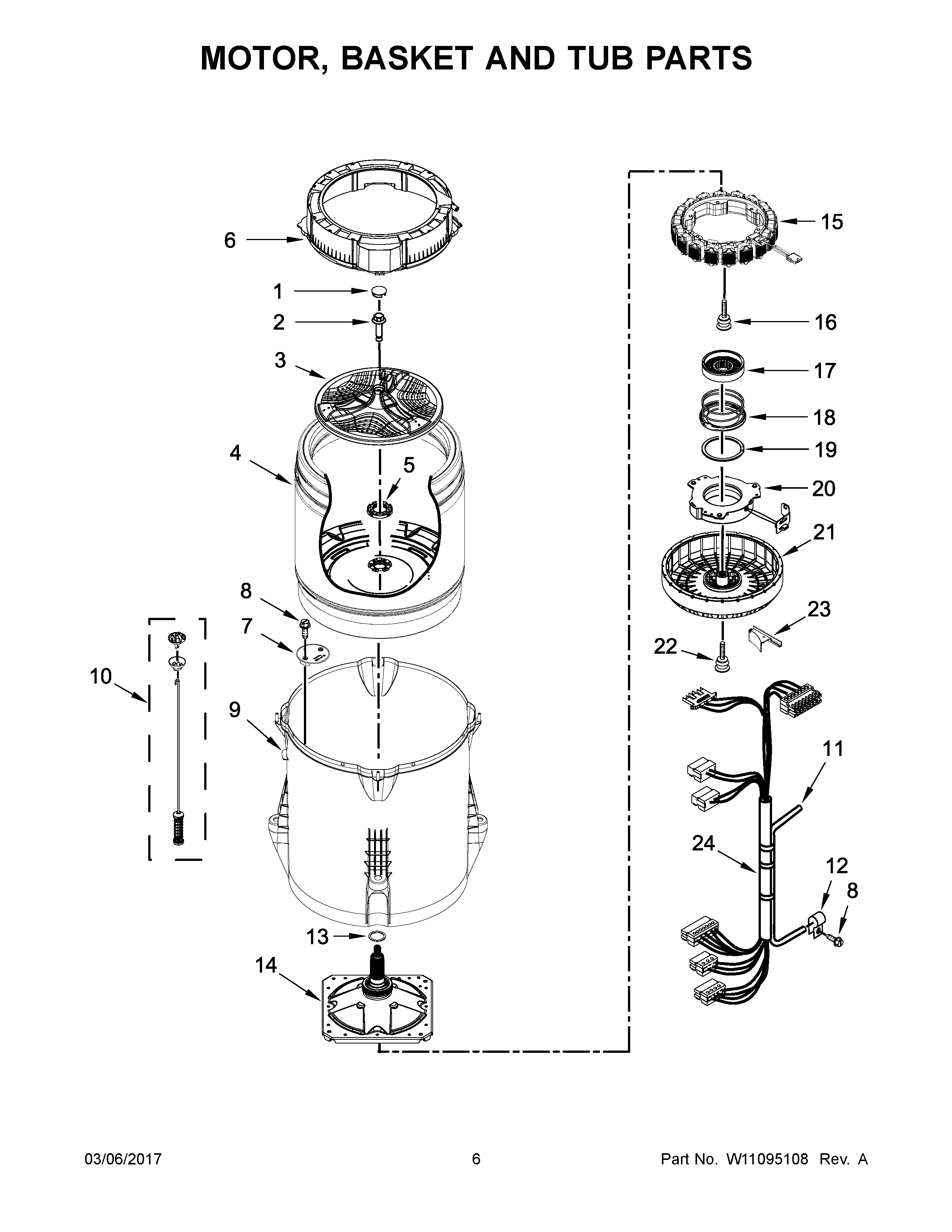

7MWTW7000EW1 04 – MOTOR, BASKET AND TUB PARTS

7MWTW7000EW1 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

7MWTW7000EW1 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3W10752283 Whirlpool Washer Washplate
4W10811957 Whirlpool Basket Assembly
5W10909670 Whirlpool Washer Spanner Nut
6W11190826 Whirlpool Tub Ring
7WPW10215093 Whirlpool Filter
8WPW10109200 Whirlpool Screw
9W11219115 Whirlpool Outer Tub
10SUSPENSION KIT 4
11WP353244 Whirlpool Hose
12W10005430 Whirlpool Clamp
13W11032711 Whirlpool Washer
14GEARCASE
15W10754158 Whirlpool Stator
16SCREW
18SLIDER
20CLUTCH
21ROTOR
22W10752189 Whirlpool Screw
23SHIELD
24W11666463 Whirlpool Wire Harness
