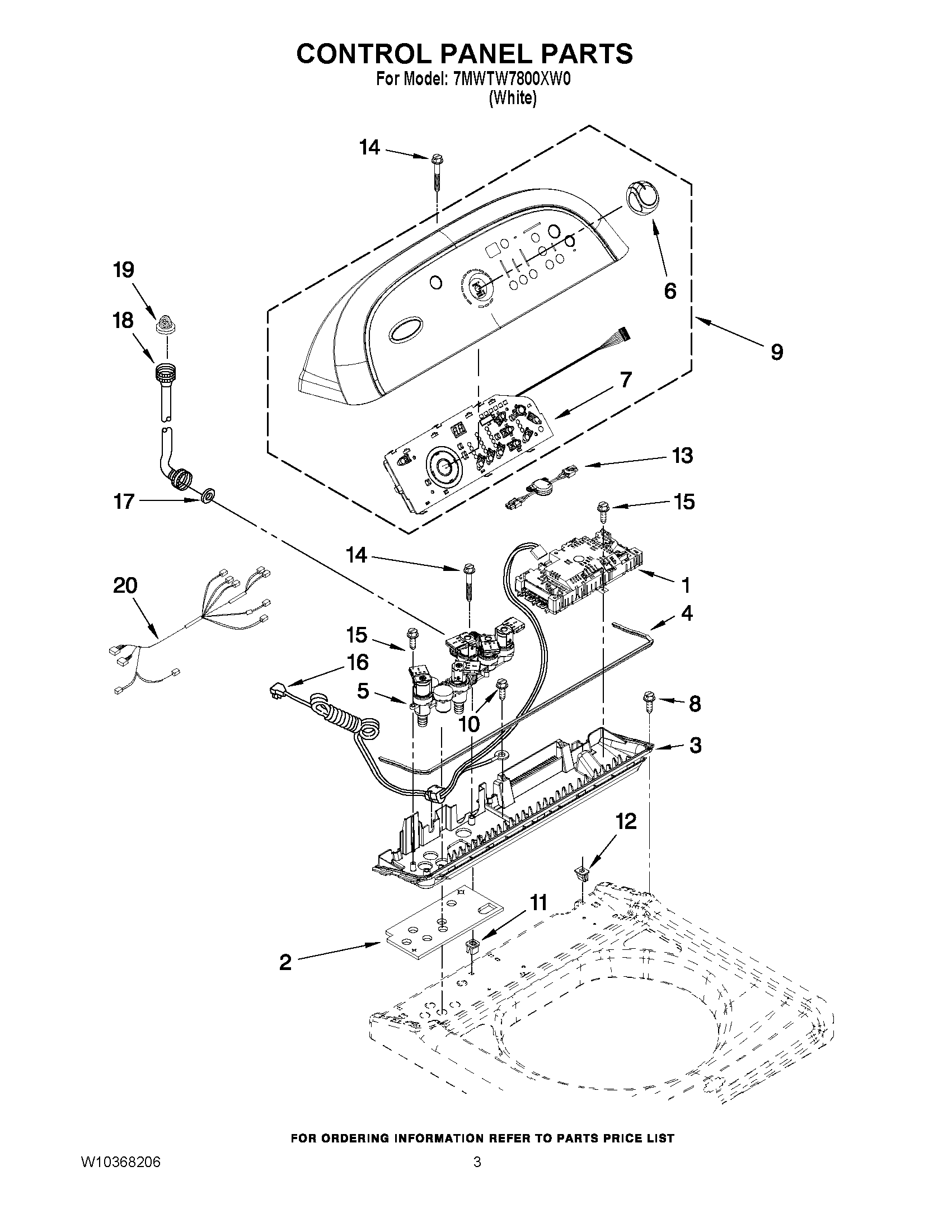

7MWTW7800XW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10384471 Whirlpool Electronic Control Board
2W10130502 Whirlpool Gasket
3WP8578550 Whirlpool Tray
4GASKET, CONSOLE/TRAY
5W10853723 Whirlpool Water Valve
6WPW10211335 Whirlpool Knob
7USER INTERFACE
8WPW10052600 Whirlpool Screw Assembly
9CONSOLE
10WP3351614 Whirlpool Screw
1198460 Whirlpool Nut
12W10022060 Whirlpool Nut Assembly
13HARNESS, LED MOV
148565324 Whirlpool Screw
15WP8281136 Whirlpool Screw
16Cord Assembly, Power
17WP16123 Whirlpool Washer
18FILL HOSE 5' W/WASHER
18WP89503 Whirlpool Washer Fill Hose
19285452A Whirlpool Hose Seal and Screen
20WPW10328040 Whirlpool Wire Harness
