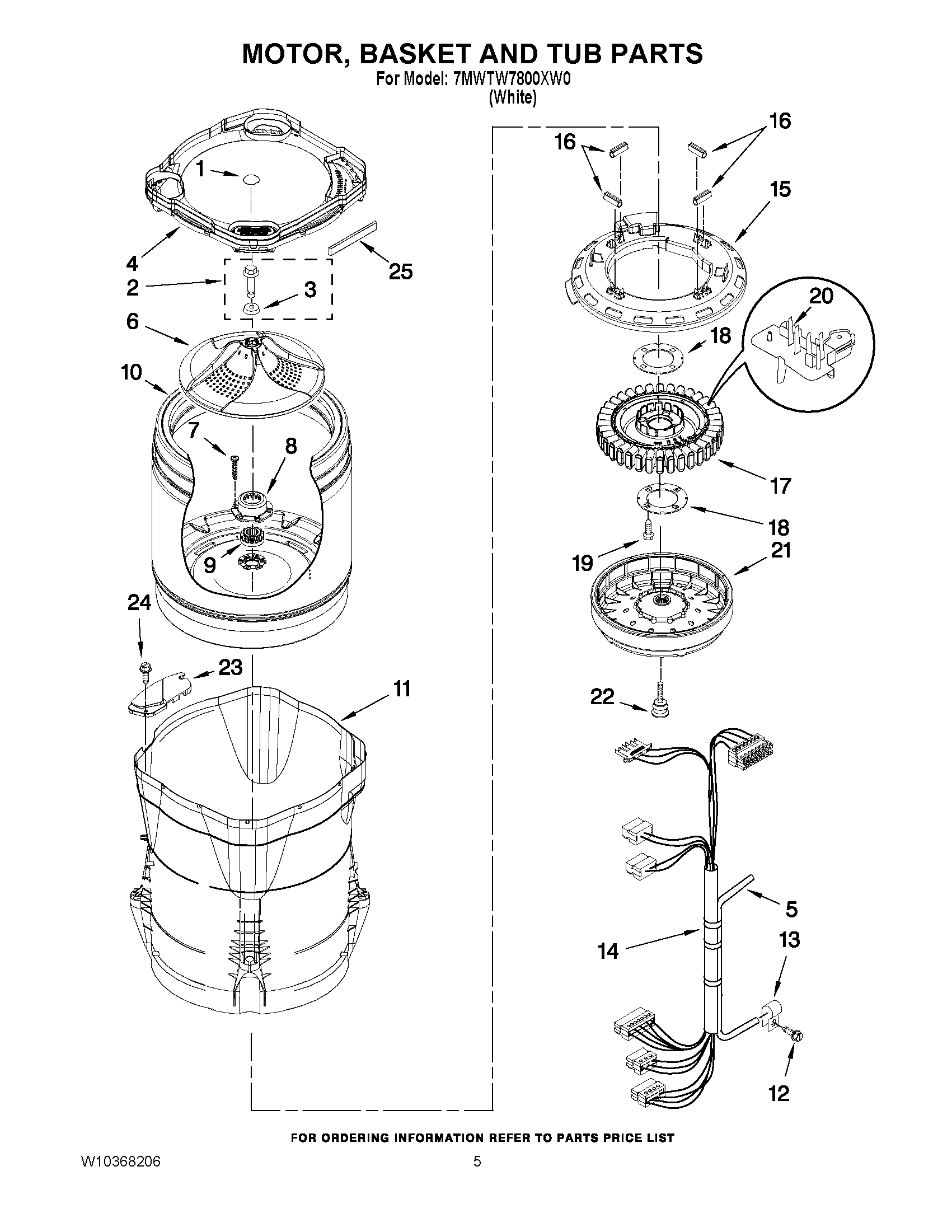

7MWTW7800XW0 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	WPW10305259 Whirlpool Cap
2	Screw & Washer Assembly
3	WPW10076260 Whirlpool Washer
4	TUB RING (INCLUDES ITEM 25)
5	WP353244 Whirlpool Hose
6	W11252784 Whirlpool Washplate
7	WP8533953 Whirlpool Screw
9	W10820039 Whirlpool Washing Machine Basket Drive Hub Kit
10	BASKET ASSEMBLY (INCLUDES ITEMS 7, 8, & 9)
11	W10193886 Whirlpool Outer Tub
12	8533957 Whirlpool Screw
13	W10005430 Whirlpool Clamp
14	Harness, Lower (Includes Item 5)
15	Shield, Drive Motor (Includes Item 16)
16	Tube, Buffer (Set Of 4)
17	WPW10419333 Whirlpool Stator
18	WP8557836 Whirlpool Plate
19	SCREW, 1/4-20 X .968
20	WPW10178988 Whirlpool Rotor Position Sensor
21	280146 Whirlpool Rotor
22	CABINET (NOT A SERVICEABLE PART)
23	Filter, Dual Pump Hood
24	WP8533928 Whirlpool Refrigerator Screw
25	W10205824 Whirlpool Absorber
