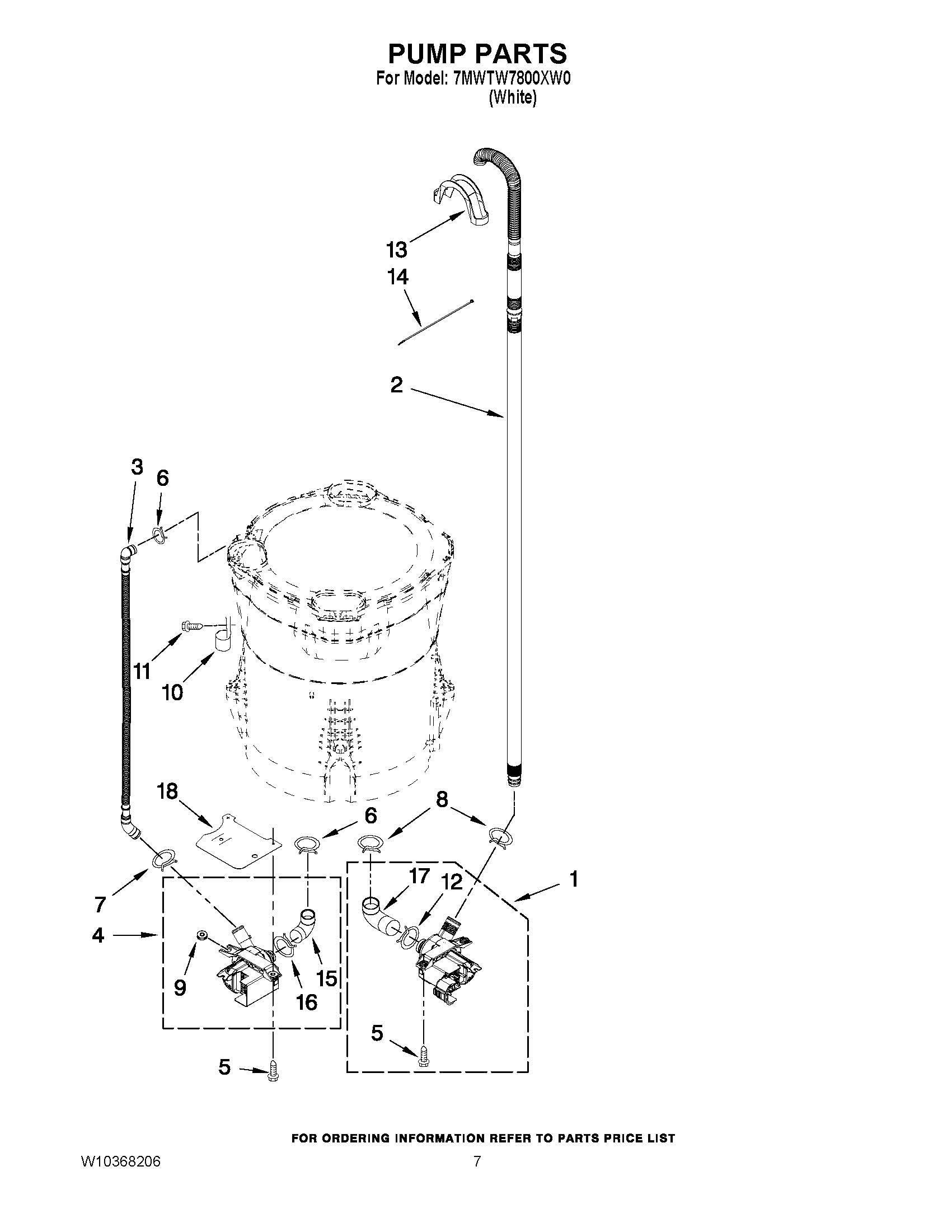

7MWTW7800XW0 04 – PUMP PARTS

Products

PositionProduct
1W10536347 Whirlpool Drain Pump and Motor Assembly
2WPW10236686 Whirlpool Hose
3WP8543774 Whirlpool Hose Assembly
4Pump Assembly, Recirc
5WPW10004910 Whirlpool Screw
6WP285655 Whirlpool Hose Clamp
7WP8269146 Whirlpool Dishwasher Clamp
9GROMMET, PUMP MOUNTING
108534021 Whirlpool Clamp
11WPW10109200 Whirlpool Screw
13WP8576642 Whirlpool Retainer Clip
14WPW10339879 Whirlpool Wire Tie
15WP8182769 Whirlpool Hose Assembly
16WP3367052 Whirlpool Hose Clamp
17WP8182767 Whirlpool Drain Hose
188578572 Whirlpool Shield
