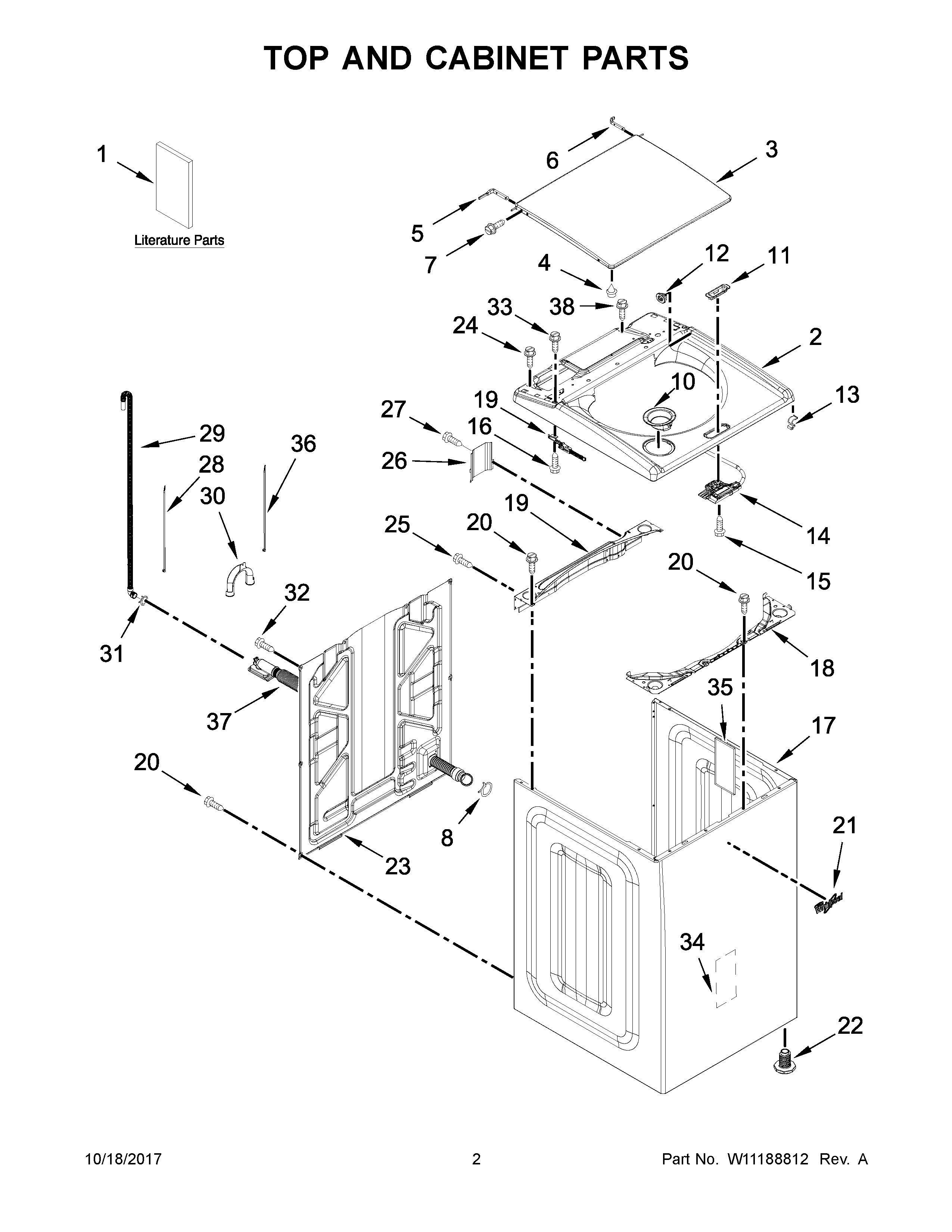

7MWTW8500EC2 02 – TOP AND CABINET PARTS
Written by
in
7MWTW8500EC2 02 – TOP AND CABINET PARTS
Products
Position
Product
1B
TECH SHEET
1A
OWNERS MANUAL
1C
ENERGY GUIDE
1D
QUICK START GUIDE
1
INSTALLATION INSTRUCTIONS
2
W10817363 Whirlpool Top
3
W11102314 Whirlpool Lid
4
W11398707 Whirlpool Grommet Assembly
5
WP8563965 Whirlpool Hinge Assembly
6
WP8572974 Whirlpool Hinge
7
W11404293 Whirlpool Screw
8
WP285655 Whirlpool Hose Clamp
9
W10861714 Whirlpool Hinge
9A
W11023747 Whirlpool Hinge Assembly
10
W11234070 Whirlpool Dispenser Assembly
11
W11237158 Whirlpool Bezel Trim
12
W11579387 Whirlpool Bearing
13
WP90016 Whirlpool Clip
14
LATCH
15
WPW10273971 Whirlpool Screw
16
WP693995 Whirlpool Screw
17
W10677266 Whirlpool Cabinet Assembly
18
W11661767 Whirlpool Brace
19
W11712680 Whirlpool Commercial Part Brace
20
WP489069 Whirlpool Compactor Screw
21
WPW10393264 Whirlpool Refrigerator Nameplate
22
WPW10687506 Whirlpool Washer Leveling Leg
23
W11417171 Whirlpool Rear Panel
24
W10001240 Whirlpool Refrigerator Screw
25
W11568617 Whirlpool Screw
26
W10676061 Whirlpool Cover Assembly
27
W10846509 Whirlpool Screw
29
W11244231 Whirlpool Hose
30
WPW10280024 Whirlpool Retainer
31
WP356138 Whirlpool Hose Clamp
32
WP9740848 Whirlpool Dishwasher Screw
33
WP313808 Whirlpool Screw
34
W11197416 Whirlpool Absorber
35
WP8564458 Whirlpool Absorber
36
WPW10339879 Whirlpool Wire Tie
37
W11246418 Whirlpool Hose Assembly
38
WP90767 Whirlpool Screw
←
