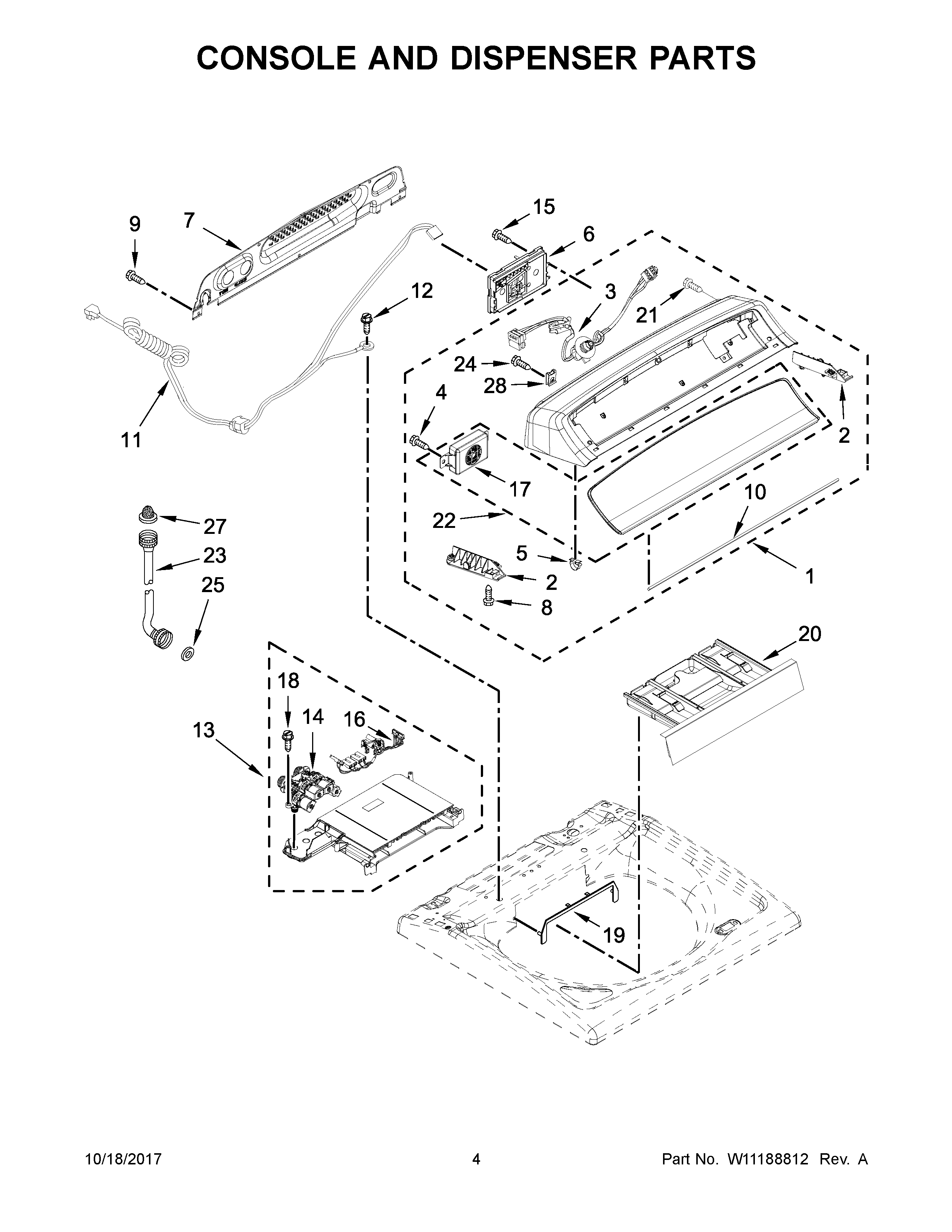

7MWTW8500EC2 03 – CONSOLE AND DISPENSER PARTS

7MWTW8500EC2 03 – CONSOLE AND DISPENSER PARTS

Written by

in

7MWTW8500EC2 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1W10838672 Whirlpool Console
2AW10631629 Whirlpool Bracket
2W10631630 Whirlpool Bracket Assembly
3W10915405 Whirlpool Wire Harness
4W10728156 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W11189463 Whirlpool Electronic Control Board + Core
7W10611544 Whirlpool Rear Panel
8W10853898 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10W10726624 Whirlpool Seal
11W11096073 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11173599 Whirlpool Housing Assembly
14W11165546 Whirlpool Washer Water Inlet Valve
15WP9740848 Whirlpool Dishwasher Screw
16W11193817 Whirlpool Wire Harness
17W11123146 Whirlpool Speaker
18WPW10109200 Whirlpool Screw
19W10601876 Whirlpool Bezel Assembly
20W11129928 Whirlpool Drawer Assembly
21W11311945 Whirlpool Refrigerator Screw
22W11115199 Whirlpool Control Panel
23WP89503 Whirlpool Washer Fill Hose
24W11700520 Whirlpool Screw
26WP16123 Whirlpool Washer
27285452A Whirlpool Hose Seal and Screen
28W11213336 Whirlpool Nut
