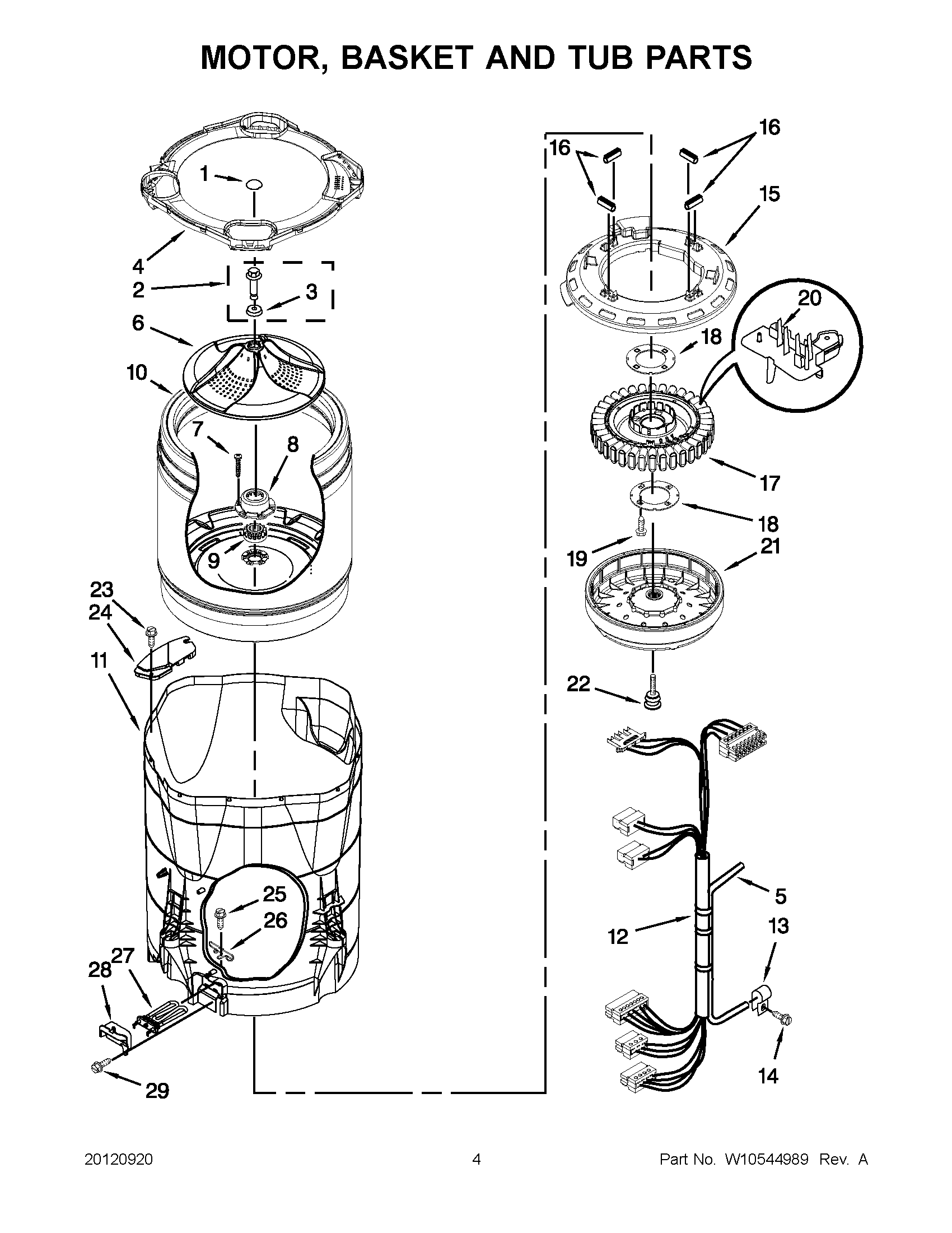

7MWTW8800AW0 02 – MOTOR, BASKET AND TUB PARTS

7MWTW8800AW0 02 – MOTOR, BASKET AND TUB PARTS

Written by

in

7MWTW8800AW0 02 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1CAP, IMPELLER
2Screw & Washer Assembly
3WPW10076260 Whirlpool Washer
4WPW10362224 Whirlpool Tub Ring
5WP353244 Whirlpool Hose
6WPW10357576 Whirlpool Washplate
7WP8533953 Whirlpool Screw
9W10820039 Whirlpool Washing Machine Basket Drive Hub Kit
10W10549509 Whirlpool Basket
11W10381077 Whirlpool Outer Tub
12HARNESS, LOWER
13W10005430 Whirlpool Clamp
148533957 Whirlpool Screw
15Shield, Drive Motor (Includes Item 16)
16Tube, Buffer (Set Of 4)
17WPW10419333 Whirlpool Stator
18WP8557836 Whirlpool Plate
19SCREW, 1/4-20 X .968
20WPW10178988 Whirlpool Rotor Position Sensor
21280146 Whirlpool Rotor
22CABINET (NOT A SERVICEABLE PART)
23WP8533928 Whirlpool Refrigerator Screw
24Filter, Dual Pump Hood
25W10119266 Whirlpool Screw
26W10134571 Whirlpool Clip
27W11041462 Whirlpool Heater
28W11288102 Whirlpool Cover Assembly
29WPW10109200 Whirlpool Screw
