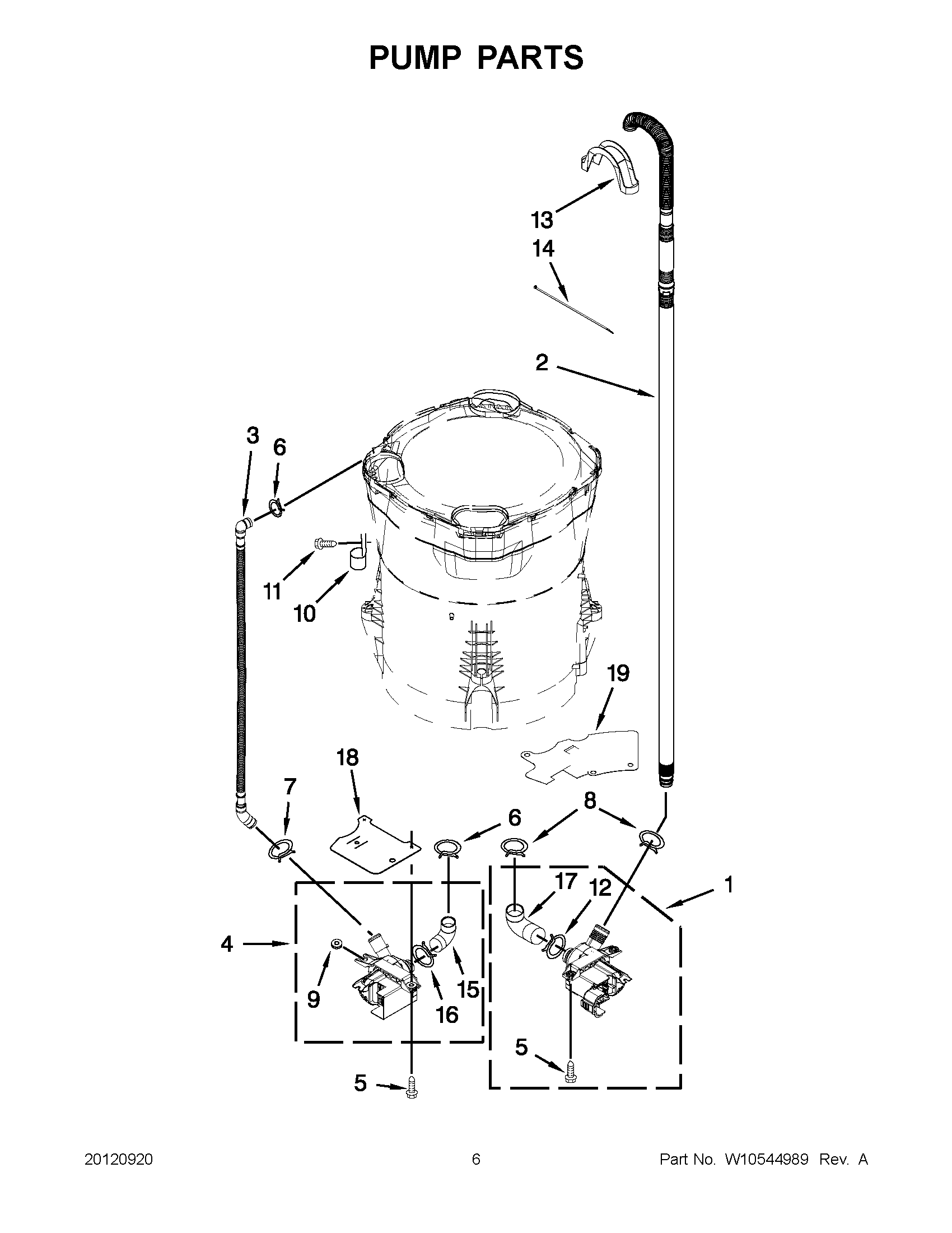

7MWTW8800AW0 03 – PUMP PARTS

Products

Position	Product
1	WPW10403802 Whirlpool Water Pump
2	WPW10363893 Whirlpool Hose Assembly
3	WPW10363892 Whirlpool Hose
4	WPW10403803 Whirlpool Water Pump
5	WPW10004910 Whirlpool Screw
6	WP285655 Whirlpool Hose Clamp
7	WP8269146 Whirlpool Dishwasher Clamp
9	GROMMET, PUMP MOUNTING
10	8534021 Whirlpool Clamp
11	WPW10109200 Whirlpool Screw
13	WP8576642 Whirlpool Retainer Clip
14	WPW10339879 Whirlpool Wire Tie
15	WP8182769 Whirlpool Hose Assembly
16	WP3367052 Whirlpool Hose Clamp
17	WP8182767 Whirlpool Drain Hose
18	8578572 Whirlpool Shield
19	8578925 Whirlpool Shield Assembly
