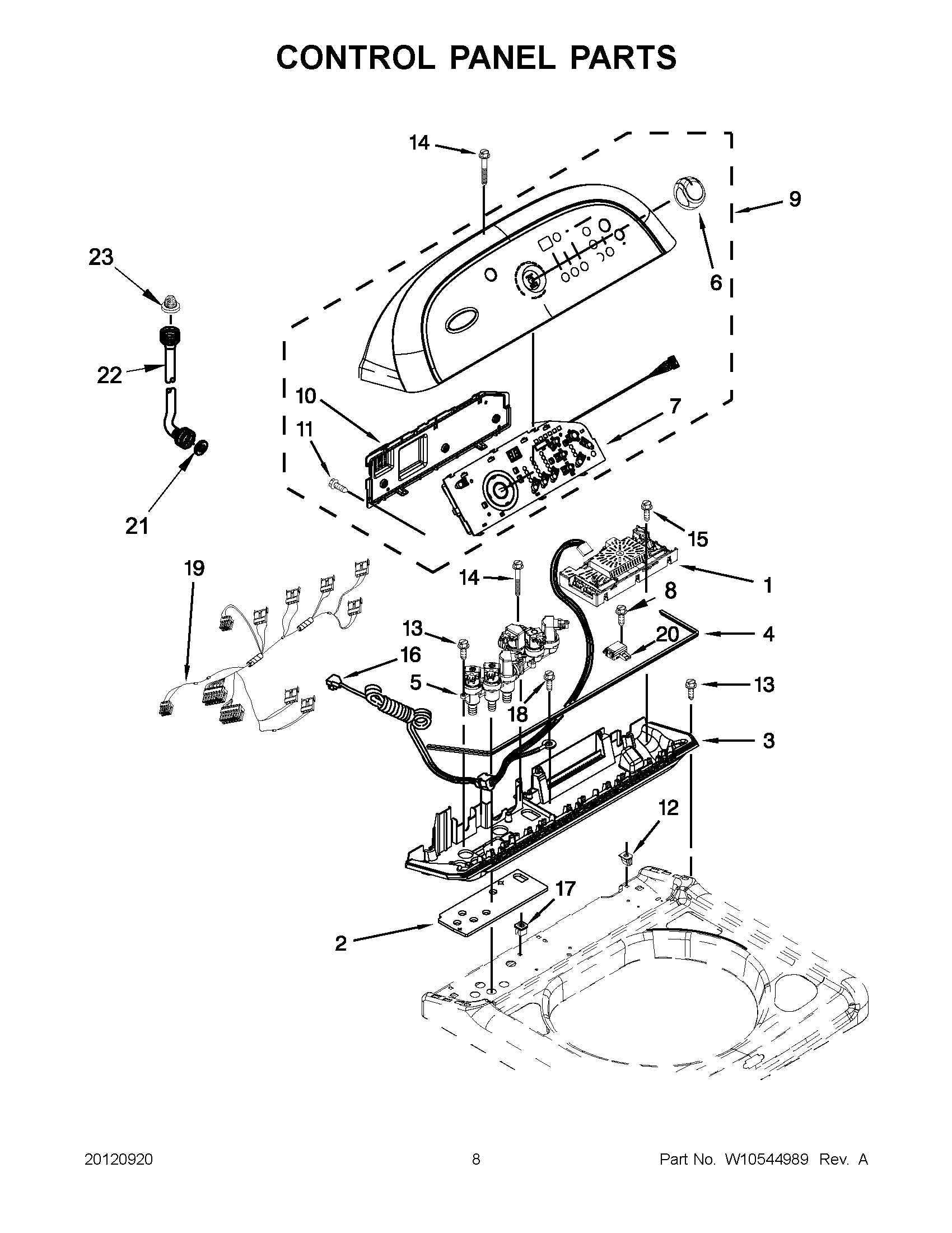

7MWTW8800AW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
2W10130502 Whirlpool Gasket
3WP8578550 Whirlpool Tray
4GASKET, CONSOLE/TRAY
5W10853723 Whirlpool Water Valve
6WPW10211335 Whirlpool Knob
7USER INTERFACE
8WP9740849 Whirlpool Screw
9WPW10491358 Whirlpool Console Assembly
108564265 Whirlpool Cover
11WP4449745 Whirlpool Screw
12W10022060 Whirlpool Nut Assembly
13WPW10052600 Whirlpool Screw Assembly
148565324 Whirlpool Screw
15SCREW
16W10761002 Whirlpool Power Cord
1798460 Whirlpool Nut
18WP3351614 Whirlpool Screw
19W10404420 Whirlpool Wire Harness
20WPW10346406 Whirlpool Electronic Control Board + Core
21WP16123 Whirlpool Washer
22WP89503 Whirlpool Washer Fill Hose
23285452A Whirlpool Hose Seal and Screen
