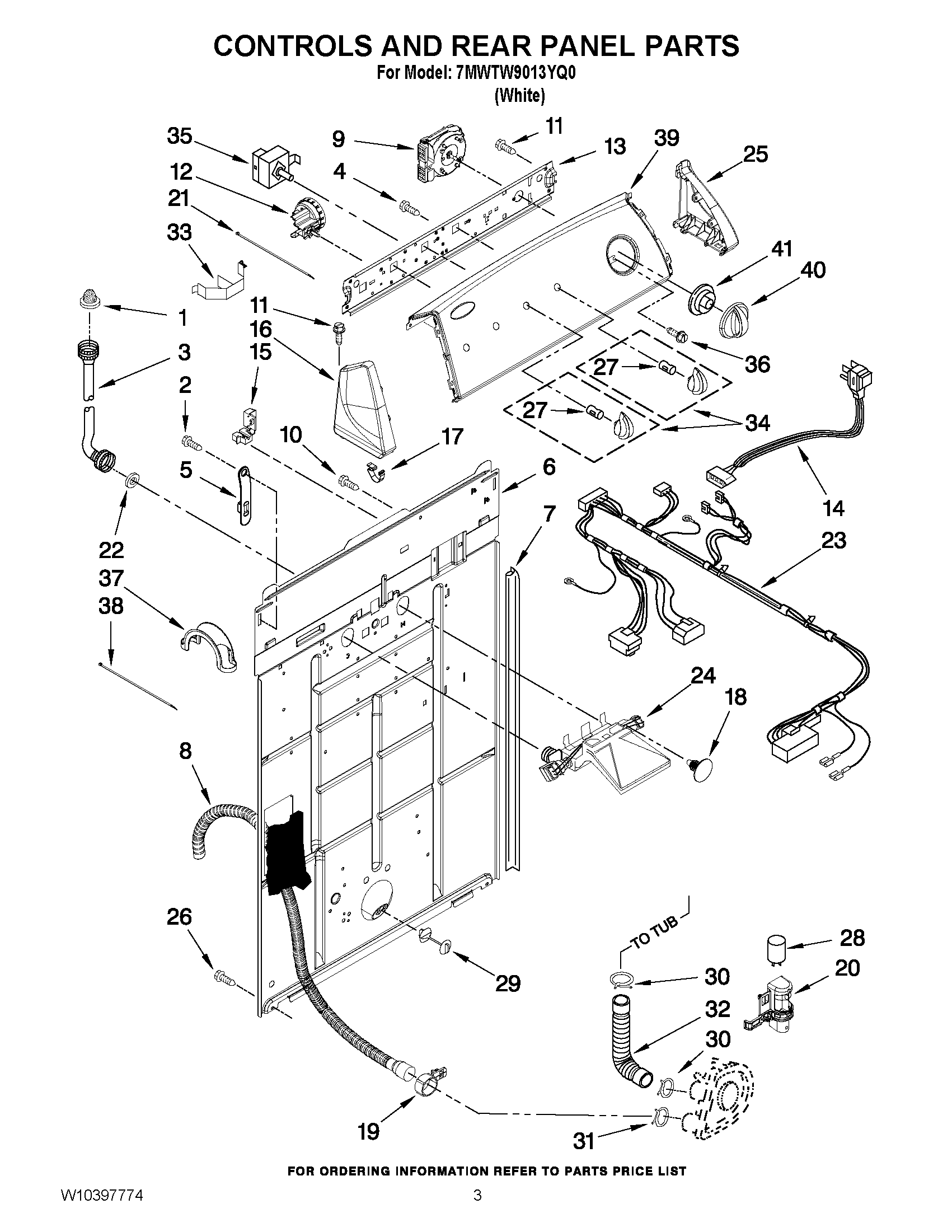

7MWTW9013YQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	285452A Whirlpool Hose Seal and Screen
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10199989 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	WPW10231403 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8312709 Whirlpool Endcap Clip
18	Clip, Push-In Retainer
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	CABLE TIE
22	WP16123 Whirlpool Washer
23	HARNESS, WIRING
24	BREAK, VACUUM
25	WP8565954 Whirlpool Endcap
26	WP3390631 Whirlpool Screw
27	WP8536939 Whirlpool Spring Clip
28	CAPACITOR
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Knob, Control
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WP8577378 Whirlpool Retainer
38	WPW10339879 Whirlpool Wire Tie
39	PANEL, CONSOLE
40	Knob, Timer
41	WP8566018 Whirlpool Dial Assembly
