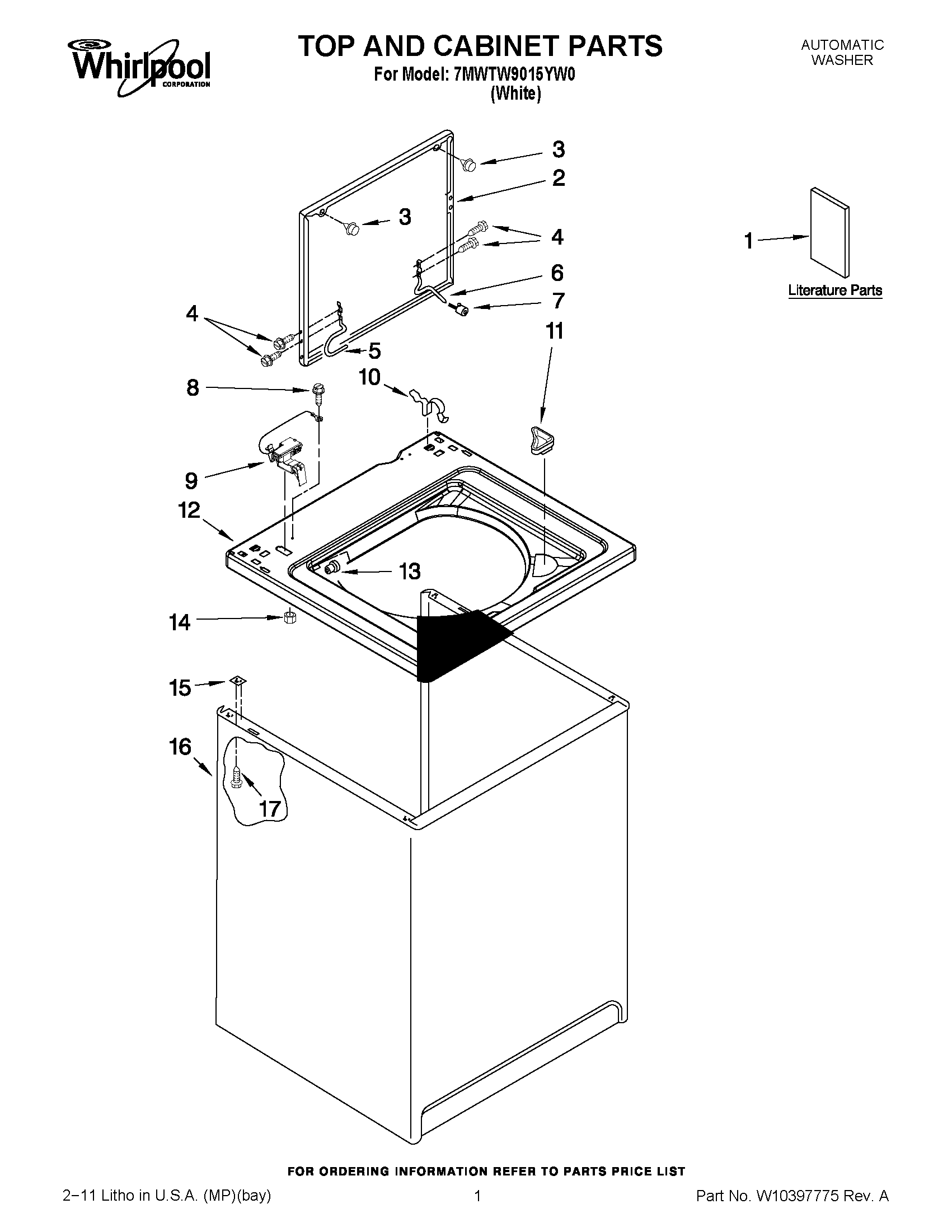

7MWTW9015YW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1FEATURE SHEET
1Wiring Diagram
1ENERGY GUIDE (MEXICO)
1Installation Instructions
1Use & Care Guide
2WPW10193857 Whirlpool Lid Assembly
3WP9724509 Whirlpool Bumper
4SCREW
5Hinge, Lid (L.H.)
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP3362952 Whirlpool Bezel
12TOP
13WP21258 Whirlpool Washer Lid Hinge Bearing
14W10080180 Whirlpool Nut
15WP62750 Whirlpool Spacer
1663424 Whirlpool Cabinet Assembly
17WP3390631 Whirlpool Screw
