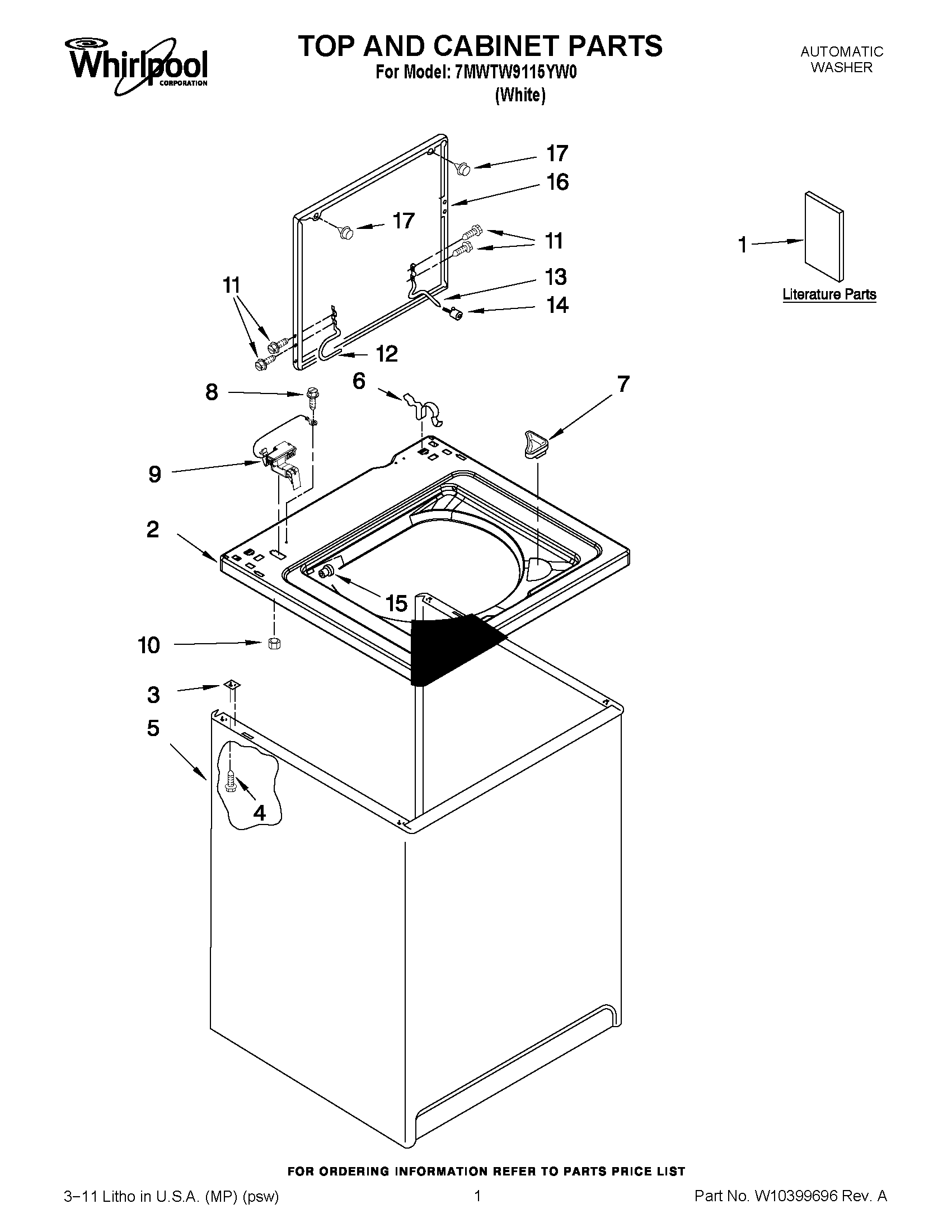

7MWTW9115YW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1FEATURE SHEET
1Wiring Diagram
1ENERGY GUIDE (MEXICO)
1Installation Instructions
1Use & Care Guide
2TOP
3WP62750 Whirlpool Spacer
4WP3390631 Whirlpool Screw
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10W10080180 Whirlpool Nut
11SCREW
12Hinge, Lid (L.H.)
13WP54583 Whirlpool Hinge
14Bumper, Lid Hinge
15WP21258 Whirlpool Washer Lid Hinge Bearing
16WPW10193857 Whirlpool Lid Assembly
17WP9724509 Whirlpool Bumper
