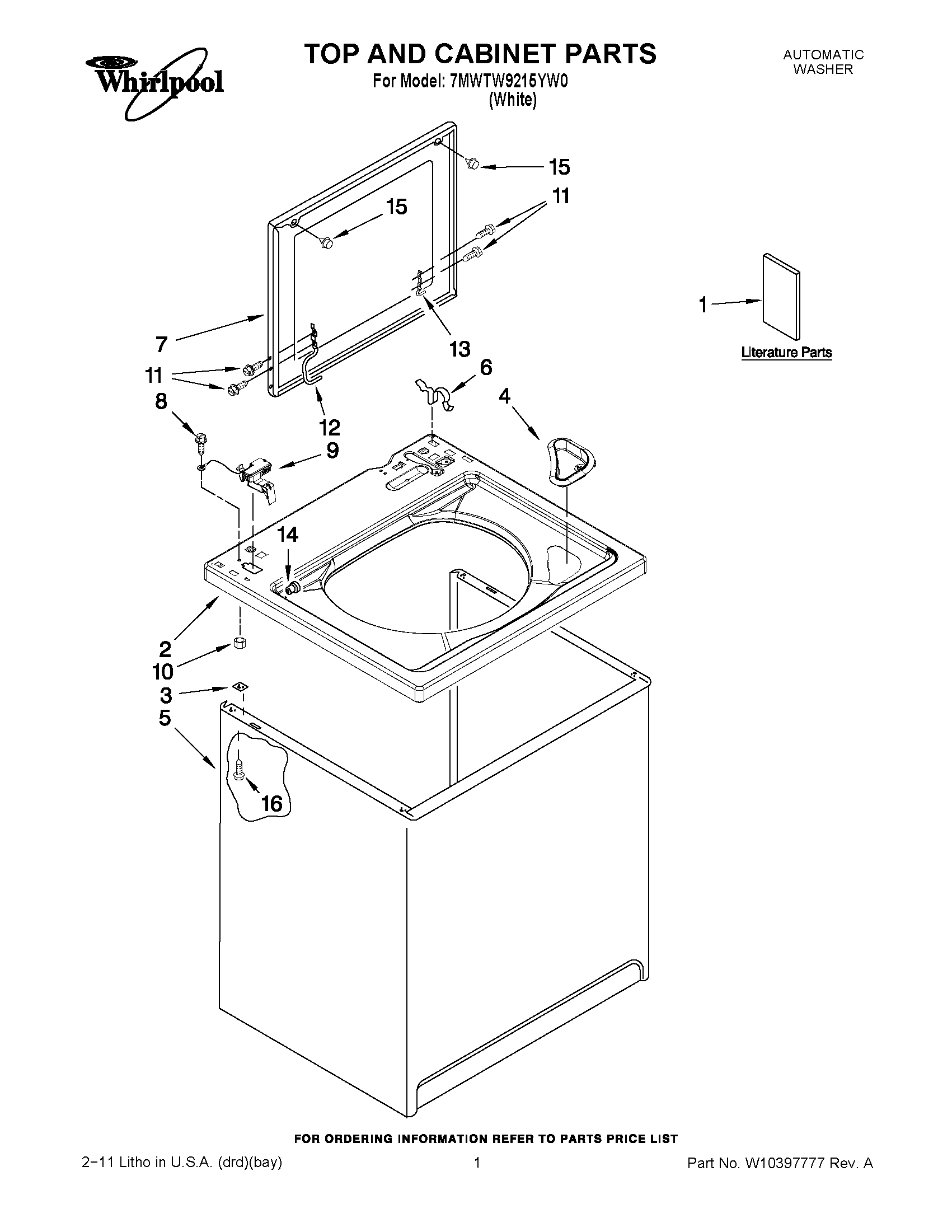

7MWTW9215YW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	FEATURE SHEET
1	Installation Instructions
1	Wiring Diagram
1	ENERGY GUIDE (MEXICO)
1	Use & Care Guide
2	Top
3	WP62750 Whirlpool Spacer
4	WPW10192089 Whirlpool Washer Bleach Dispenser
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Lid
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	W10080180 Whirlpool Nut
11	SCREW
12	Hinge, Lid (L.H.)
13	WP91770 Whirlpool Hinge
14	Bearing, Lid Hinge (2)
15	WP9724509 Whirlpool Bumper
16	WP3390631 Whirlpool Screw
