7MWTW9216YM0 01 – TOP AND CABINET PARTS
Written by
in

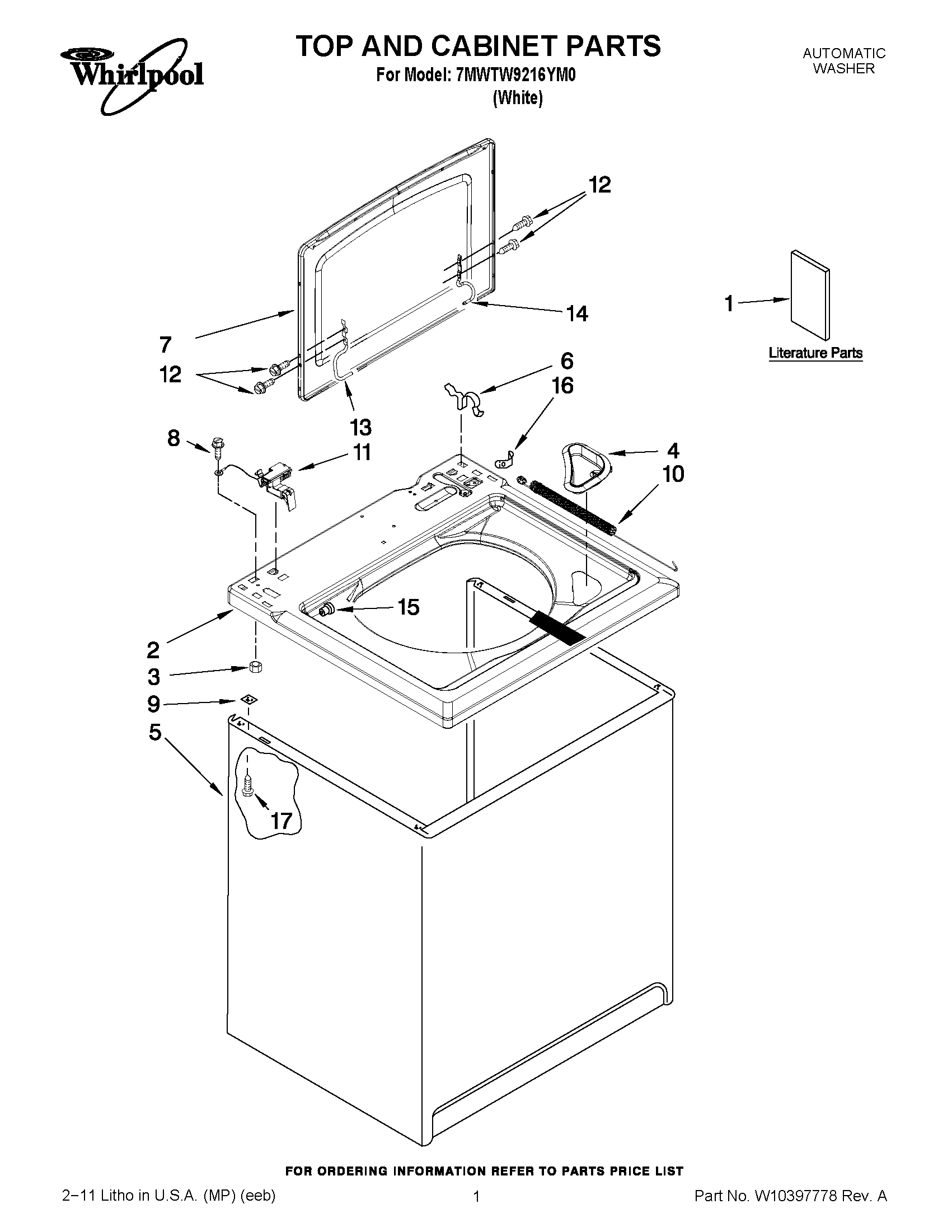

7MWTW9216YM0 01 – TOP AND CABINET PARTS
Products
Position
Product
1
ENERGY GUIDE (MEXICO)
1
FEATURE SHEET
1
Wiring Diagram
1
Installation Instructions
1
Use & Care Guide
2
Top (White)
3
W10080180 Whirlpool Nut
4
WPW10192089 Whirlpool Washer Bleach Dispenser
5
63424 Whirlpool Cabinet Assembly
6
WP62780 Whirlpool Cabinet Clip
7
WPW10164516 Whirlpool Lid Assembly
8
WP3351614 Whirlpool Screw
9
WP62750 Whirlpool Spacer
10
W10208782 Whirlpool Spring
11
WP8318084 Whirlpool Washer Lid Switch Assembly
12
SCREW
13
Hinge, Lid (L.H.)
14
W10202542 Whirlpool Hinge
15
Bearing, Lid Hinge (2)
16
Clip, Retainer
17
WP3390631 Whirlpool Screw
←
