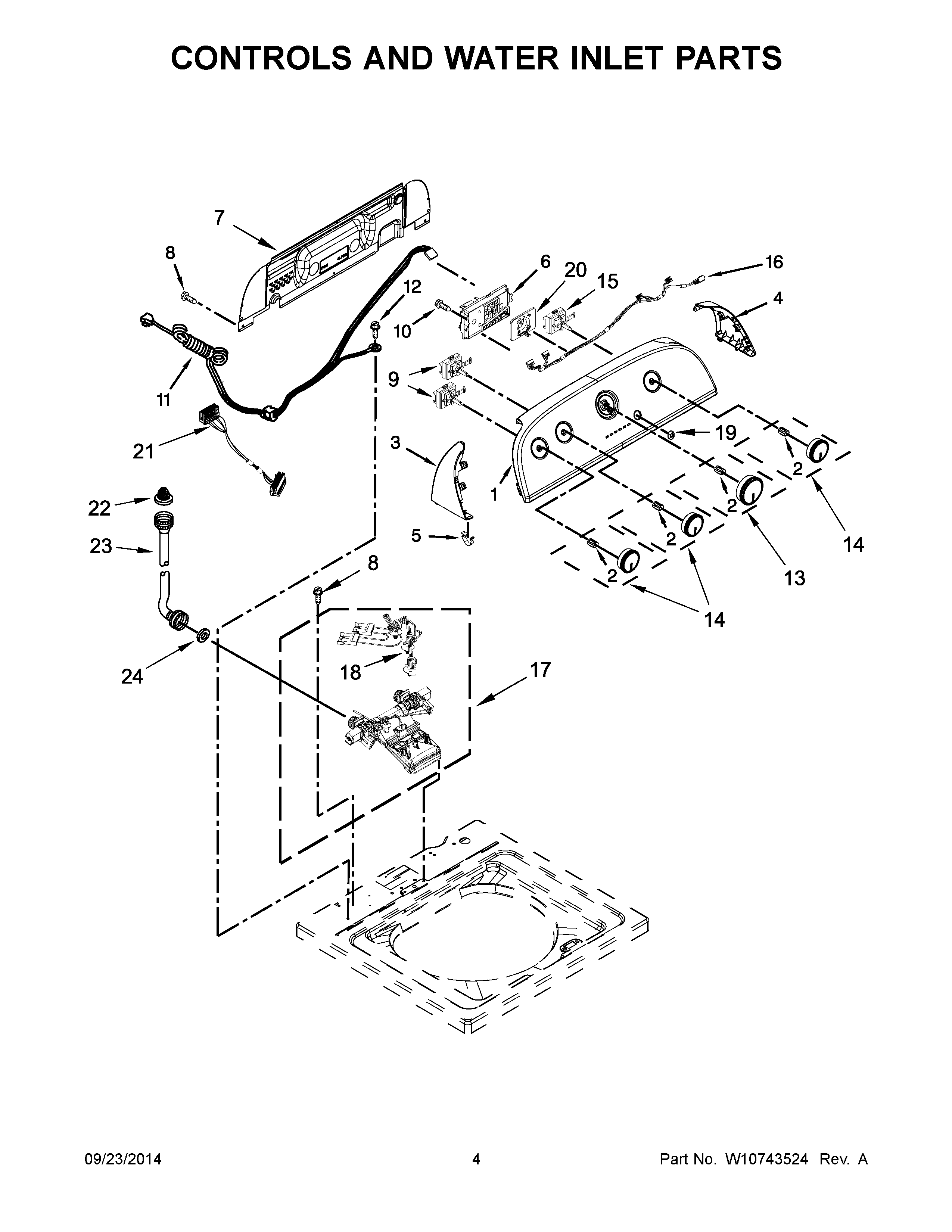

7MWTW9919DM0 03 – CONTROLS AND WATER INLET PARTS

7MWTW9919DM0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

7MWTW9919DM0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10723769-includeCORE Whirlpool W10723769 Washer Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285511 Whirlpool Cycle Switch
16W10579238 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18W10876654 Whirlpool Wire Harness
19W11084340 Whirlpool Push Button
20WPW10596298 Whirlpool Push Button
21W10582444 Whirlpool Wire Harness
22WP16123 Whirlpool Washer
23WP89503 Whirlpool Washer Fill Hose
