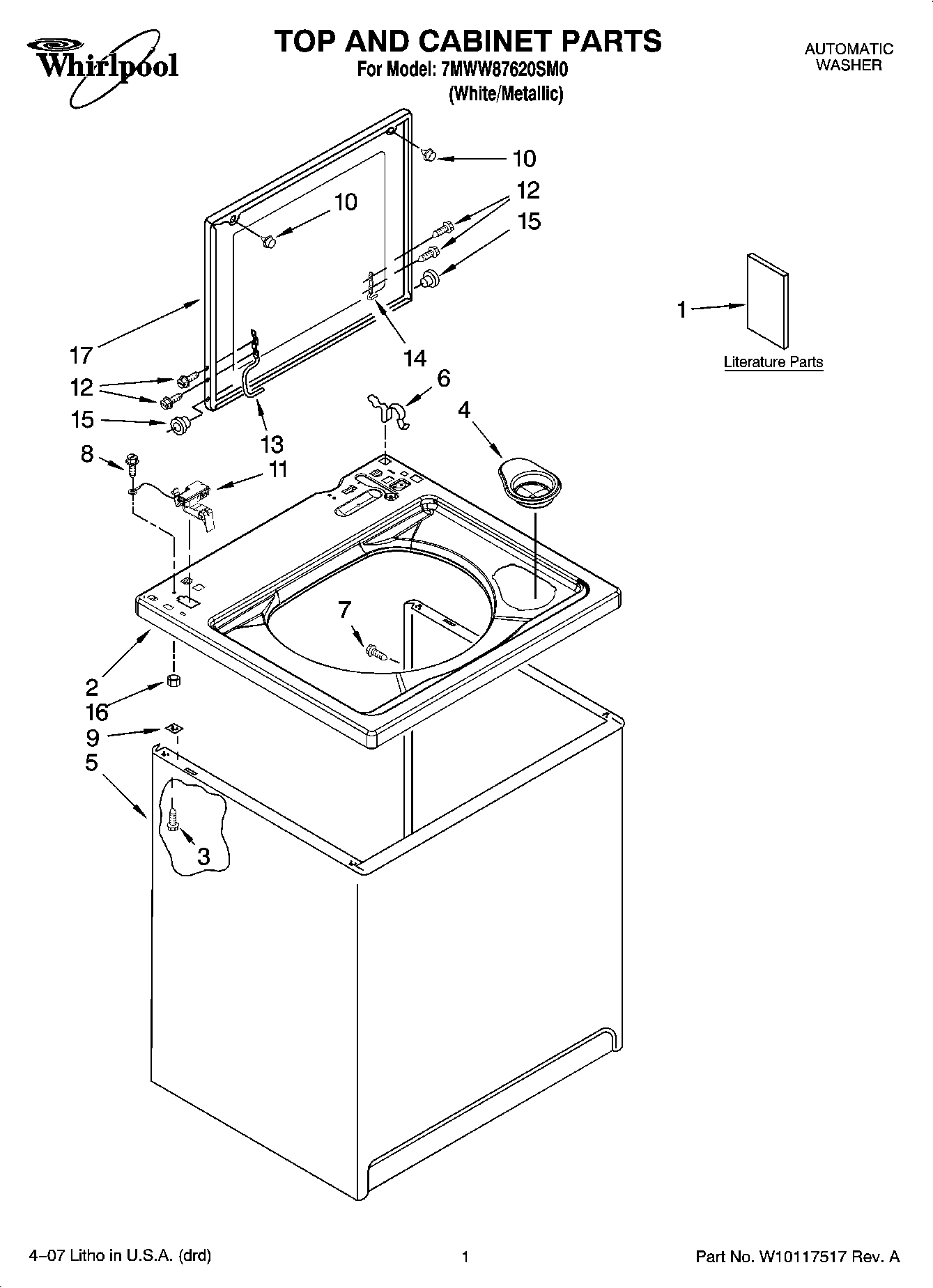

7MWW87620SM0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions
1	Feature Sheet
1	Energy Guide (Mexico)
2	Top
3	WP3390631 Whirlpool Screw
4	Dispenser, Bleach
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
9	WP62750 Whirlpool Spacer
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	WP91770 Whirlpool Hinge
15	Bearing, Lid Hinge (2)
16	W10080180 Whirlpool Nut
17	Lid
