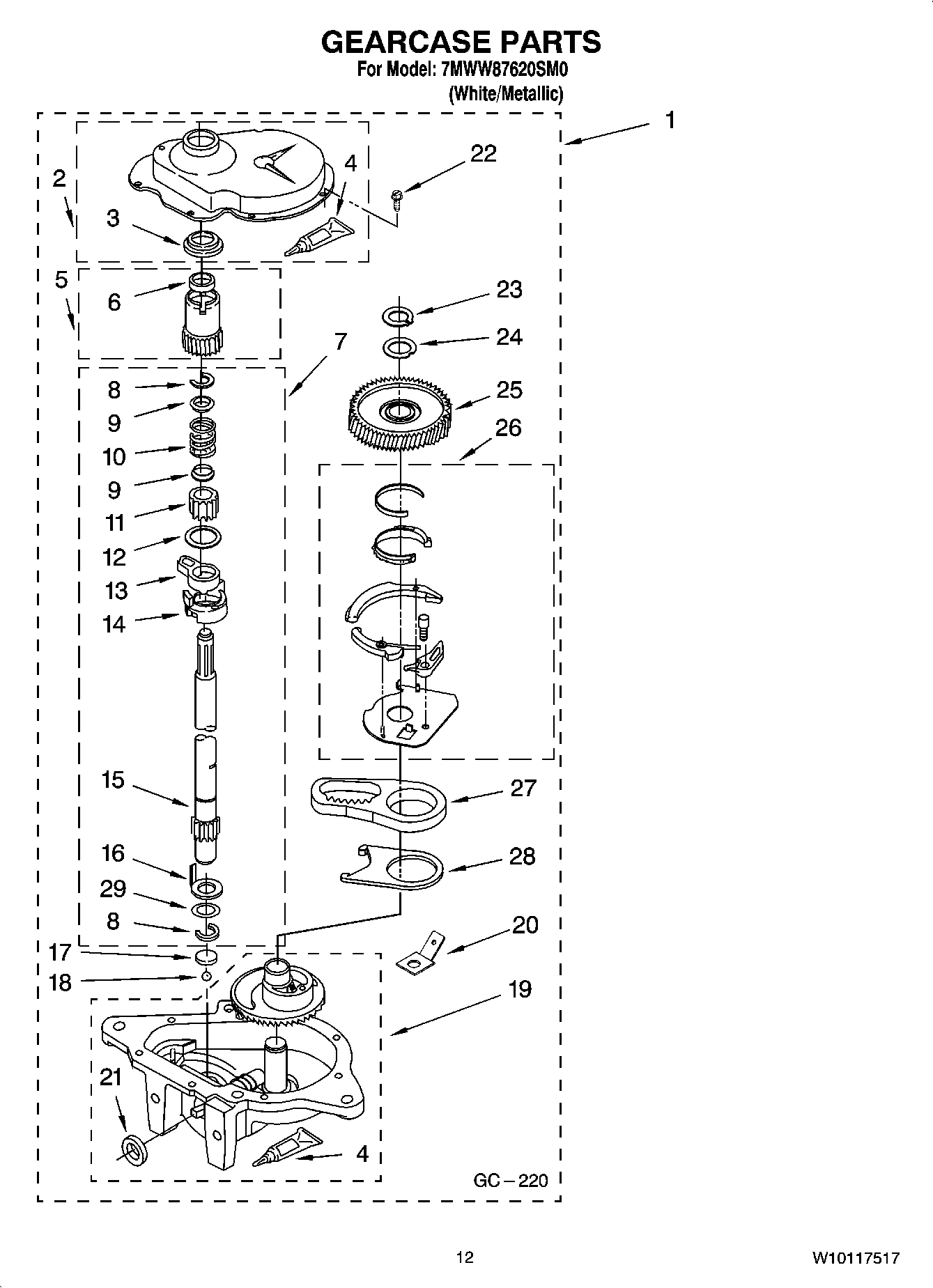

7MWW87620SM0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	ACCES
	WP285195 Whirlpool Sealer Assembly
	Drain Hose Adapter Kit
	280129A Whirlpool Break Switch
	40922 Whirlpool Drain Hose Extension Kit
	OIL
	LUBRICANT
	SEALER
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
6	WP356427 Whirlpool Shaft Seal
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	WP389387 Whirlpool Agitator Shaft
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Bottom and Pinion, Gearcase
20	BLOCK TAB, TERMINAL
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	WP3351614 Whirlpool Screw
23	Ring, Retaining
24	Washer Kit, Thrust
26	NEUTRL-PAK
27	3360629 Whirlpool Washer Gearcase Transmission
29	WP388815 Whirlpool Washer
