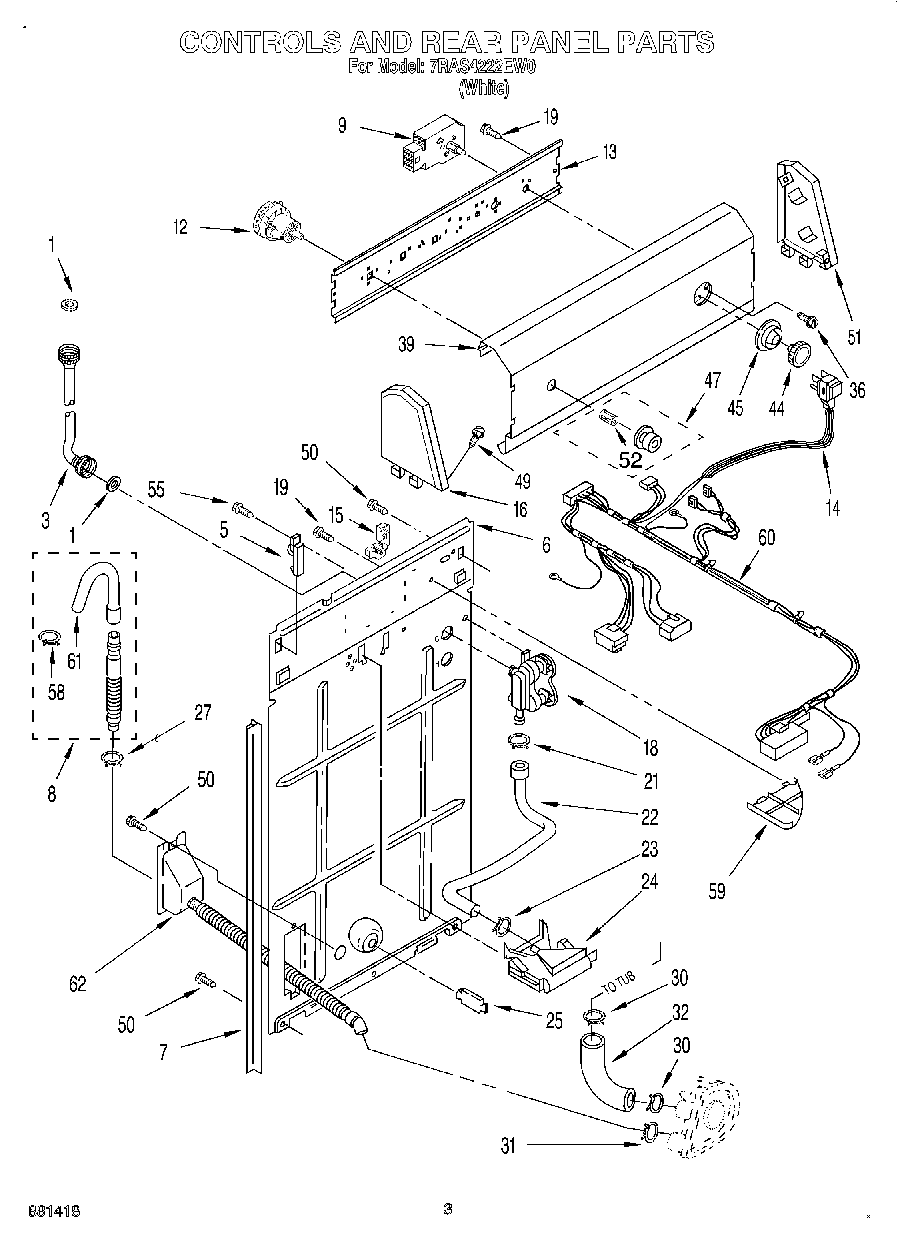

7RAS4222EW0 02 – CONTROLS & REAR PANELadmin2025-04-26T09:47:09+00:007RAS4222EW0 02 – CONTROLS & REAR PANEL
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 5 | Hinge, Console (2) |
| 6 | WP3357978 Whirlpool Rear Panel |
| 7 | WP62747 Whirlpool Pad |
| 8 | 285702 Whirlpool Extensions |
| 8 | 285666 Whirlpool Drain Hose 10' |
| 8 | 285664 Whirlpool Drain Hose |
| 9 | Timer, Control (60 Hz.) (Motor Not A Service Part) |
| 12 | W10339228 Whirlpool Washer Water Level Switch |
| 13 | WP3948608 Whirlpool Bracket |
| 14 | Cord, Power (Power Cord Only, Without Harness) |
| 15 | Strain Relief, Power Cord |
| 16 | Cap, End (L.H.) (Black) |
| 18 | 285805 Whirlpool Washer Water Inlet Valve |
| 19 | WP3351614 Whirlpool Screw |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3360977 Whirlpool Washer Tub Fill Nozzle |
| 25 | WP8519200 Whirlpool Support Assembly |
| 27 | WP356138 Whirlpool Hose Clamp |
| 30 | WP371502 Whirlpool Clamp |
| 31 | WP285655 Whirlpool Hose Clamp |
| 32 | 285871 Whirlpool Hose and Clamp |
| 36 | WP356418 Whirlpool Screw |
| 39 | Panel, Console |
| 44 | WP3362625 Whirlpool Timer Knob |
| 45 | Dial, Timer |
| 47 | Knob, Control (Black) |
| 49 | WP388326 Whirlpool Screw |
| 50 | WP3390631 Whirlpool Screw |
| 51 | Cap, End (R.H.) (Black) |
| 52 | WP688805 Whirlpool Spring Clip |
| 55 | WP308685 Whirlpool Microwave Screw |
| 58 | WP3357331 Whirlpool Clamp |
| 59 | WPL 3348424 |
| 60 | Harness, Wiring (Includes Power Cord.) (See Wiring Harness Parts Page For Details.) |
| 61 | WP3357027 Whirlpool Nozzle Assembly |
| 62 | WPW10358149 Whirlpool Hose |
