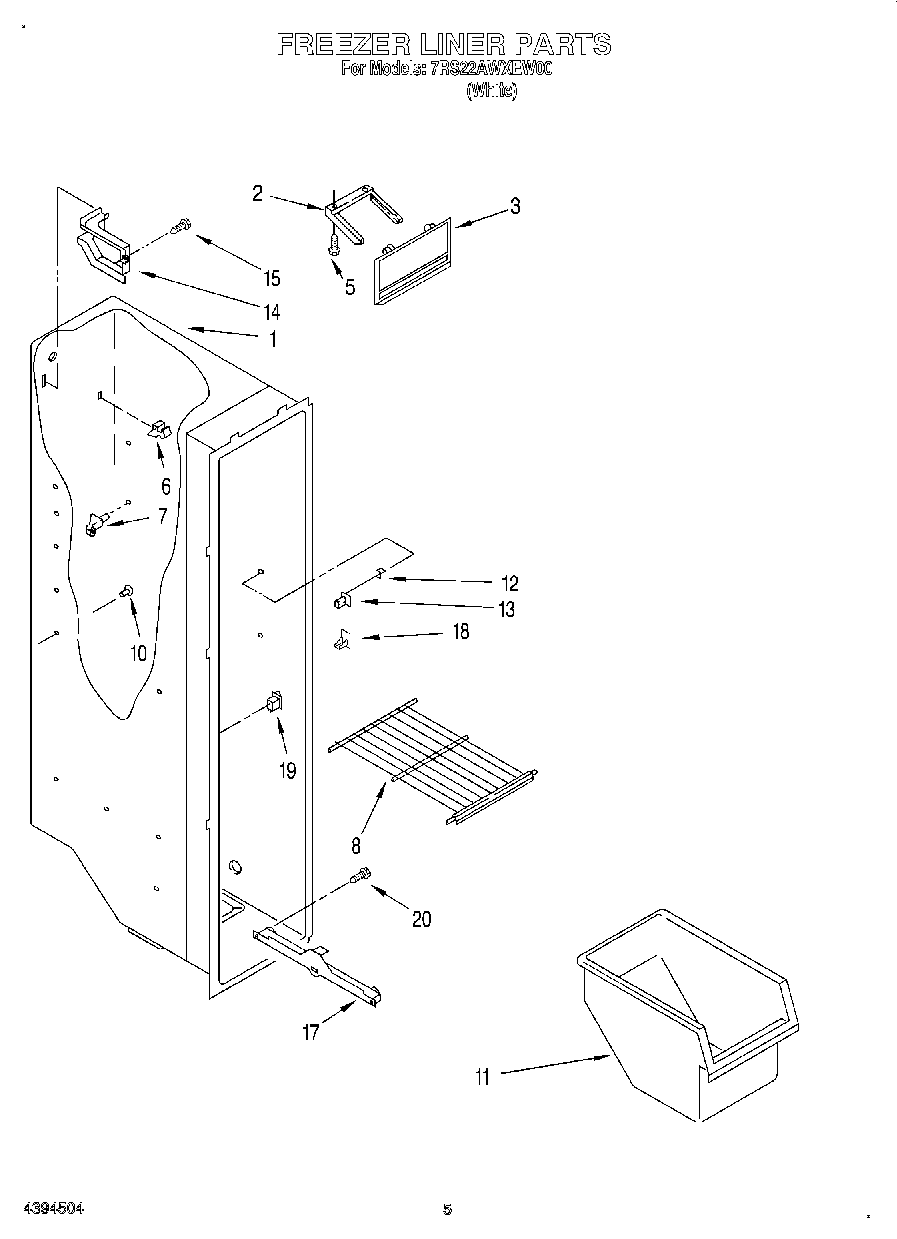

7RS22AWXEW00 04 – FREEZER LINER

7RS22AWXEW00 04 – FREEZER LINER

Written by

in

7RS22AWXEW00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8WP2174249K Whirlpool Refrigerator Wire Shelf
10Grommet
11Bin, Freezer
12Stud, Support
13Stud, Front R.S.
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side)
18Stud, Rear R.S.
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
