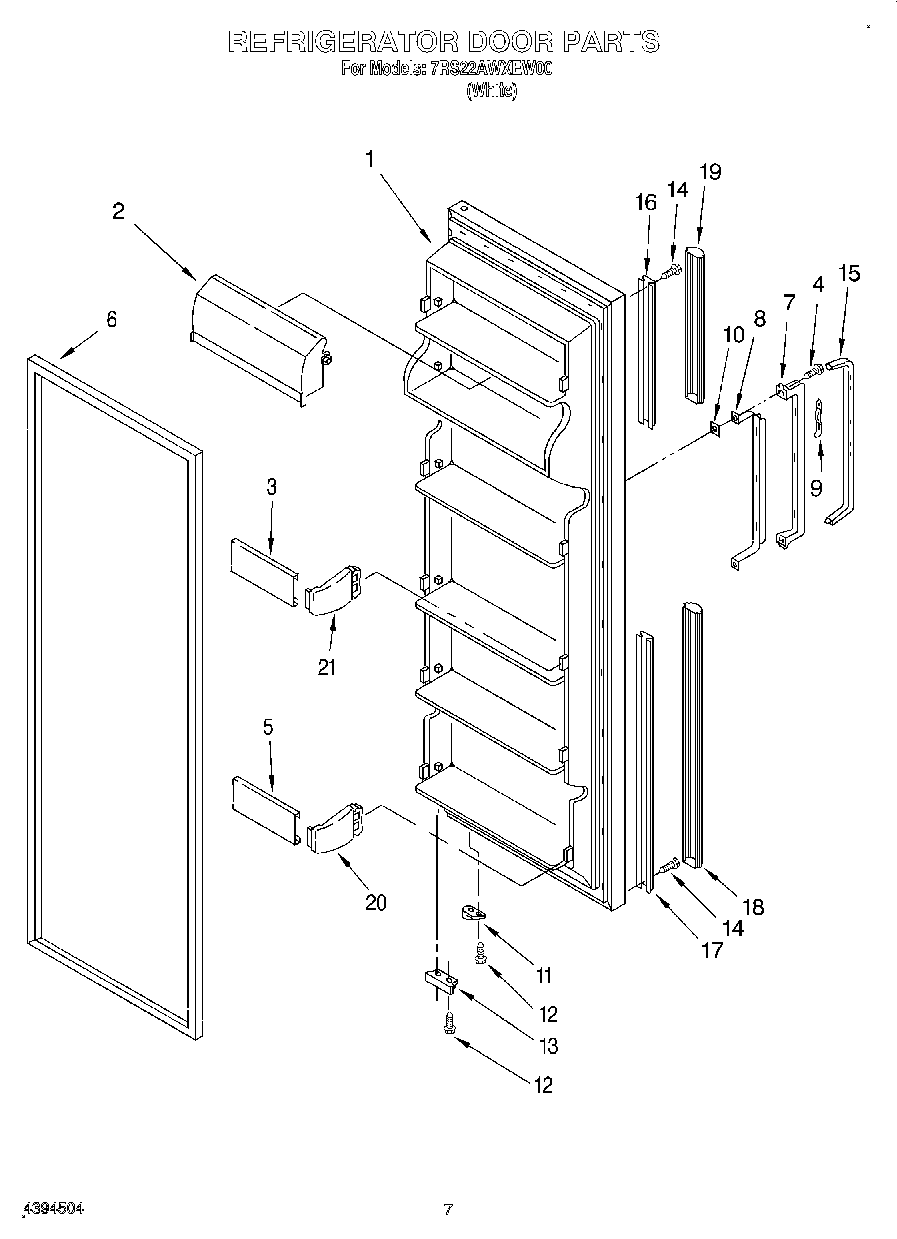

7RS22AWXEW00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.6)
2WP2256101 Whirlpool Dairy Door
3Trim, Shelf
5WP2256010 Whirlpool Door Shelf Trim
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center
8Reinforcement, Handle
9Clip, Handle
10Shim
114318165 Whirlpool Refrigerator Door Closure Cam Kit
12WP489483 Whirlpool Screw
13Bracket, Door Stop
14WP489478 Whirlpool Refrigerator Screw
15Insert, Handle
16Retainer, Top
17Retainer (Bottom)
18Extension, Bottom
19Extension, Top
20ENDCAP
21WP2195915 Whirlpool Door Shelf Support
