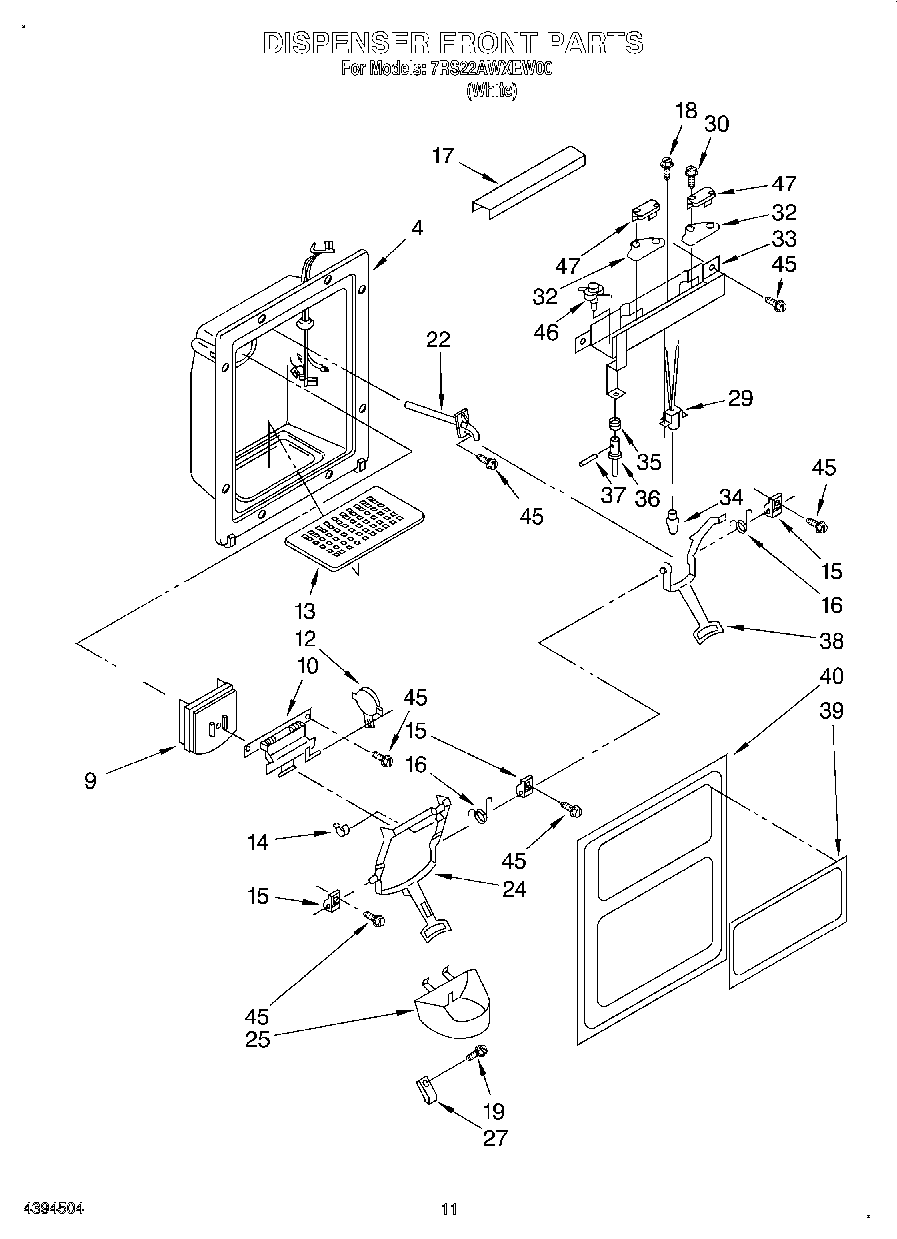

7RS22AWXEW00 08 – DISPENSER FRONT

7RS22AWXEW00 08 – DISPENSER FRONT

Written by

in

7RS22AWXEW00 08 – DISPENSER FRONT

Products

PositionProduct
4Housing, Dispenser (Not a Serviceable Part)
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (White)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Screw
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser
25Guide, Ice
27Stop, Glass (White)
29Socket, Lamp
30Screw
32Insulator, Switch (2)
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Spring, Plunger
36Plunger
37Pin, Retainer
38Lever, Water Dispenser
39Plaque, Front Cover
40Front Cover, Housing (Includes Item 39)
45WP3400906 Whirlpool Refrigerator Screw
46Switch, Light
47WP2162361 Whirlpool Switch
