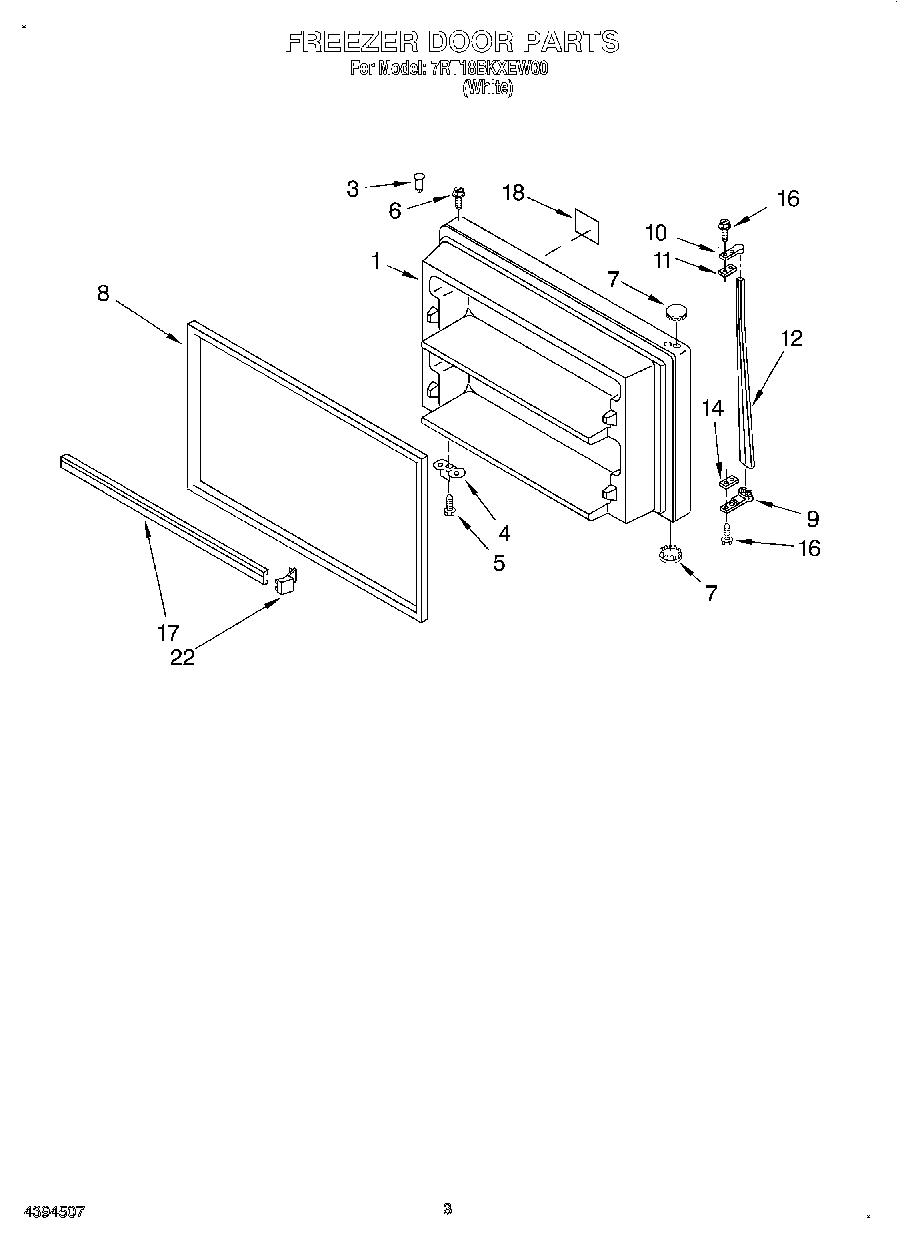

7RT18BKXEW00 02 – FREEZER DOOR

7RT18BKXEW00 02 – FREEZER DOOR

Written by

in

7RT18BKXEW00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
3WP2183003 Whirlpool Thimble
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
9819342 Whirlpool Refrigerator Endcap Kit
11Shim, Handle
12Handle, Center
14Spa
16WP488920 Whirlpool Refrigerator Screw
17TRIM-DOOR
18Nameplate
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
