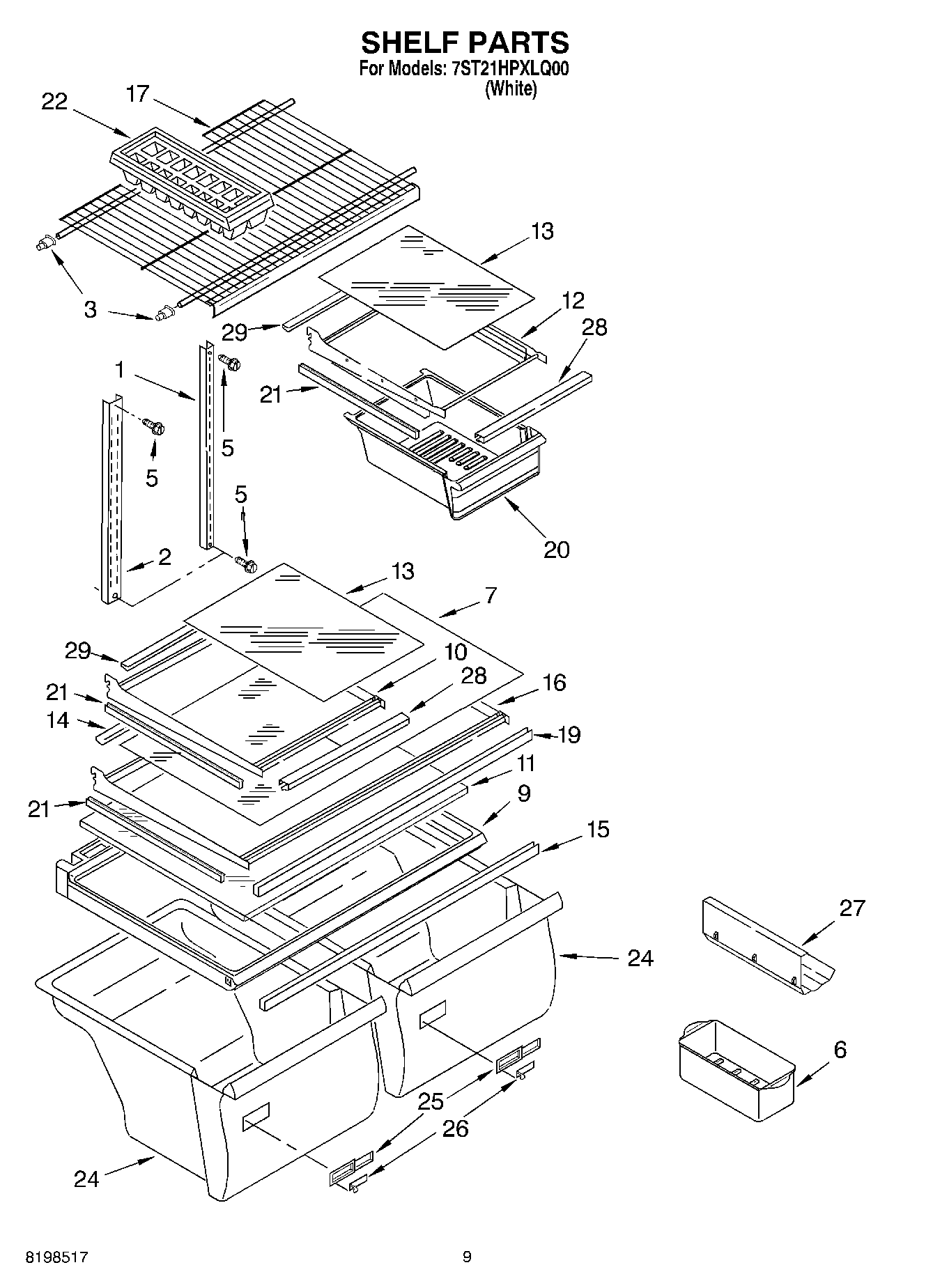

7ST21HPXLQ00 05 – SHELF PARTS – OPTIONAL PARTS

7ST21HPXLQ00 05 – SHELF PARTS – OPTIONAL PARTS

Written by

in

7ST21HPXLQ00 05 – SHELF PARTS – OPTIONAL PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder
32163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
6W10136387A Whirlpool Refrigerator Egg Container
7Glass, Full Shelf
9WP2314549 Whirlpool Refrigerator Cover
10Shelf, Cantilever
11WP2176225 Whirlpool Glass Shelf
12Pan, Shelf Cantilever
13Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
19TRIM, SHELF FRONT
20WP2218132K Whirlpool Crisper Meat Pan
21Trim, Shelf Side
22WP841180A Whirlpool Microwave Glass Turntable Tray
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2212446 Whirlpool Refrigerator Control Body
26WP2176222 Whirlpool Refrigerator Slide
27W10777924 Whirlpool Refrigerator Wine Rack
28Trim, Shelf Front
29WPL ARI17772A7
29350930 Whirlpool White Spray Paint
29WPL ARI17775A1
29WPL ARI17774A5
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
29WPL ARI17771A7
29WP2188689 Whirlpool Refrigerator Shelf Trim
29WPL ARI17773A4
29W11729596 Whirlpool Ice Maker Field Install Kit
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
294392901 Whirlpool Biscuit Spray Paint
294392899 Whirlpool Biscuit Touch-Up Paint
29350942 Whirlpool Spray Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29833938 Whirlpool Refrigerator Terminal
29876370 Whirlpool Refrigerator Insulation
29WPL 876029
29WPL 799833
29WPL 799832
29Enamel, Black (1 Qt. Uncut)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29TAPE, VINYL (3/4 X 108“)
29Torx Key
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29350956 Whirlpool Spray Assembly
