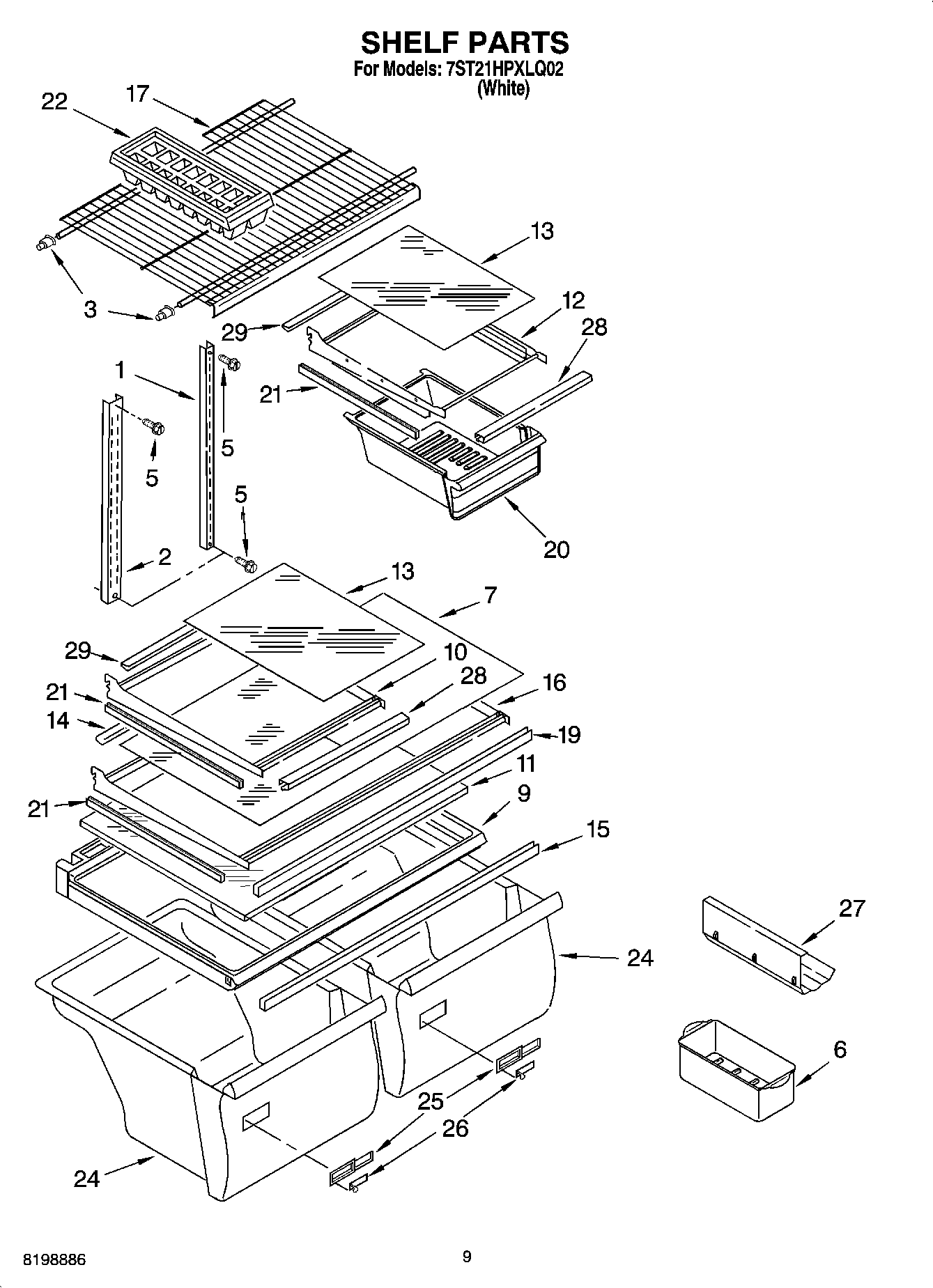

7ST21HPXLQ02 05 – SHELF PARTS, OPTIONAL PARTS

7ST21HPXLQ02 05 – SHELF PARTS, OPTIONAL PARTS

Written by

in

7ST21HPXLQ02 05 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI17796A6
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI17792A3
WPL ARI17793A2
WPL ARI17794A7
WPL ARI17795A6
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Almond (Uncut)
350930 Whirlpool White Spray Paint
606755 Whirlpool Refrigerator Bag
212643 Whirlpool Refrigerator Permagum Sealer
511873 Whirlpool Refrigerator Paint
833938 Whirlpool Refrigerator Terminal
4392901 Whirlpool Biscuit Spray Paint
876370 Whirlpool Refrigerator Insulation
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
1Shelf, Ladder (2)
2Shelf, Ladder
32163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
6W10136387A Whirlpool Refrigerator Egg Container
7Glass, Full Shelf
9WP2314549 Whirlpool Refrigerator Cover
10Shelf, Cantilever
11WP2176225 Whirlpool Glass Shelf
12Pan, Shelf Cantilever
13Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
19TRIM, SHELF FRONT
20WP2218132K Whirlpool Crisper Meat Pan
21Trim, Shelf Side
22WP841180A Whirlpool Microwave Glass Turntable Tray
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2212446 Whirlpool Refrigerator Control Body
26WP2176222 Whirlpool Refrigerator Slide
27W10777924 Whirlpool Refrigerator Wine Rack
28Trim, Shelf Front
29WP2188689 Whirlpool Refrigerator Shelf Trim
