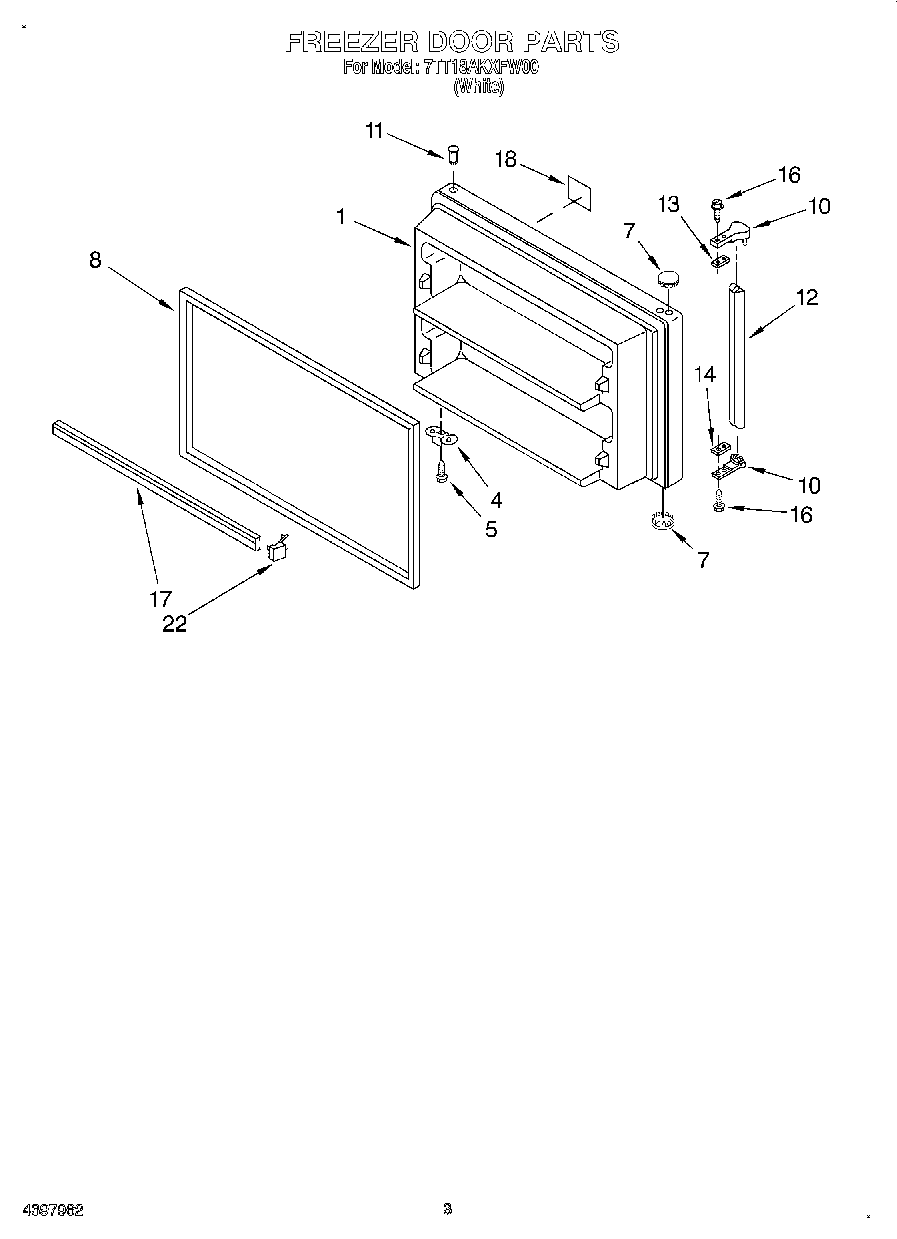

7TT18AKXFW00 02 – FREEZER DOOR

7TT18AKXFW00 02 – FREEZER DOOR

Written by

in

7TT18AKXFW00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes No.22 & No.23) (Almond)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159327 Whirlpool Refrigerator Door Gasket
10819342 Whirlpool Refrigerator Endcap Kit
11WP2183003 Whirlpool Thimble
12Handle, Center
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
182200749 Whirlpool Refrigerator Nameplate
22ENDCAP
100FeaturePak (Includes 17,22) Also See Ref. Dr. & Shelf Pgs.
