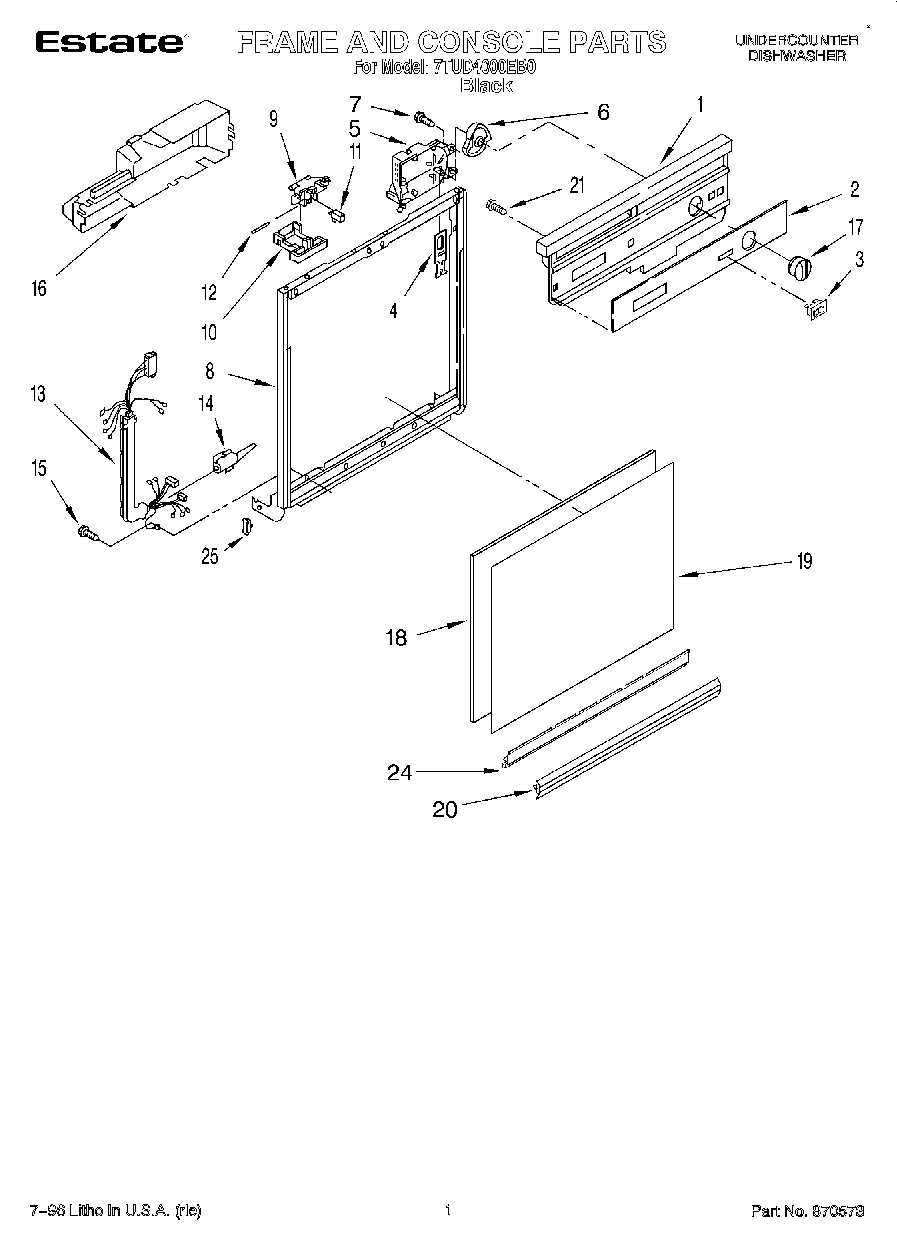

7TUD4000EB0 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Incl. Illus. 2)
2Insert, Console
3WP4314961 Whirlpool Lite Switch
4Follower, Cam
5Timer
6WP8271510 Whirlpool Dishwasher Cam
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10WP3368954 Whirlpool Dishwasher Lever
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
17Knob, Timer
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
21WP304231 Whirlpool Dishwasher Screw
24WP3374716 Whirlpool Dishwasher Channel
25WP3373234 Whirlpool Dishwasher Bearing
