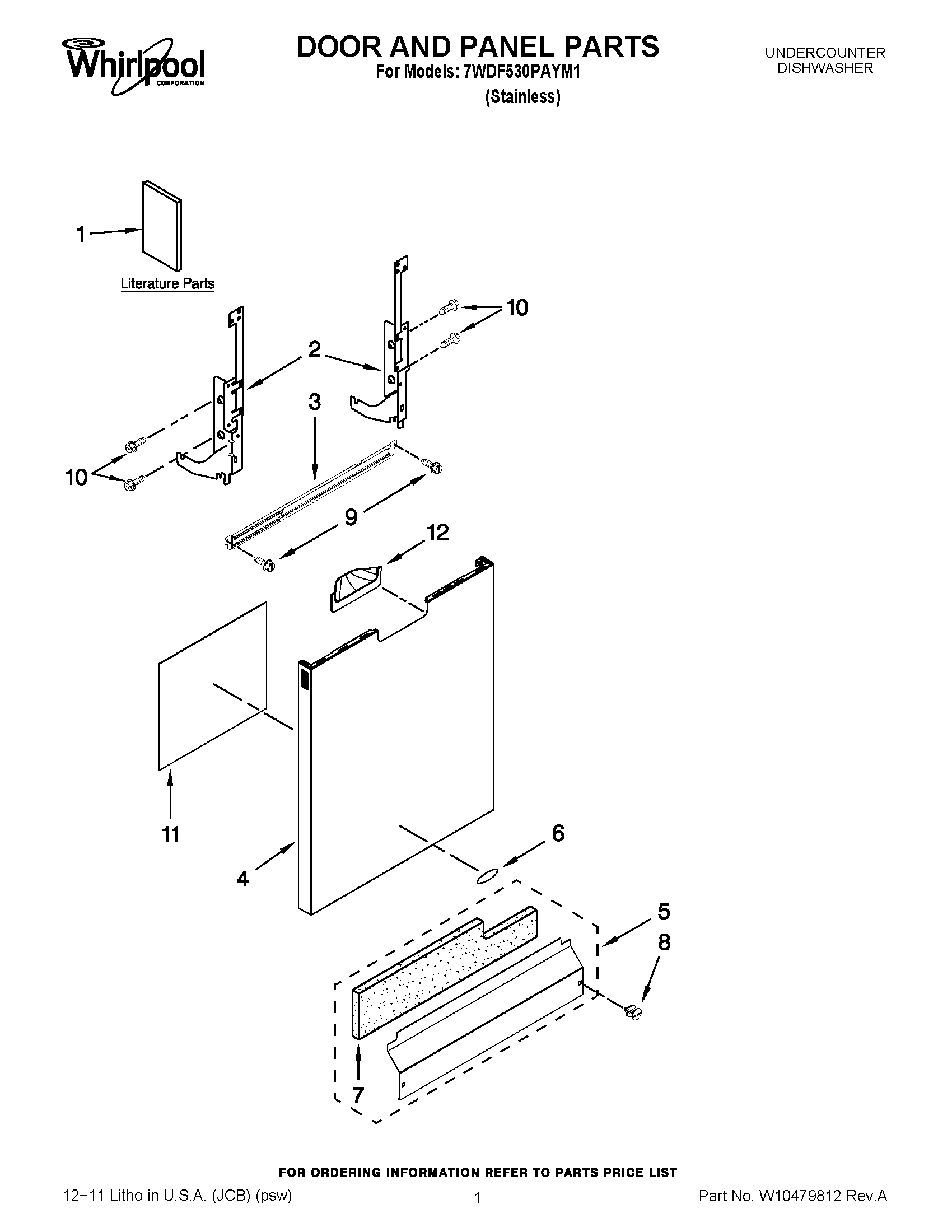

7WDF530PAYM1 01 – DOOR AND PANEL PARTS

7WDF530PAYM1 01 – DOOR AND PANEL PARTS

Written by

in

7WDF530PAYM1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, SPANISH
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (SPANISH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (INCLUDES 6 & 12)
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12POCKET ASSY
