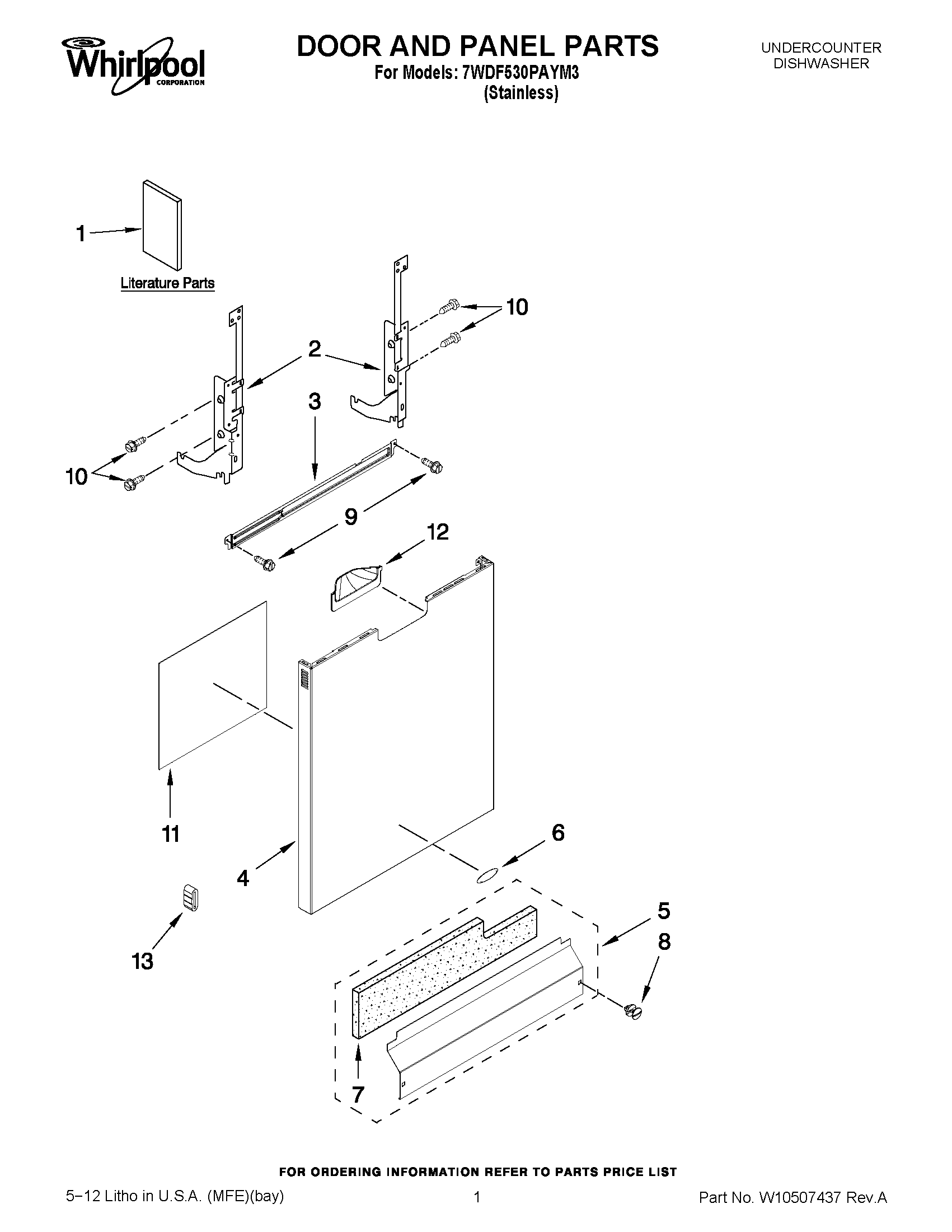

7WDF530PAYM3 01 – DOOR AND PANEL PARTS

7WDF530PAYM3 01 – DOOR AND PANEL PARTS

Written by

in

7WDF530PAYM3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, SPANISH
1TECH SHEET (SPANISH)
1INSTALLATION INSTRUCTIONS
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (INCLUDES 6 & 12)
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12POCKET ASSY
13WP8268961 Whirlpool Friction Pad
