7WDF530PAYM4 02 – CONTROL PANEL AND LATCH PARTS

7WDF530PAYM4 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

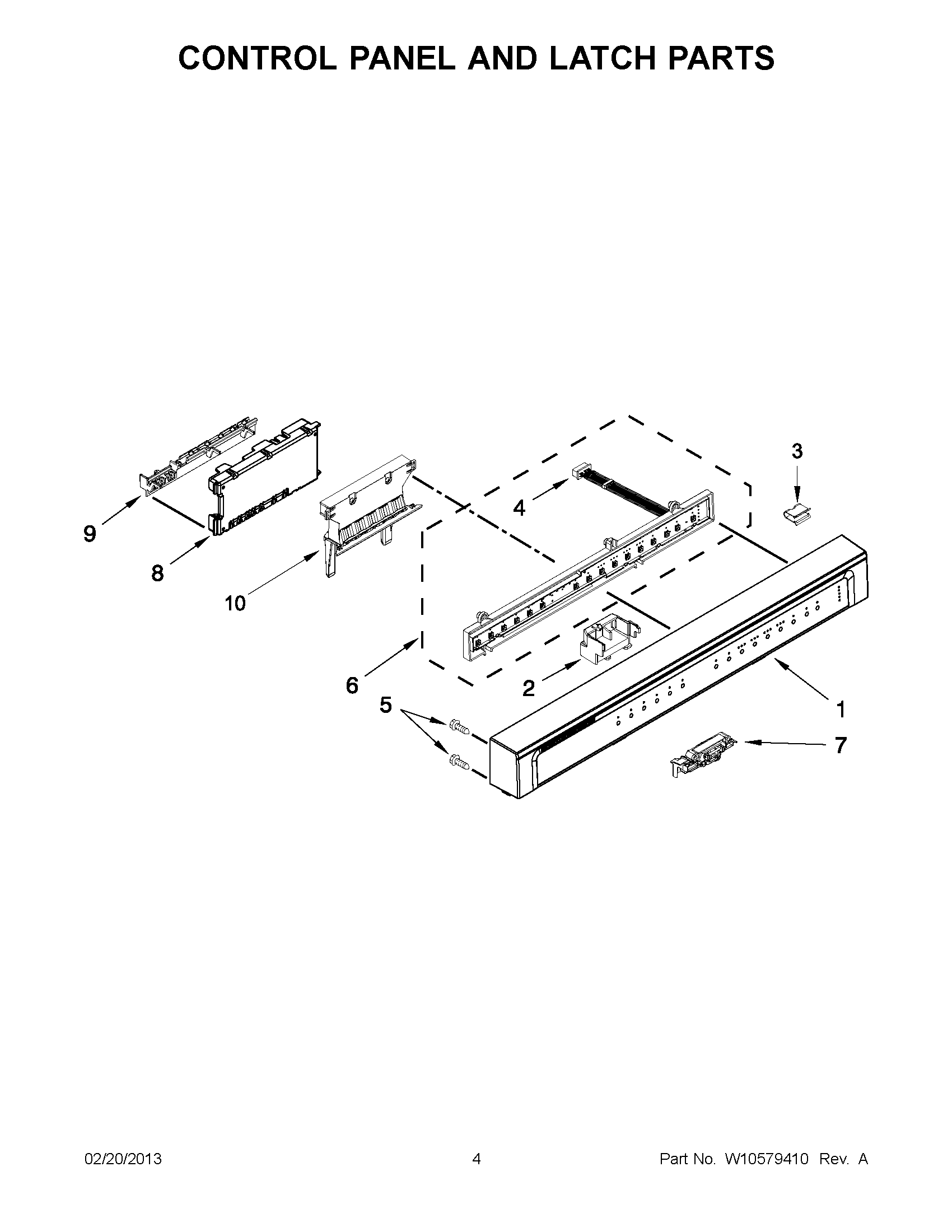

7WDF530PAYM4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350328 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W10815836 Whirlpool Dishwasher Clip
4JUMPER, WIRE
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629167 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8W10473200 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10W10475758 Whirlpool Handle
