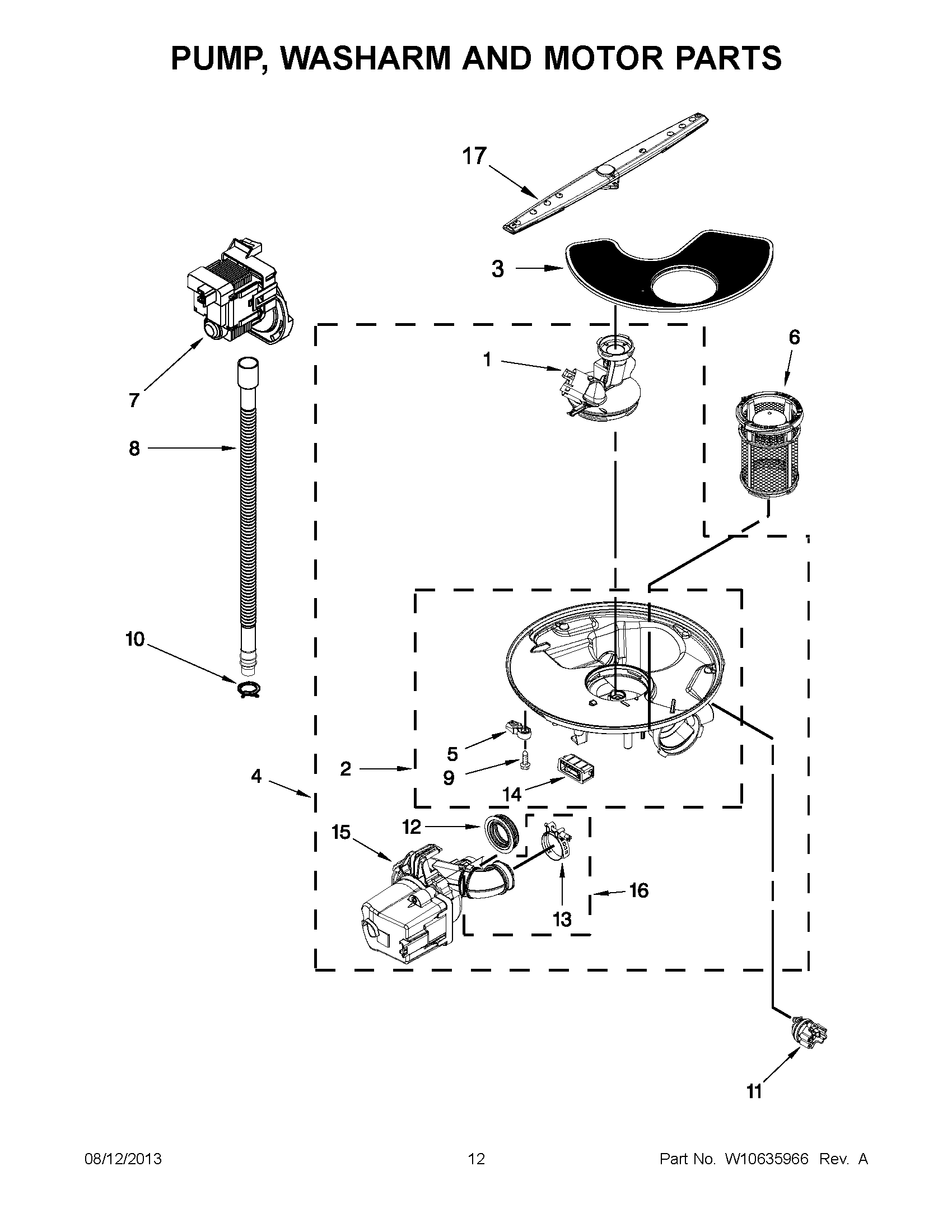

7WDF530PAYM6 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	WPW10455271 Whirlpool Cover
2	WPW10482462 Whirlpool Dishwasher Sump Assembly
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	WPW10605059 Whirlpool Dishwasher Pump and Motor
5	WPW10372113 Whirlpool Dishwasher Sump Tab
6	W10872845 Whirlpool Dishwasher Filter Cup Trap
7	WPW10348269 Whirlpool Washer Drain Pump
8	8269144A Whirlpool Dishwasher Drain Hose
9	WPW10348407 Whirlpool Dishwasher Screw
10	WP356138 Whirlpool Hose Clamp
11	WPW10705575 Whirlpool Dishwasher Sensor
12	WPW10538166 Whirlpool Grommet Pump
13	W10789434 Whirlpool Dishwasher Hose Clamp
14	W11243394 Whirlpool Dishwasher Support
15	W11133712 Whirlpool Dishwasher Pump Motor
16	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17	ARM-SPRAY
