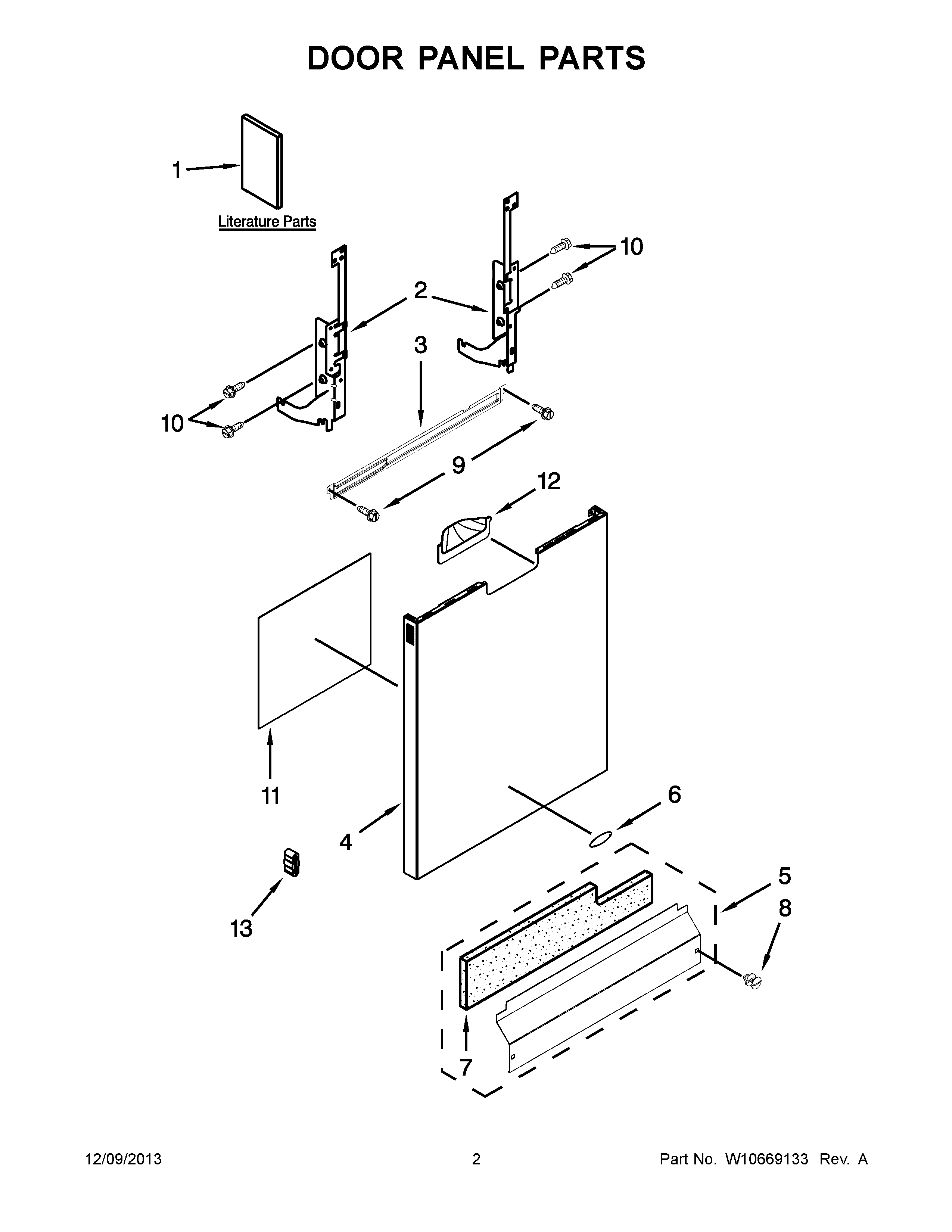

7WDF530PAYM7 02 – DOOR PANEL PARTS

7WDF530PAYM7 02 – DOOR PANEL PARTS

Written by

in

7WDF530PAYM7 02 – DOOR PANEL PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE, SPANISH
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10505606 Whirlpool Dishwasher Panel
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12POCKET ASSEMBLY (SILVER)
13WP8268961 Whirlpool Friction Pad
